- RH AL aluminium hooks for PV panels mounting systems
The new RH aluminum hooks are designed for the installation of photovoltaic systems on all types of pitched roofs with tiles covering, with and without ventilation layer.
Designed and produced in Italy, they are lightweight and resistant: their high loadability allows to reduce the number of fastenings needed. Thanks to their controlled deformation damages to the roof are avoided; in addition, the hooks are made of high-performance aluminum, a feature that makes them light to be carried on the roof and resistant to atmospheric agents.
The large base RH AL aluminium hook is suitable for pitched tiled roofs with ventilation layer of variable thickness and offers 3 to 4 adjustments.
3 or 4 available adjustments

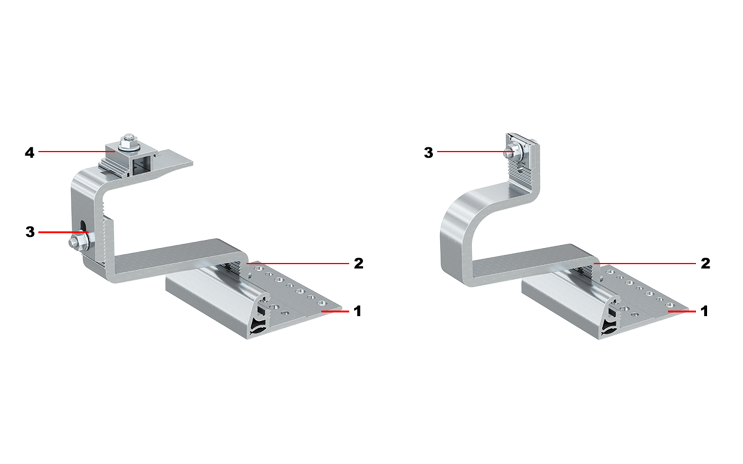

1- Horizontal base adjustment
It allows to offset the fixing point to the roof from the exit point of the hook from the tile.
2- Lower vertical adjustment
It allows to adapt the hook to different thicknesses of tiles and ventilation layer.
3- Upper vertical adjustment
It allows to record the distance of the rail from the top of the tile.
4- Higher adjustment
It allows to horizontally align the rail (available for RH 40-52 HB AL and RH 52-67 HB AL).
The thin base RH AL aluminium hook is suitable for pitched tiled roofs with ventilation layer of variable thickness and offers 2 to 3 adjustments.
3 or 4 available adjustments
1- Lower vertical adjustment
It allows to adapt the hook to different thicknesses of tiles and ventilation layer.
2- Upper vertical adjustment
It allows to record the distance of the rail from the top of the tile.
3- Higher adjustment
It allows to horizontally align the rail (available for RH 40-52 H AL e RH 52-67 H AL).
2 available adjustments
1- Vertical adjustment
It allows to record the distance of the rail from the top of the tile.
2- Higher adjustment
It allows to horizontally align the rail.
We gathered the products and main applications of photovoltaic panel installation systems into one document.
LAB AL landscape angle bracket
The landscape angle bracket LAB allows to customize the PV panels layout: by adding the bracket to hooks with vertical adjustment, it is possible to provide landscape oriented installation.
The bracket design perfectly fits the hook shape and helps keeping the screw in position while fastening the nut.
SOLARPANEL-FIX is an Online module of the FiXperience Suite for the design of mounting systems for photovoltaic panels: it supports professionals in the design of the photovoltaic substructure through a clear and logical flow.
The software allows to automatically calculate the actions of snow and wind loads through the geolocation of the construction site, according to the requirements of the European Standard EN 1991 (Eurocode 1). In addition, it allows to download the bill of materials to create the substructure, the installation plan and a technical report. The latter outlines the structural checks of the system parts, according to the European Standards EN 1993 (Eurocode 3), EN 1999 (Eurocode 9) and according to fischer specifications.
