Epoxy mortar FIS EB II

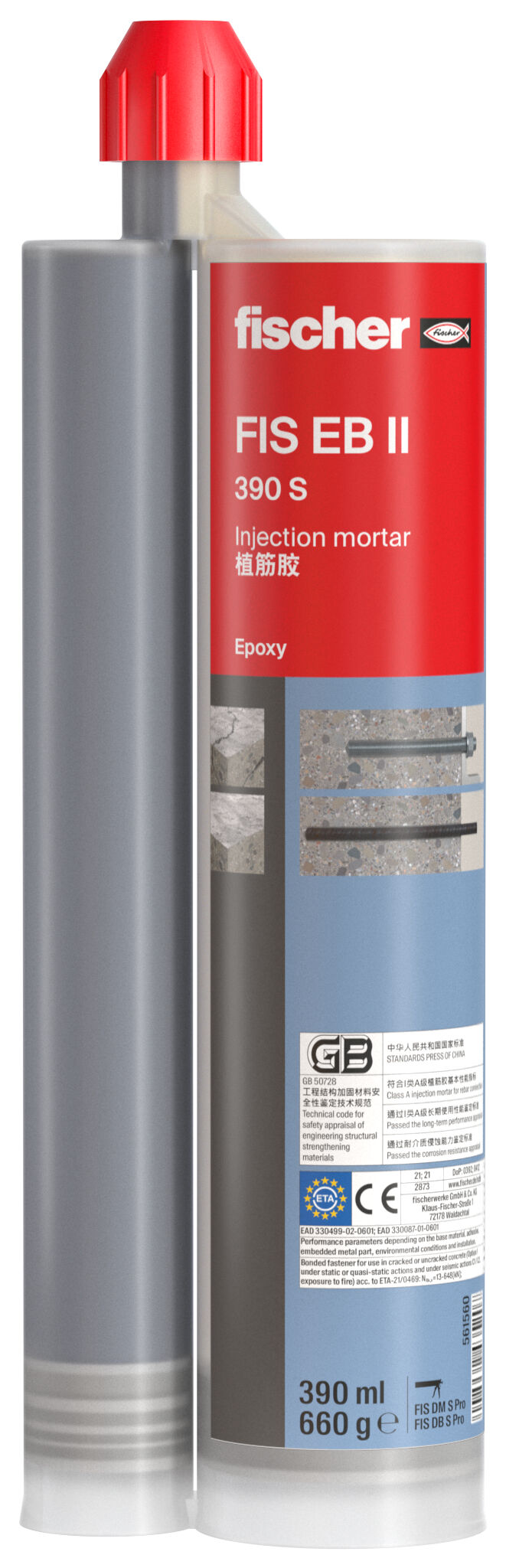

  • Product Picture: "fischer Epoxy mortar FIS EB II 390 S"
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Art.-No. 561560

      fischer Epoxy mortar FIS EB II 390 S

      Product Variant
      Download of image data
      Top Features
      • ETA assessments for anchorings in cracked concrete and for post-installed rebar connections
      • Use in earthquake regions due to the seismic approval for performance category C1 and C2
      • For fixing heavy loads indoors and outdoors
      • Variable anchoring depths

      Your advantages / Product description

      The basic epoxy mortar for applications in concrete
      Advantages
      • The injection mortar FIS EB II has ETA assessments for anchorings in cracked concrete and for post-installed rebar connections.
      • Due to the seismic approval for performance category C1 and C2, FIS EB II can be safely used in earthquake regions.
      • FIS EB II is the reliable system for fixing heavy loads indoors and outdoors.
      • Due to the variable anchoring depths, the epoxy resin mortar is very versatile.
      • The long processing time of FIS EB II is particularly suitable for applications in large and deep drillholes.
      The fischer injection mortar FIS EB II is an economical epoxy resin mortar for standard applications in cracked and and non-cracked concrete and for post-installed rebar connections. The epoxy mortar is also approved for the seismic performance categories C1 and C2 and thus for application in earthquake regions. FIS EB II is suitable for fixing heavy loads both indoor and outdoor. The FIS EB II can be installed with the approved system components fischer threaded rods FIS A / RGM or with reinforcement bars. The FIS EB II can be used in dry or wet concrete, as well as in water-filled drill holes. This makes the epoxy resin mortar a secure and reliable system under all work site conditions.

      Application and approval

      Applications
      • Heavy steel constructions
      • Consoles
      • Silo installations
      • Tall shelving
      • Post-installed rebar connections
      Building materials
      Approved for anchorings in:
      • Concrete C20/25 to C50/60, cracked and non-cracked
      You can find detailed information on building materials in the approval document.
      Approval
      • ETA-21/0470
      • ETA-21/0469
      • DoP No. 0296
      • DoP No. 0340

      Assembly instruction

      Functionality
      • The epoxy mortar FIS EB II in combination with the threaded rod FIS A and RG M is suitable for pre-positioned and push-through installation.
      • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
      • The mortar is injected bubble-free from the drill hole base.
      • The mortar bonds the entire surface of the threaded rod with the drill hole wall and seals off the drill hole.
      • The threaded rod is set manually by slightly rotating it until it reaches the drill hole base.
      • During push-through installation, the annular gap between the threaded rod and the attachment is filled with FIS EB II.
      Installation in concrete with FIS EB II and FIS A / RG M
      1 / 8
      • 1
        Installation in concrete with FIS EB II and FIS A / RG M
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8

      Technical Data

      ETA-approval
      Language on label EN, ZH
      Scale unit 190
      Contents 1 x Cartridge 390 ml
      2 x Static mixer FIS MR Plus
      Amount 1 pcs.
      GTIN (EAN-Code) 4048962435207

      Documents for Downloading

      • ETAs and DoPs
      • Safety data sheets
      • Technical documents
      • Sales materials
      ETA Certification Document
      pdf, ETA-21/0470
      European Technical Assessment for rebar connection with fischer injection system FIS EB II - Systems for post-installed rebar connections with mortar
      Created on 03/03/2022
      DOP - Declaration of Performance
      pdf, DoP No. 0296
      Declaration of Performance for fischer Injection system FIS EB II (Mortar for post-installed rebar connections)
      Created on 03/17/2022
      ETA Certification Document
      pdf, ETA-21/0469
      European Technical Assessment for fischer injection system FIS EB II - Bonded fasteners and bonded expansion fasteners for use in concrete
      Created on 07/25/2023
      DOP - Declaration of Performance
      pdf, DoP No. 0340
      Declaration of Performance for fischer injection system FIS EB II (Bonded fastener for use in concrete)
      Created on 08/15/2023
