Injection mortar FIS V Plus

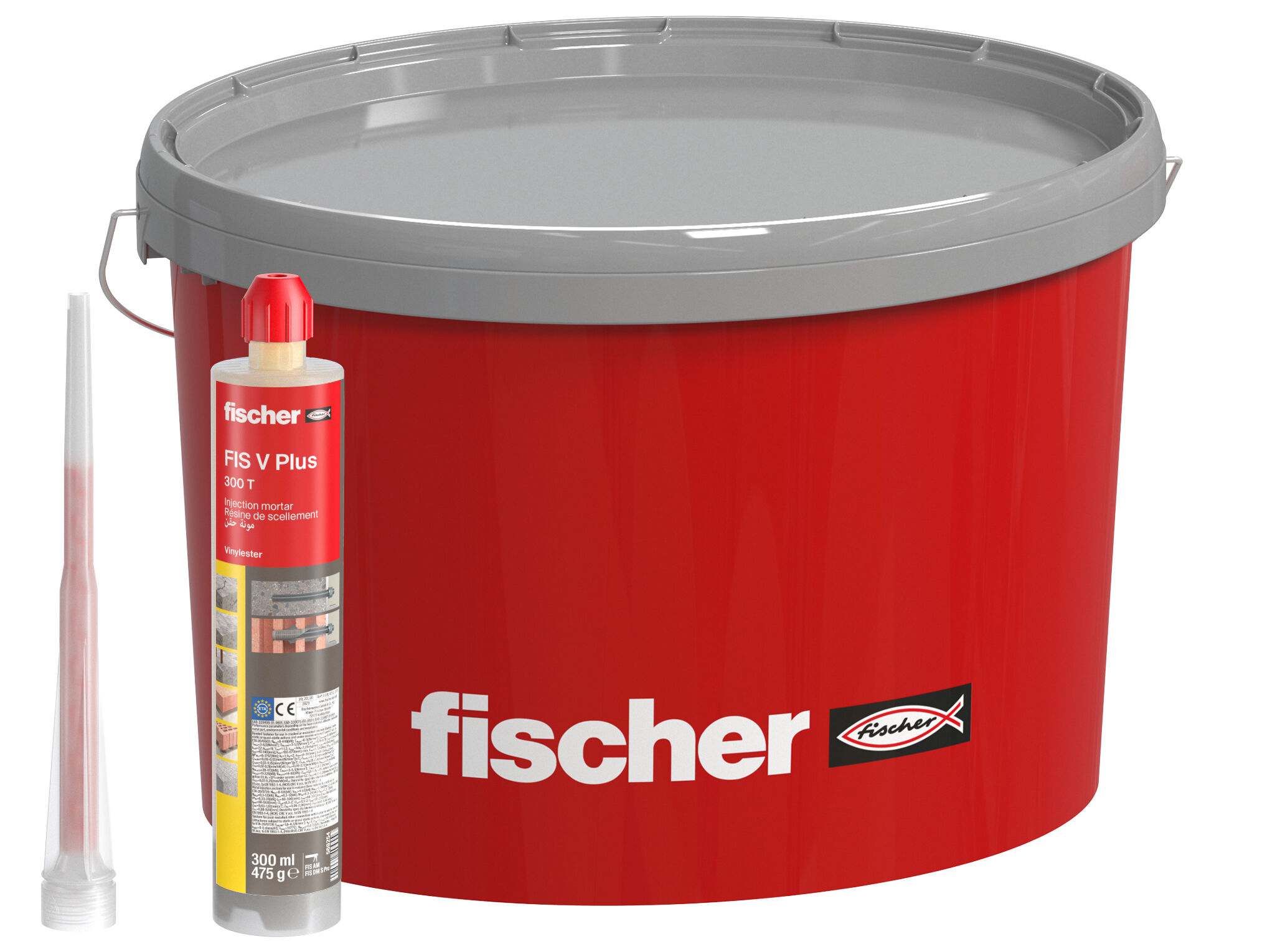

  • Product Picture: "fischer Injection mortar FIS V Plus 300 T in bucket"
  • Product Picture: "fischer Injection mortar FIS V Plus 300 T in bucket"
  • Application Picture
  • Application Picture
  • Youtube VideoYoutube VideoYoutube Video
    • Youtube VideoYoutube VideoYoutube Video
    • Product Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Art.-No. 563288

      fischer Injection mortar FIS V Plus 300 T in bucket

      Product Variant
      Download of image data
      Top Features
      • ETA approval for post-installed rebar connections.
      • Injection mortar system with approval for all relevant building materials.
      • Maximum load absorption for much greater security.
      • Approved service life of 100 years.
      • Application in water-filled boreholes.

      Your advantages / Product description

      The powerful universal mortar for concrete and masonry.
      Advantages
      • The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, ma­sonry and for special applications.
      • The ETA assessment for a service life of 100 years offers permanent safety for all applications.
      • The approved use in water-filled drill holes enables a wide range of applica­tions, even under harsh environmental conditions.
      • FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.
      • The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
      • The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexi­bility of the system and thus allows for a broad range of applications.
      The fischer high-performance mortar FIS V Plus is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS Plus Low Speed enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW Plus High Speed enables swift work progress even at low temperatures.
      Youtube VideoYoutube VideoYoutube Video

      Application and approval

      Applications
      • Steelwork constructions
      • Timber constructions
      • Guard rails
      • Façades
      • Staircases
      • Steel brackets
      • Machines
      • Masts
      • Awnings
      • Canopies
      • Gates
      • Consoles
      • Pipelines
      • Gratings
      • Satellite antennas
      Building materials
      Approved for anchorings in:
      • Concrete C20/25 to C50/60, cracked and non-cracked
      • Hollow blocks made from lightweight concrete
      • Hollow blocks made from concrete
      • Vertically perforated brick
      • Perforated sand-lime brick
      • Solid sand-lime brick
      • Aerated concrete
      • Solid brick
      Approved for:
      • Rebar connections
      • Remedial wall tie VBS 8
      • Weather facing reconstruction system FWS II
      • Stand-off installation TherMax
      You can find detailed information on building materials in the approval document.
      Approval
      • ETA-20/0603
      • ETA-20/0728
      • ETA-20/0729
      • DoP No. 0231
      • DoP No. 0331
      • DoP No. 0354
      • ESR-2786
      • 20046/15515
      • 22044-enshort

      Assembly instruction

      Functionality
      • FIS V Plus is a 2-component injection mortar based on a vinyl ester hybrid concept.
      • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
      • The mortar is extruded bubble free from the drill hole base.
      • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
      • The injection cartridges are quick and easy to use with the fischer dispensers.
      • Partially used cartridges can be reused by changing the static mixer.
      Show the assembly instruction as pdf file
      Installation in concrete with FIS V Plus and FIS A / RG M
      1 / 9
      • 1
        Installation in concrete with FIS V Plus and FIS A / RG M
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      Installation in concrete with FIS V Plus and RG M I
      1 / 9
      • 1
        Installation in concrete with FIS V Plus and RG M I
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      Installation in solid brick with FIS V Plus and FIS A
      1 / 7
      • 1
        Installation in solid brick with FIS V Plus and FIS A
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      Installation in hollow blocks with FIS V Plus and FIS HK + FIS A
      1 / 5
      • 1
        Installation in hollow blocks with FIS V Plus and FIS HK + FIS A
      • 2
      • 3
      • 4
      • 5
      Installation in aerated concrete with FIS V Plus and FIS A / RG M
      1 / 7
      • 1
        Installation in aerated concrete with FIS V Plus and FIS A / RG M
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      Installation in undercut drill hole in aerated concrete with FIS V Plus and FIS A / RG M
      1 / 6
      • 1
        Installation in undercut drill hole in aerated concrete with FIS V Plus and FIS A / RG M
      • 2
      • 3
      • 4
      • 5
      • 6

      Technical Data

      DIBt-approval
      ETA-approval
      Language on label AR, EN, FR
      Scale unit 150
      Contents 20 x Cartridge 300 ml
      40 x Static mixer FIS MR Plus
      Amount 20 pcs.
      GTIN (EAN-Code) 4048962452662

      Documents for Downloading

      • ETAs and DoPs
      • Approvals and Certificates
      • Safety data sheets
      • Technical documents
      • Sales materials
      ETA Certification Document
      pdf, ETA-20/0603
      European Technical Assessment for Injection System fischer FIS V Plus - Bonded anchor for use in concrete
      Created on 11/13/2020
      DOP - Declaration of Performance
      pdf, DoP No. 0231
      Declaration of Performance for fischer injection system FIS V Plus (Bonded fastener for use in concrete)
      Created on 11/27/2020
      ETA Certification Document
      pdf, ETA-20/0728
      European Technical Assessment for Rebar connection with fischer injection system FIS V Plus - Systems for post-installed rebar connections with mortar
      Created on 12/16/2022
      DOP - Declaration of Performance
      pdf, DoP No. 0331
      Declaration of Performance for fischer injection system FIS V Plus (Mortar for post-installed rebar connections)
      Created on 01/02/2023
      ETA Certification Document
      pdf, ETA-20/0729
      European Technical Assessment for injection System fischer FIS V Plus for masonry - Metal injection anchors for use in masonry
      Created on 02/03/2025
      DOP - Declaration of Performance
      pdf, DoP No. 0354
      Declaration of Performance for fischer injection system FIS V Plus (Metal injection anchors for use in masonry)
      Created on 11/14/2023
