Art.-No. 573804

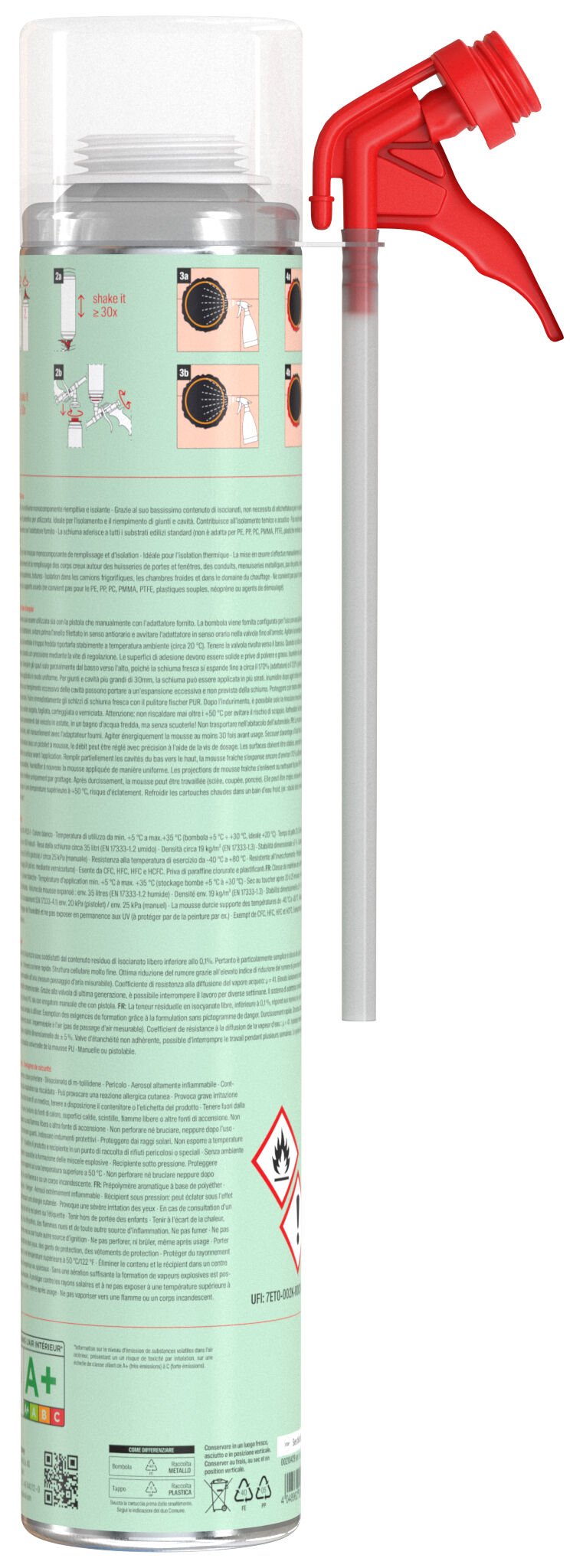

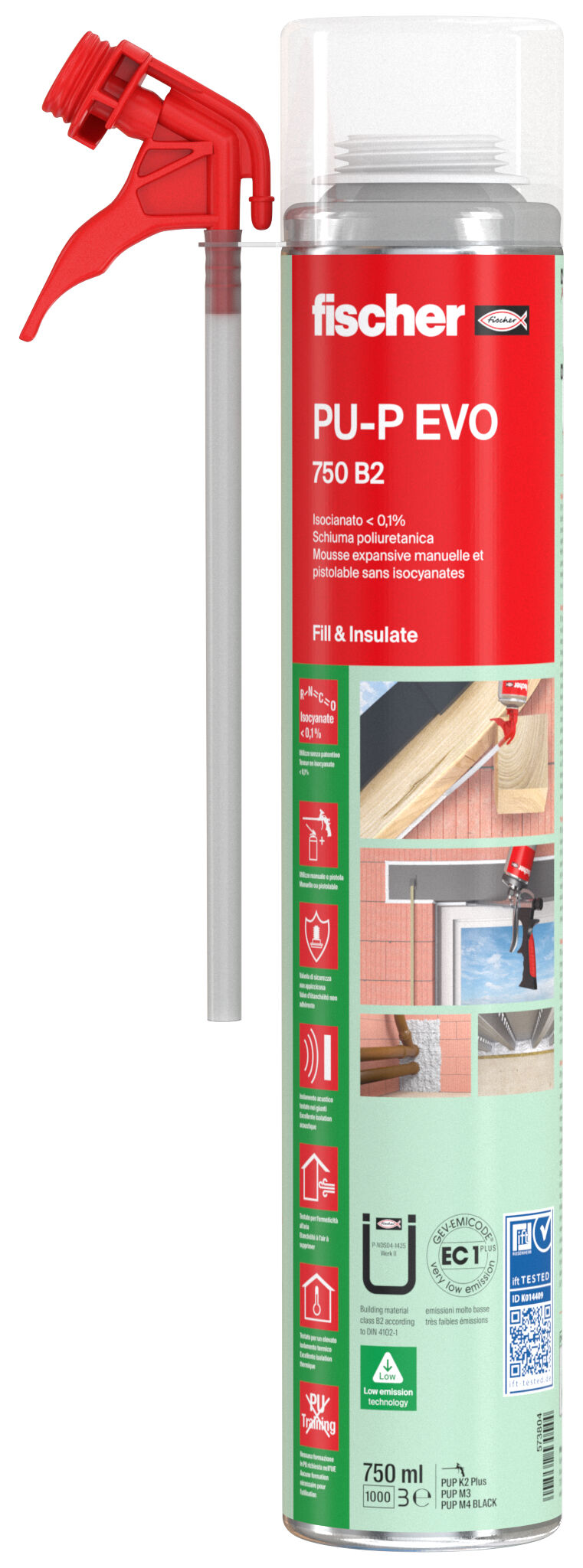

fischer low monomer PU foam PU-P EVO 750 B2

Top Features
  • Low post-expansion with a dimensional stability of ± 5%.
  • Less than 0.1% isocyanate content.
  • No PU safety training required.
  • Rated joint sound reduction index of 64 dB.
  • Impermeable to air (no measurable air leakage)
  • High thermal insulation
  • Non-stick safety valve
  • Can be used with the attached adapter or separate dispenser gun

Your advantages / Product description

The low-monomer filling and insulating foam with clever combination adapter
Advantages
  • No safety training requirement due to low-hazard formulation.
  • High safety standards are met thanks to the very low content of monomeric isocyanates of < 0.1%.
  • The EMICODE® EC1PLUS is the premium class in terms of the emission behavior of volatile organic compounds.
  • The very fine-pored cell structure and high flexibility guarantee the best sound and thermal insulation properties.
  • No time-consuming reworking thanks to its excellent dimensional stability of ± 5%.
  • The Pageris safety valve prevents sticking and guarantees a shelf life of 18 months.
  • Combi-adapter system: Can be used with the enclosed adapter or the separate foam gun.
The low-monomer filling and insulating foam PU-P EVO 750 B2 is the low-emission alternative to conventional PU foams. Its unique formulation meets high safety standards thanks to its residual free isocyanate content of less than 0.1% and saves commercial users from having to undergo mandatory PU safety training from August 2023. The white, fine-cell EVO foam is ideal for typical installation work, filling joints and insulating cavities. PU-P EVO 750 B2 adheres perfectly to all common building materials and many plastics and has excellent sound insulation and insulating properties. The high yield of up to 35 liters (EN 17333-1) reduces the number of can changes and ensures maximum cost-effectiveness. Thanks to its high dimensional stability of ± 5%, there is no need for time-consuming reworking. With its high-quality combi-adapter, it can be used both with and without an additional foam dispenser. The non-stick safety valve allows work to be interrupted for several days.

Application and approval

Applications
  • Insulating and filling window connection joints, window sills and roller shutter boxes
  • Insulating and filling in roof extensions and drywall construction
  • Insulating and filling prefabricated elements such as wall connections, wall openings and cavities
  • Insulating and filling pipe openings and ventilation ducts
Building materials
  • Concrete
  • Anodized layer
  • Metals
  • Masonry
  • Concrete
  • Wood
  • Sand-lime brick
  • Plaster
  • Plasterboard
  • Stone
  • Aerated concrete
  • Plastics (not on PP, PE, Teflon, silicone)
You can find detailed information on building materials in the approval document.
Approval
  • 15557/03.06.13
  • EPD-FEI-20220108-IBG1-EN

Assembly instruction

Functionality
  • 1c PU-low monomer foam
  • Building material class B2
  • Color white
  • Processing temperature ambient: +5 °C to +35 °C (can temperature: +5 °C to +30 °C)
  • Tack-free in 20 to 25 minutes
  • Can be cut after approx. 100 minutes
  • Fully cured and loadable after approx. 24 hours
  • Dimensional stability ±5 %
  • Temperature resistant from -40 °C to +80 °C
  • Joint sound insulation ≥ 62 (-1; -5) dB
  • Thermal conductivity of 36 mW/mK
  • Yield of up to 35 liters (EN 17333-1)
  • Fresh foam splashes can be removed immediately with fischer PUR cleaner

Technical Data

Language on label FR, IT
Contents 750 ml
Max. foam yield (EN 17333-1) 35 l
Colour white
Packaging Aerosol can
Amount 1 pcs.
GTIN (EAN-Code) 4048962530544

Documents for Downloading

  • Approvals and Certificates
  • Sustainability
  • Safety data sheets
  • Technical documents
ift - Classification report
Created on 12/11/2023
Certificate
pdf, 15557/03.06.13
GEV-EMICODE - PU-P EVO 500/750 B2
Valid from 09/19/2022
to 09/19/2027
