Cable harness SHA II

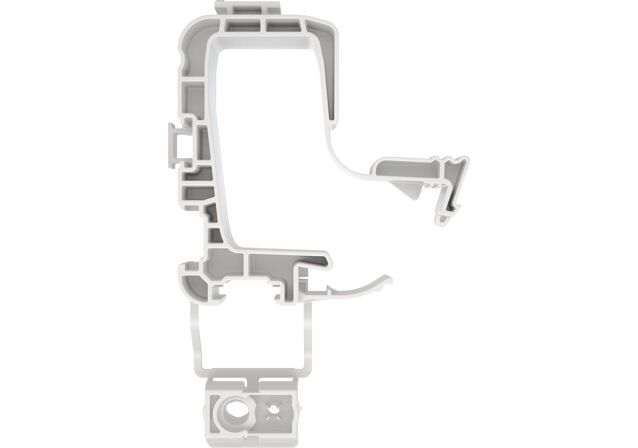

  • Product Picture: "fischer cable harness SHA 40 II Direct fastening"

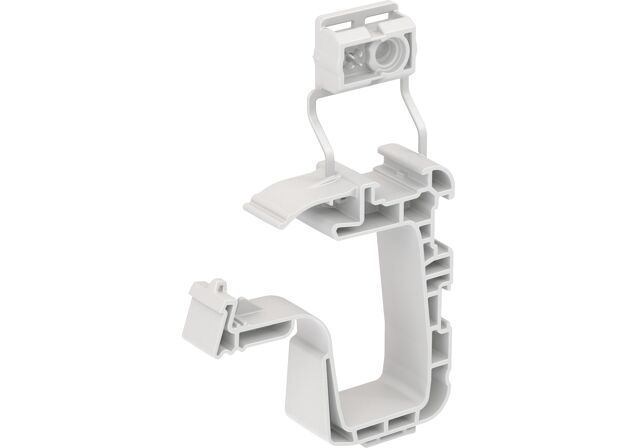

  • Product Picture: "fischer cable harness SHA 40 II Direct fastening"

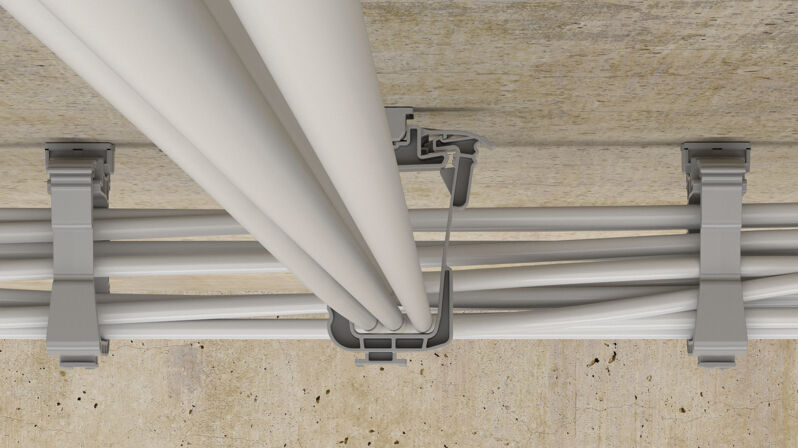

  • Application Picture

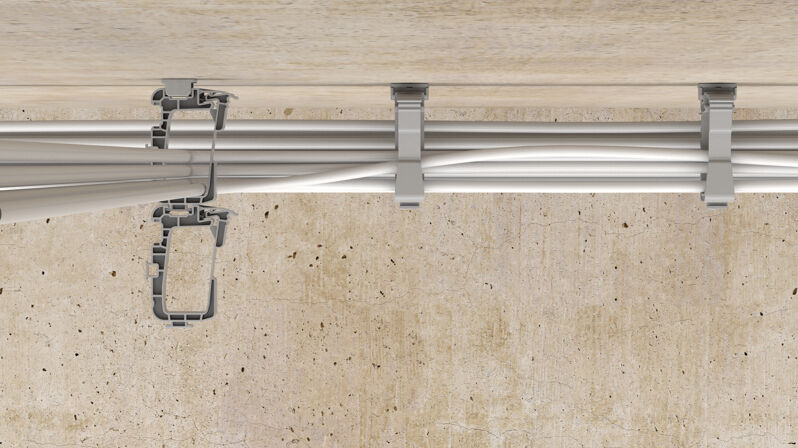

  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Application Picture
      Art.-No. 574613

      fischer cable harness SHA 40 II Direct fastening

      Product Variant
      Download of image data

      Your advantages / Product description

      The cable harness with flexible mounting options.
      Advantages
      • Flexible installation with the fischer direct fastening tool FGC 100/FXC 85 or with nail plug, screw and plug or ClipFix.
      • Simple bundling and economical laying of multiple electric cables.
      • The seal of the cable harness SHA makes it easy to lay cables at a later date, thus ensuring high user-friendliness.
      • Combining several SHA cable harnesses allows for a cost-effective fixing of cables to just one attachement point.
      The fischer cable harness SHA is a cost-effective solution for mounting bundled electric cables. Thanks to the closure mechanism, the cable harness can be easily opened and closed. The cable harness can be fixed with the fischer direct fastening tools or with nail plu, plug and screw or ClipFix. For a quick and cost-effective installation, the installation bases can be connected together.

      Application and approval

      Applications
      • Electrical cables, loose and bundled
      Building materials
      When using the DFN nails:
      • soft concrete
      • Solid brick
      • sand-lime brick
      When using the DFNH nails:
      • hard concrete > C 30/37
      • steel
      When using nail plug, srew and plug or ClipFix:
      • Concrete
      • Solid pumice block
      • Solid sand-lime brick
      • Natural stone with dense structure
      • Solid brick
      • Other substrates depending on the fastener used
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • The base of the cable harness SHA can be fastened either with direct fastening (DFN/DFNH nails) or with conventional fastening options (e.g. nail plugs: N-F ΓΈ6).
      • After installation, pull the cable harness SHA off the base using the tear-off flap and attach it to the base.
      • The electrical cables are then inserted into the SHA. The lock allows easy opening and quick reassignment.
      • The cable harness SHA can be arranged in rows.
      • The recommended mounting distance is 25-40 cm when fully occupied.
      Installation cable harness SHA II with Direct fastening on ceiling
      1 / 9
      • 1
        Installation cable harness SHA II with Direct fastening on ceiling
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      Installation cable harness SHA II with plug on ceiling
      1 / 7
      • 1
        Installation cable harness SHA II with plug on ceiling
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      Installation cable harness SHA II with Direct fastening on wall
      1 / 9
      • 1
        Installation cable harness SHA II with Direct fastening on wall
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      Installation cable harness SHA II with plug on wall
      1 / 7
      • 1
        Installation cable harness SHA II with plug on wall
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7

      Technical Data

      Width (
      b
      )      		83,5 mm
      Height (
      h
      )      		132,5 mm
      Depth (
      t
      )      		32 mm
      Depth (
      t1
      )      		24 mm
      Height mounting part (
      tfix
      )      		10 mm
      Height mounting part Direct fastening (
      tfix-DF
      )      		4,5 mm
      Max. nail shank diameter Direct fastening (
      dDF
      )      		3 mm
      Colour RAL 7035 cable grey
      Packaging Polybag
      Amount 50 pcs
      GTIN (EAN-Code) 4048962536874
