Frame fixing SXS with countersunk head

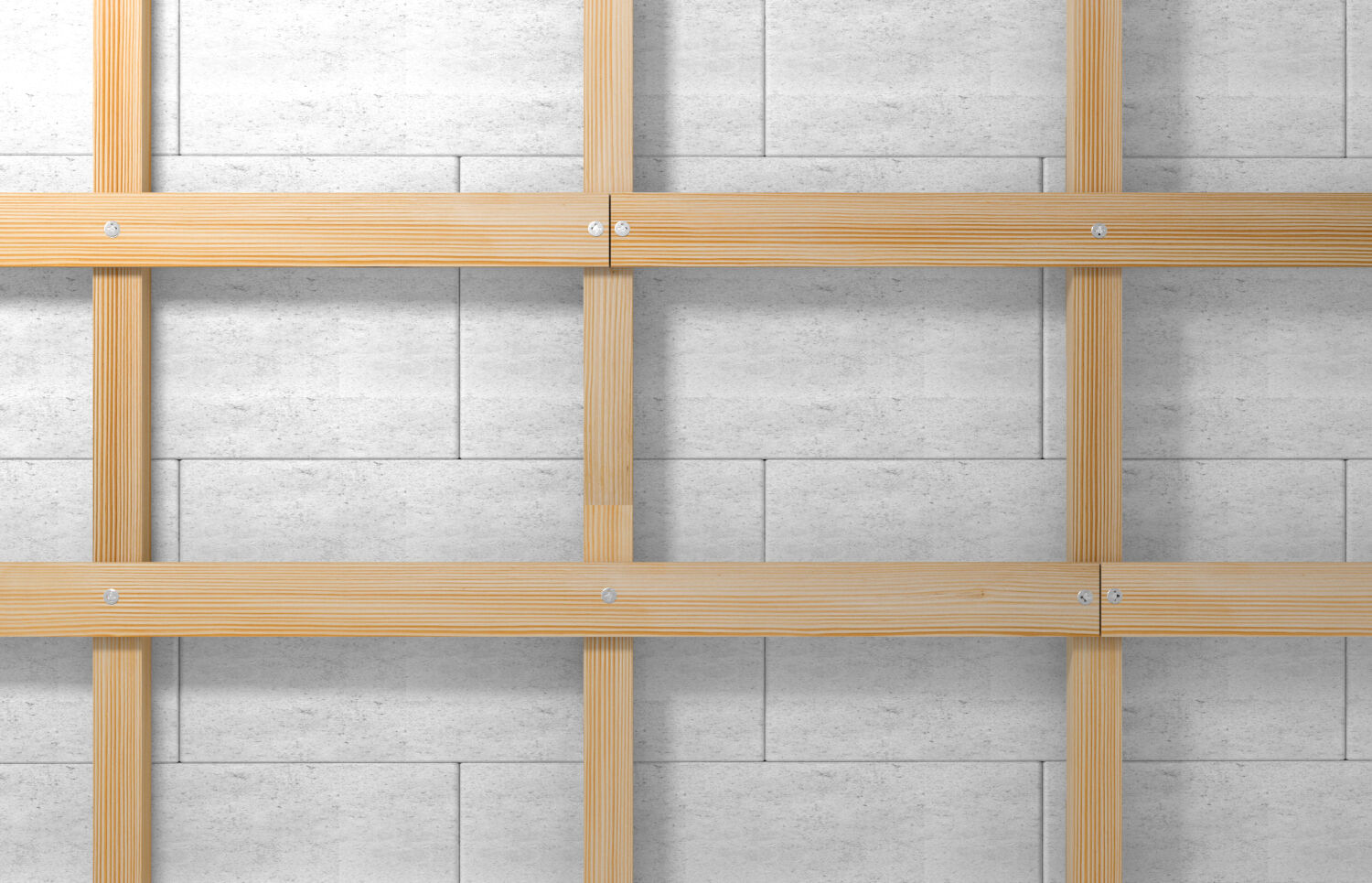

The fischer frame fixing SXS is a frame fixing made of high-quality nylon. The low anchorage depth of 40 mm makes the frame fixing particularly cost-effective. The fischer frame fixing SXS is particularly suited for fixing light wooden substructures.

Product variants

Download of image data

Product variants

6 Product variant (s)

Drill diameter

Anchor length

Min. drill hole depth for through fixings

Min. anchorage depth

Max. fixture thickness

Drive

조회 6 제품 6

System components

Anti-corrosion spray FTC-CP
1 variants

Drill diameter ( d₀ )	8 mm
Anchor length ( l )	150 mm
Min. drill hole depth for through fixings ( h₂ )	160 mm
Min. anchorage depth ( h_nom )	40 mm
Max. fixture thickness ( t _fix )	110 mm
Drive	TX30
Screw diameter ( d_s )	5.5 mm
Screw length ( l_s )	155 mm
Packaging	Folding box
Amount	25 pcs.
GTIN (EAN-Code)	4006209926833
