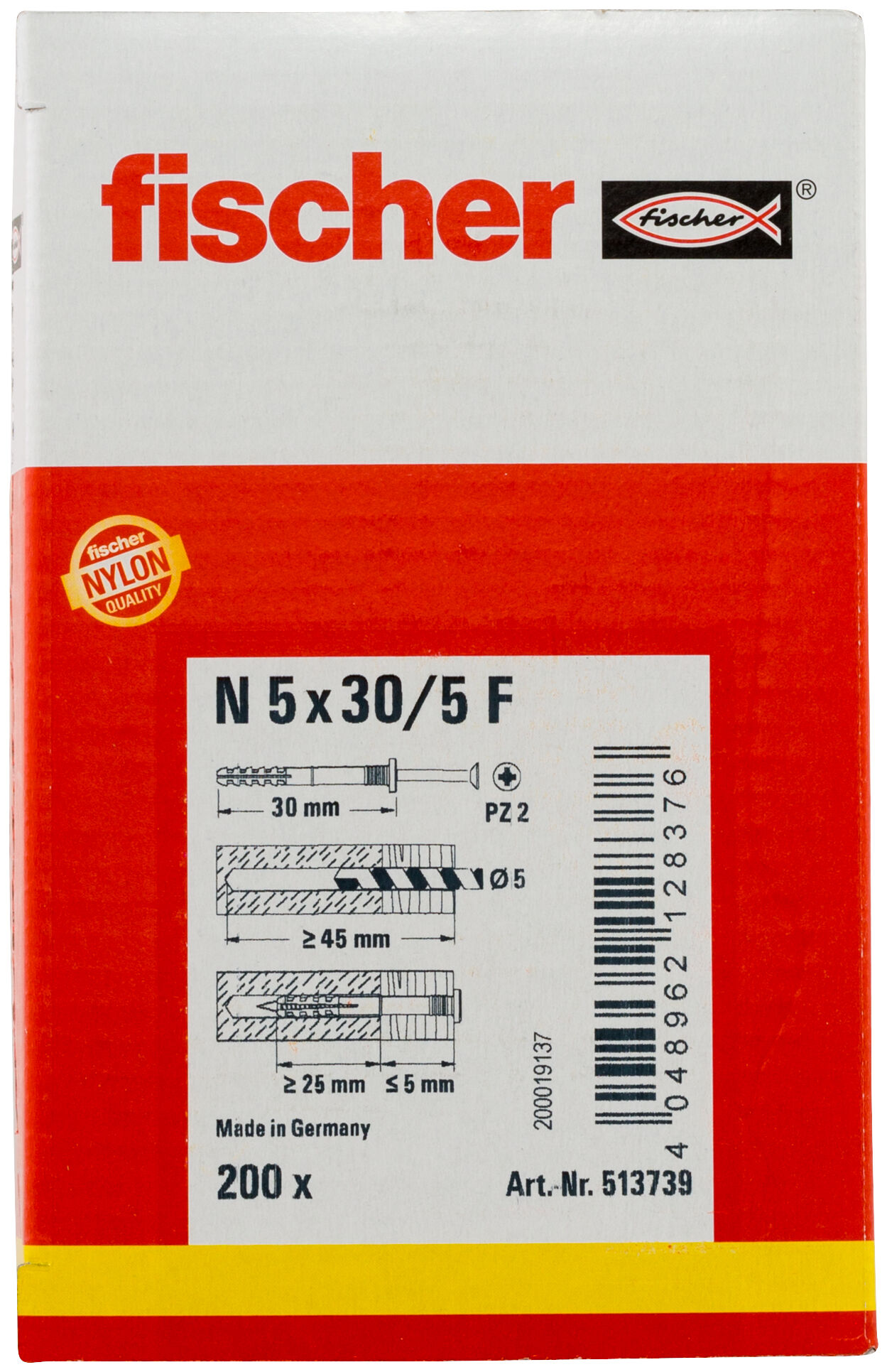

  • Packaging: "fischer Hammerfix N 5 x 30/5 F (200)"
  • Packaging: "fischer Hammerfix N 5 x 30/5 F (200)"
  • Packaging: "fischer Hammerfix N 5 x 30/5 F (200)"
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Packaging
    • Packaging
    • Packaging
    • Application Picture
    • Application Picture
      Art.-No. 513739

      fischer Hammerfix N 5 x 30/5 F (200)

      Product Variant
      CAD Data
      Download of image data
      Top Features
      • Fast Hammerset installation saves time: ideal for series installation.
      • Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.
      • Subsequent dismantling of the nail screw with a cross-slot recess is possible.
      • With flat head for metal constructions.

      Your advantages / Product description

      The ha mmer-in plug with flat head for simple, fast and economic installation.
      Advantages
      • The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
      • The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
      • Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
      • The wide range of diameters and usage lengths provides the correct plug for every fixing.
      The fischer Hammerfix N-F with flat head consists of a high-quality nylon plug and a zinc-plated nail screw. These are pre-mounted for a fast installation process. The Hammerfix is inserted through the attachment part in a time-saving push-through installation. When the nail screw is hammered in, the plug sleeve expands and creates a secure anchoring in the building material. The fischer Hammerfix N-F with flat head is ideal for the fixing of metal constructions in all building materials.

      Application and approval

      Applications
      • Metal constructions
      Building materials
      • Concrete
      • Solid sand-lime brick
      • Building brick
      • Natural stone
      • Solid brick made from lightweight concrete
      • Aerated concrete
      • Solid panel made from gypsum
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • Suitable for push-through installation.
      • When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
      • Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.
      Installation Hammerfix N
      1 / 4
      • 1
        Installation Hammerfix N
      • 2
      • 3
      • 4

      Technical Data

      Drill diameter (
      d0
      )      		5 mm
      Effect. anchorage depth (
      hef
      )      		25 mm
      Anchor length (
      l
      )      		30 mm
      Min. drill hole depth for through fixings (
      h2
      )      		45 mm
      Max. fixture thickness (
      t fix
      )      		5 mm
      Drive PZ2
      Packaging Folding box
      Amount 200 pcs.
      GTIN (EAN-Code) 4048962128376

      Documents for Downloading

      • Technical documents
      Load Table
      pdf,
      Hammerfix N - Recommended loads for a single anchor.
