Construction element - Angle bracket fire-tested PUWF.

Angle bracket fire-tested PUWF

The fischer fire-tested angle bracket PUWF is suitable for the flexible construction of frame structures and fixing to the substrate in combination with fischer FUS mounting channels and the fischer PFCN push-through connector. Due to its design, the angle bracket gives a supporting structure very high stability even under the influence of temperature. The galvanised version is suitable for installations in buildings. The fire protection certificate offers added safety

Product Variant

Download of image data

Product Variant

1 product variants

Fire test report

For profile

Amount

GTIN (EAN-Code)

Viewed 1 of 1 variant (s)

Advantages

The fire test report in accordance with MLAR/EN1366 guarantees objectively tested functional safety.
The stable design of the angle bracket allows high loads and ensures a secure hold. (use in pairs is recommended).
Quick installation thanks to 90° rotation of the PFCN 41 push-through connector in the channel.
The hole geometry allows the angle bracket to be attached to the FUS mounting channel in 3 positions with identical load-bearing capacity.

Properties

Material: steel acc. to DIN EN 10025-2 (material no. 1.0038)
Zinc plating: electro zinc-plated

Applications

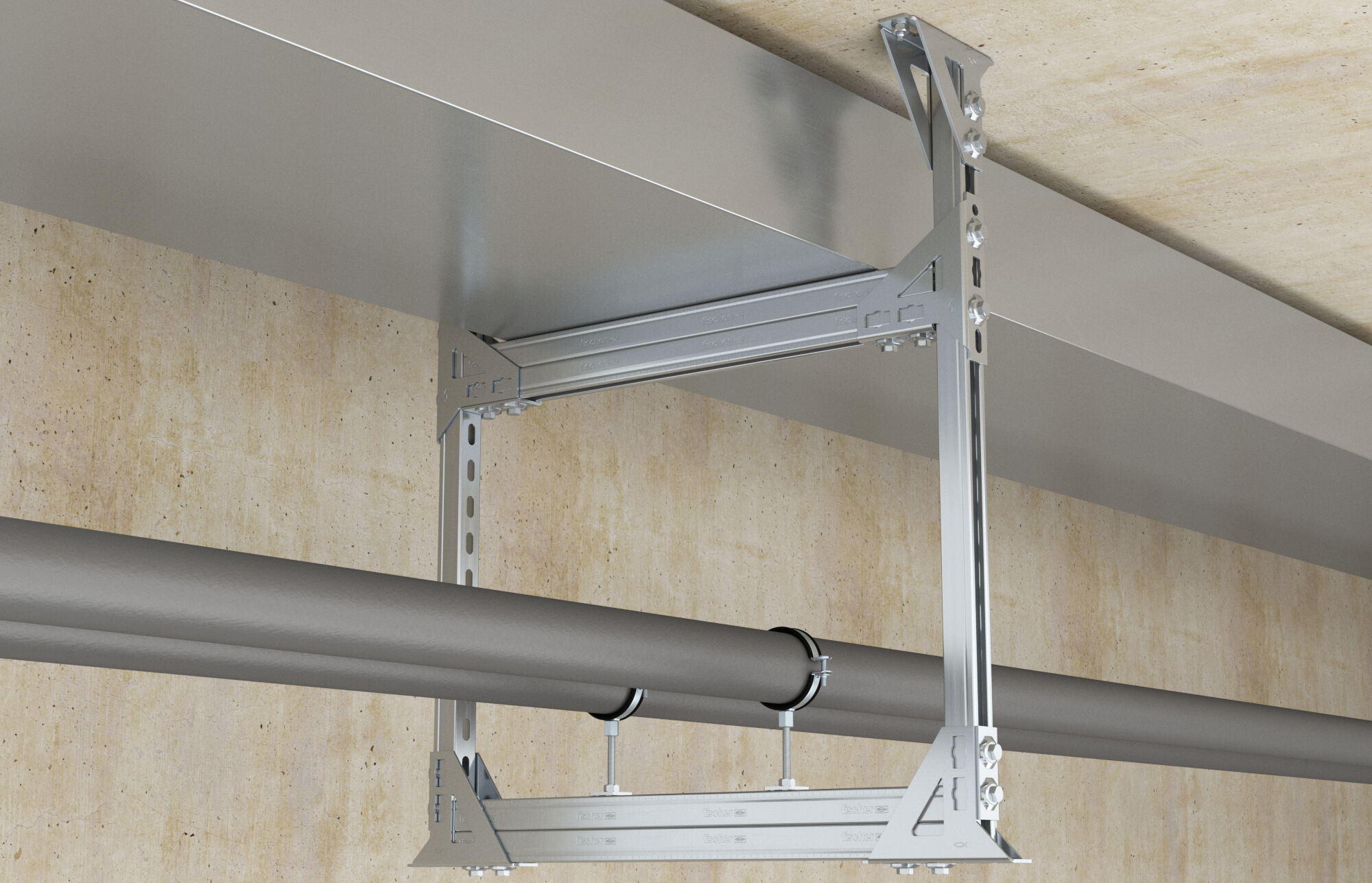

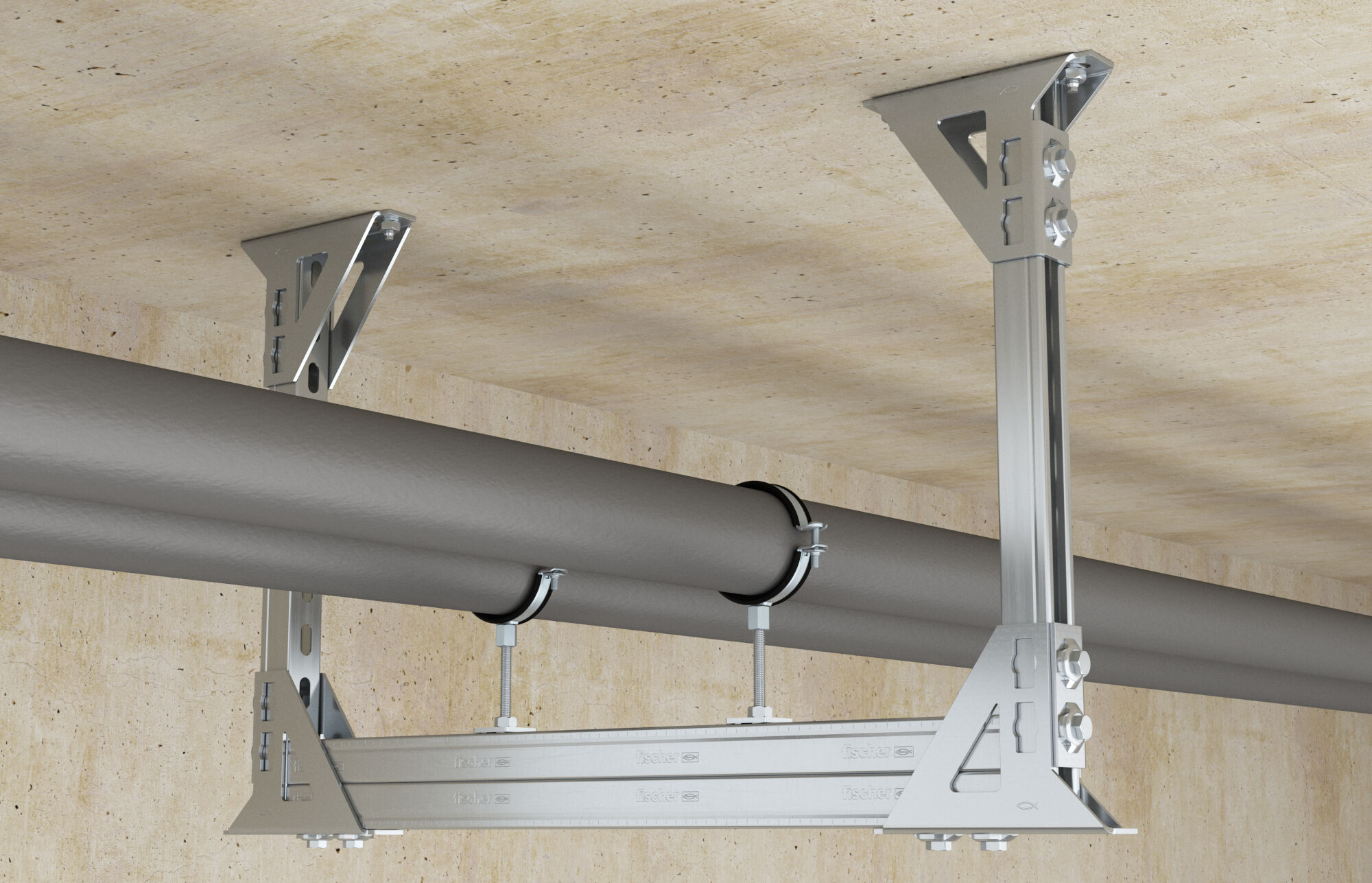

Unique construction element for use as a connection to the substrate and for 90° angle connections.
Allows the construction of applications with or without fire resistance requirements.
For use in dry interior areas.

Approval

GS 6.1/23-066-2

U-frame construction type 1
