Hammer-head bolt for quick and easy fixing in FLS channels.

T-head bolt FHS Clix

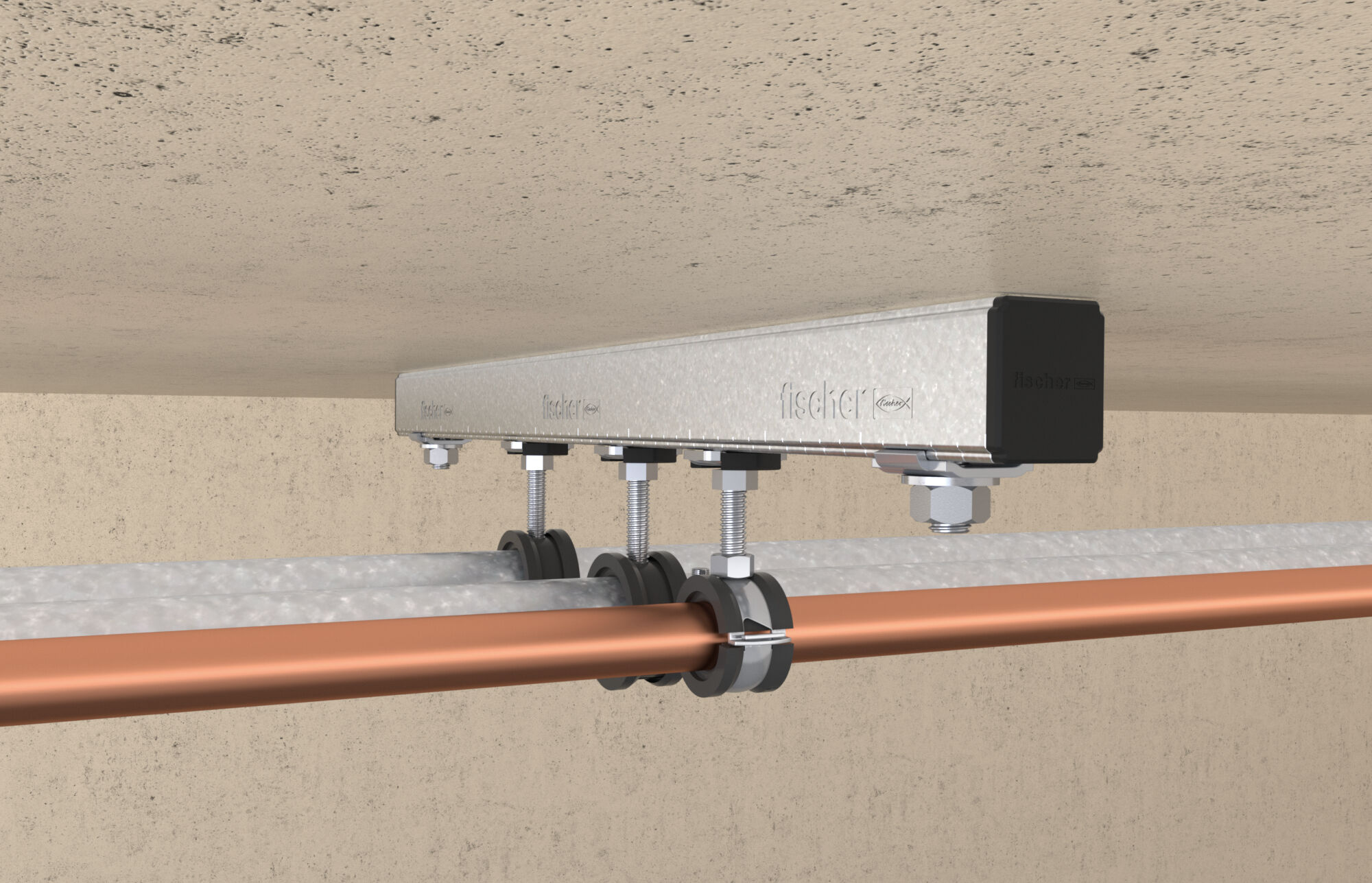

The fischer T-head bolt FHS Clix is a fixing element for securely connecting pipe clamps with the fischer mounting channel system FLS. The T-head bolt FHS Clix is securely connected by means of a 90° rotation. The FHS Clix is available in the sizes M8 and M10 and in the lengths 30 to 100 mm. The special contact tongue on the FHS Clix ensures the required contact pressure of the fixing element in the FLS channel in order to ensure safe adjustment during assembly. In addition, the pronounced teeth in the channel nut enable precise and safe positioning in the FLS mounting channels and make the installation process easier. The galvanized zinc version is suitable for installation in buildings. The fire protection certificate provides added safety in the case of the channel nut.

Product Variant

Download of image data

Product Variant

12 product variants

Thread

Length

Width across nut

Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0

Max. recommended tension load for FLS 37/1.2

Max. recommended shear load

Viewed 12 of 12 variant (s)

Thread ( A )	M8
Length ( L )	30 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load ( V_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4048962265156

Thread ( A )	M8
Length ( L )	40 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load ( V_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4048962265163

Thread ( A )	M8
Length ( L )	60 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load ( V_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4048962265170

Thread ( A )	M8
Length ( L )	80 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load ( V_rec )	1 kN
Amount	50 pcs.
GTIN (EAN-Code)	4048962265187

Thread ( A )	M8
Length ( L )	100 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load ( V_rec )	1 kN
Amount	50 pcs.
GTIN (EAN-Code)	4048962265194

T-head bolt FHS Clix

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Documents for Downloading

Thread ( A )	M8
Length ( L )	140 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load	—
Amount	50 pcs.
GTIN (EAN-Code)	4048962324402

Thread ( A )	M8
Length ( L )	190 mm
Width across nut	13 mm
Max. recommended tension load for FLS 17/1.0 and FLS 30/1.0 ( N_rec )	1,5 kN
Max. recommended tension load for FLS 37/1.2 ( N_rec )	2 kN
Max. recommended shear load	—
Amount	50 pcs.
GTIN (EAN-Code)	4048962324426
