Fixed points heavy

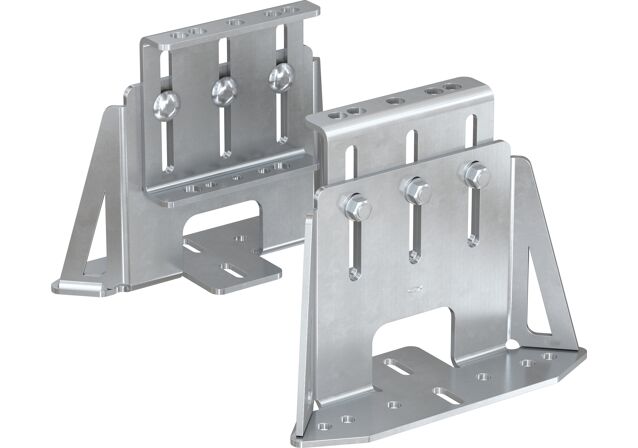

  • Product Picture: "fischer Fixed point saddle heavy FFS-H2"

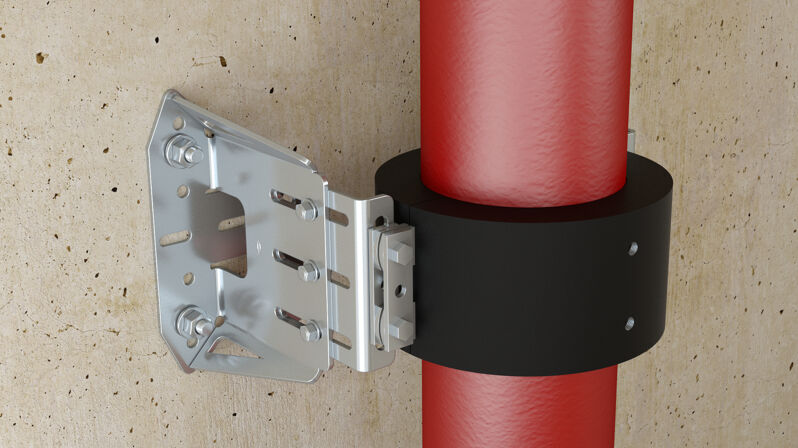

  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 569309

      fischer Fixed point saddle heavy FFS-H2

      Product Variant
      Download of image data
      Top Features
      • Height adjustment possible.
      • Mounting of the fixed point solid clamp FFSC and Refrigeration fixed point clamp FFRC.
      • Varying or unknown force directions possible.
      • Recommended pipe dimension ≤ 355,6 mm.

      Your advantages / Product description

      The fixed point solution for heavy loads
      Advantages
      • The massive design of the fixed point and the massive subsoil connection allow the absorption of high loads for a stable and secure connection.
      • The fixed points consist of components with matching thread sizes and plug holes, thus ensuring easy assembly with the same tools.
      • The height adjustment of the fixed point allows for precise adjustment to match mounted pipelines and therefore ensures the safe function of the anchor point.
      • The fixed point is suitable for mounting the FFSC fixed point solid clamp and FFRC Refrigeration fixed point clamp for even more flexibility.
      The heavy fixed points in compact design prevent undesired movements between pipes and structures in hot- or cold-running pipelines and align the thermally induced pipe expansion in the desired direction. The compact fixed points FFS-H reliably transfer the incoming forces directly into the structure and are height-adjustable. The galvanized version is suitable for installations in buildings.
      Properties
      • Material: Steel
      • Bolts and nuts: Strength class 8
      • Zinc plating: galvanised steel
      • Thermal capacity: -30 °C to +300 °C

      Application and approval

      Applications
      • Heating pipes
      • Cooling lines
      • Steam pipes
      • Hot water and circulation pipes
      • Media lines with thermal expansion

      Assembly instruction

      Functionality
      • The fischer fixed points are suitable for fixings subject to thermal pipe expansions and are used to orient the expansion in the desired direction.
      • You can find the installation instructions of the fixed point under „Documents for Downloading“.
      Show the assembly instruction as pdf file

      Technical Data

      Max. recom. pipe-ø 355.6
      Min. construction height (
      H
      )      		210 mm
      Max. construction height (
      H
      )      		310 mm
      Max. recom. axial load (
      F x rec.
      )      		36 kN
      Length (
      L
      )      		325 mm
      Width (
      B
      )      		130 mm
      Thickness (
      S
      )      		6 mm
      Installation torque (
      Tinst
      )      		80 Nm
      Amount 1 pcs.
      GTIN (EAN-Code) 4048962494938

      Documents for Downloading

      • Technical documents
      • Sales materials
      Installation Instructions
      pdf,
      FFS-H / FFS-H2
