Hole punch LZ, hole stamp LST

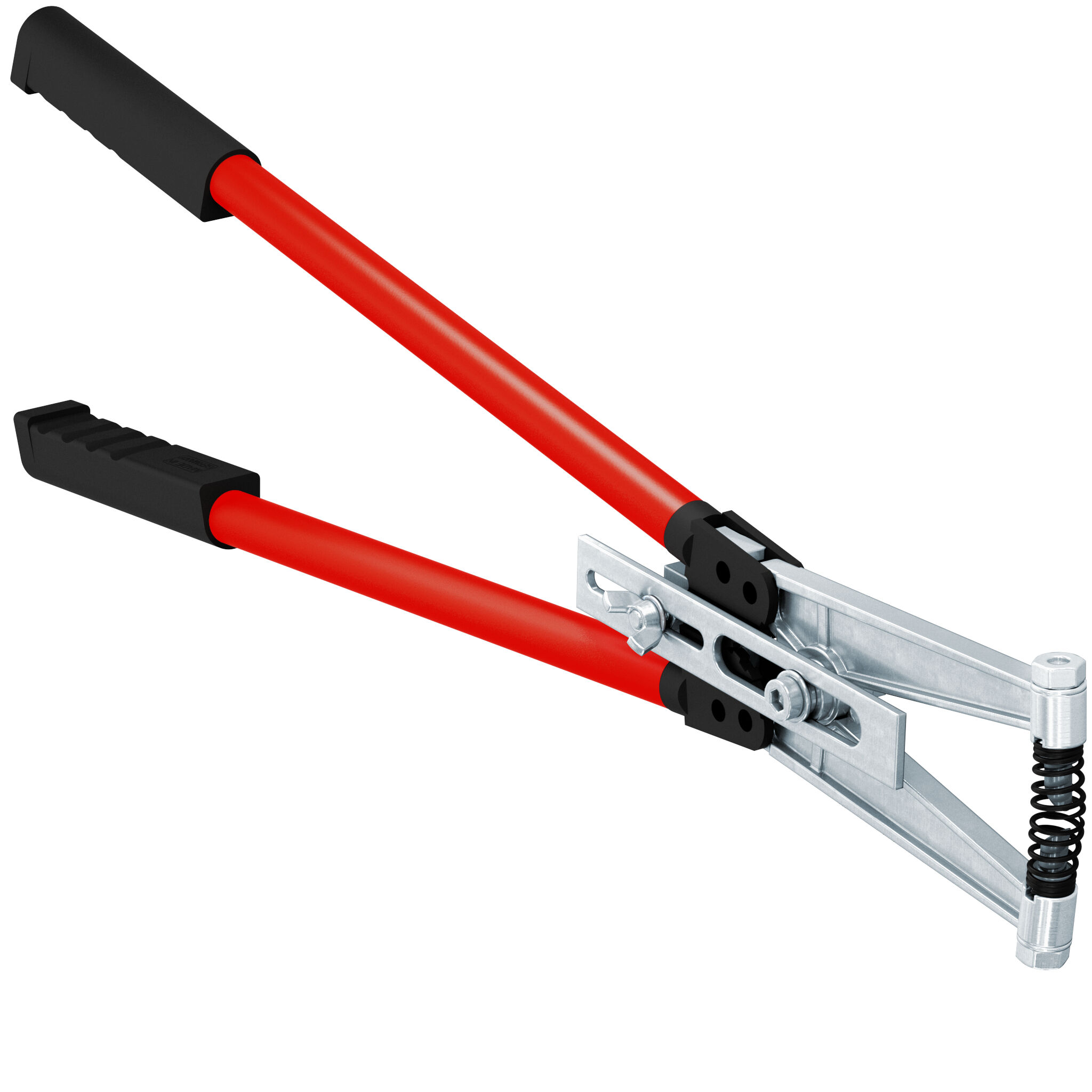

  • Product Picture: "fischer Hole punch LZ"
    • Product Picture
      Art.-No. 79830

      fischer Hole punch LZ

      Product Variant
      Download of image data
      Top Features
      • A long lever enables holes to be easily punched.
      • Interchangeable hole stamp increases service life of trapezoidal sheet metal pliers.

      Your advantages / Product description

      Robust hole punch for punching holes in corrugated sheets.
      Advantages
      • The hole punch LZ enables easy handling during use.
      • Thanks to the long lever, only a little force is required to use it.
      • The hole stamp LST can be replaced if it shows signs of wear.
      The fischer hole stamp LZ is a tool for stamping holes in trapezoidal sheets and trapezoidal ceilings.
      Properties
      • Usable for trapezoidal steel sheets with max. width of 100 mm
      • Max. sheet thickness 1,25 mm
      • Hole punch diameter 10 mm
      • Adjustable depth stop for accurate adjustment
      • Stamp with ejector springs for easy ejection of stamps from metal sheet
      • Rubber handles for better grip
      • Long lever and hinges for better power transmission

      Application and approval

      Applications
      • Tool for punching holes in trapezoidal metal sheets.

      Technical Data

      Hole punch diameter 10 mm
      Opening width 100 mm
      Amount 1 pcs.
      GTIN (EAN-Code) 4006209798300
