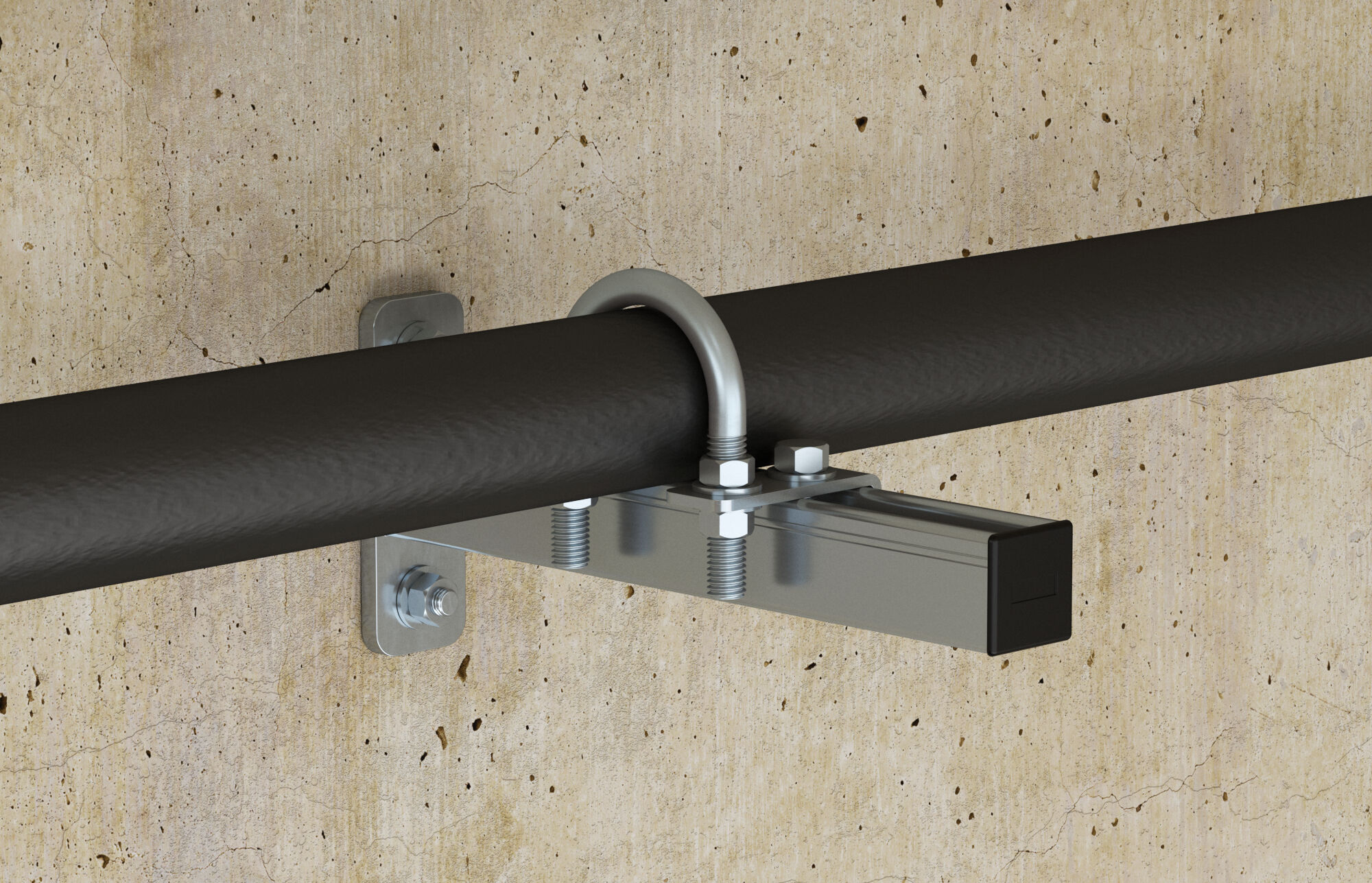

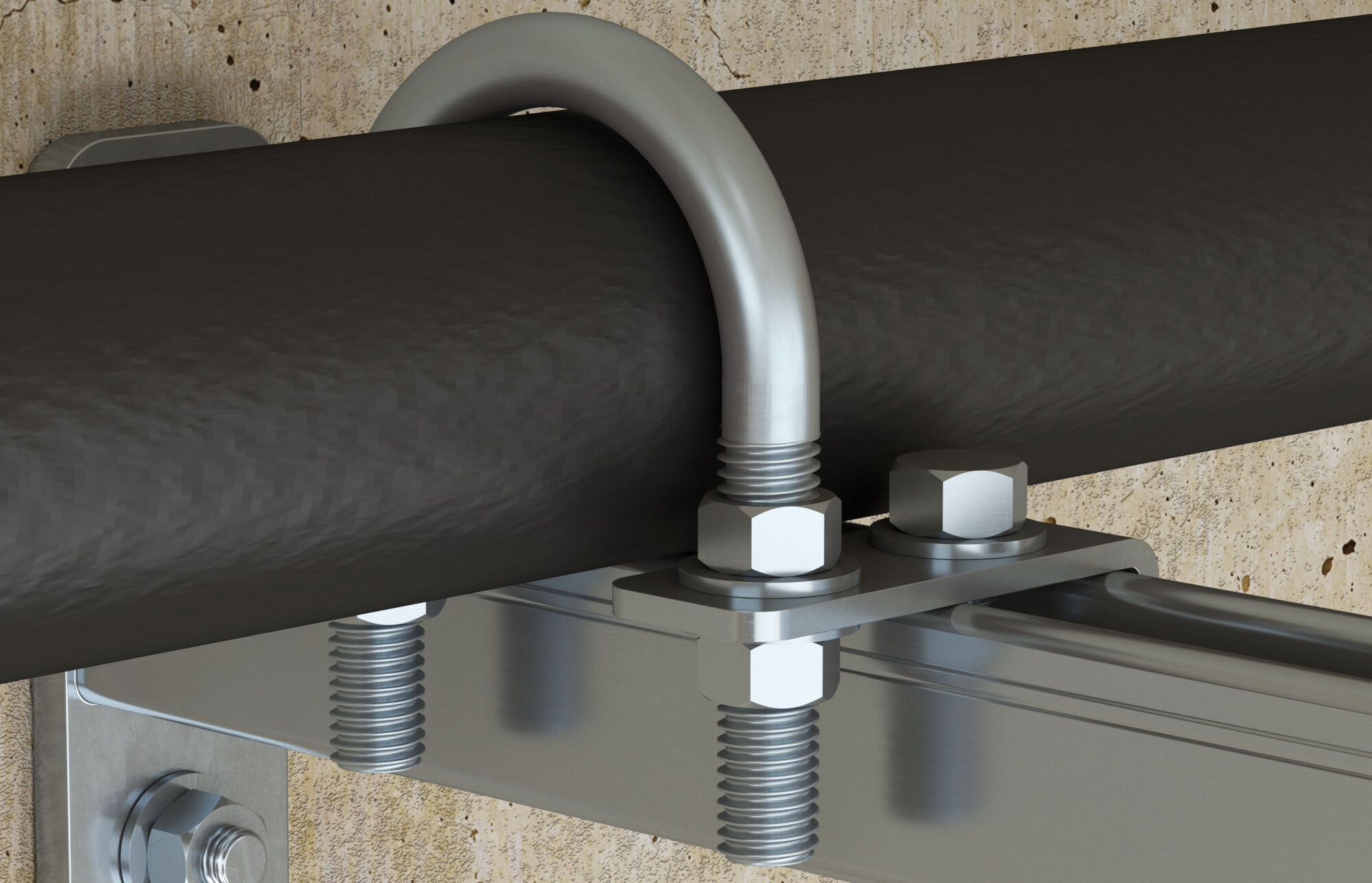

      U-Bolt connector FETR-C for connecting ETR U-Bolts to FUS channels.

      U-Bolt connector FETR-C

      The fischer FETR-C channel connector allows ETR U-Bolts to be easily connected to the FUS channel system. With the FETR-C, free positioning of ETR U-Bolts on all FUS channels is possible, regardless of the hole pattern of the FUS channels. The FETR-C channel connector is connected to the FUS channel using our proven FCN Clix P sliding nut and SKS hexagonal screws. To connect ETR U-Bolts to the FETR-C channel connector, 2 additional nuts are recommended.
      Product Variant
      Download of image data

      Product Variant

      3 product variants
      Hole-ø
      Amount
      GTIN (EAN-Code)
      Viewed 3 of 3 variant (s)

      Your advantages / Product description

      Advantages
      • The FETR-C enables the connection of U-Bolts ETR to mounting channels FUS and allows free positioning of the ETR on the FUS channel profiles.
      • Independent positioning of ETR without taking into account the hole pattern of the FUS channel profiles.
      Properties
      • Material: steel S235JR (material no. 1.0038)
      • Zinc plating: hot-dip galvanised

      Application and approval

      Applications
      • U-Bolt connector for use with mounting channels FUS in combination with U-Bolt ETR.
      • For indoor and outdoor application.

      Assembly instruction

      Installation FETR-C
      1 / 5
      • 1
        Installation FETR-C
      • 2
      • 3
      • 4
      • 5
