The two-screw pipe clamp without sound insulation insert with FM and VdS approval.

Heavy duty pipe clamp FRSMN

The fischer solid pipe clamp FRSMN is a two-screw, galvanised pipe clamp with a double connection nut and from DN 300 with an M16 connection nut. The connection nuts are pushed through or welded all the way around and provide a pipe fastening with the highest bending strength. The design with two screws enables optimised adaptation to the pipe outer diameter. This means that pipes with an outer diameter of 15 - 521 mm can be securely fastened with threaded pipes indoors. The FM and VdS approval guarantees objectively tested safety for use in sprinkler systems.

Product Variant

Download of image data

Product Variant

43 product variants

FM approval

VdS approval

Thread

Size

Clamping range

Width

More results

Viewed 18 of 43 variant (s)

Advantages

FM and VdS approval guarantees objectively tested safety for the use of sprinkler systems.
The FRSMN without sound insulation insert is ideal for industrial applications and plastic pipes.
The connection nuts with combination thread ensure flexibility on the construction site.
The two-screw design enables optimised adaptation to the outer pipe diameter.
The loss protection of the screws ensures trouble-free installation.

Properties

Material heavy duty pipe clamp: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Connection nut:
- Push-through nut M8/M10, M10/M12, M12/M16 resistance spot-welded
- Hexagonal nuts M16 SW24 and M20 SW30 half-round welded
- Hexagonal nuts M16 SW30 from diameter 316-324 all-round welded
- Locking screw: hexagonal screw with flange M6 SW10/PH3, M8 SW13/PH3. From diameter 133-140 hexagonal screw 8.8 and nut M12 SW19, M16 SW24

Applications

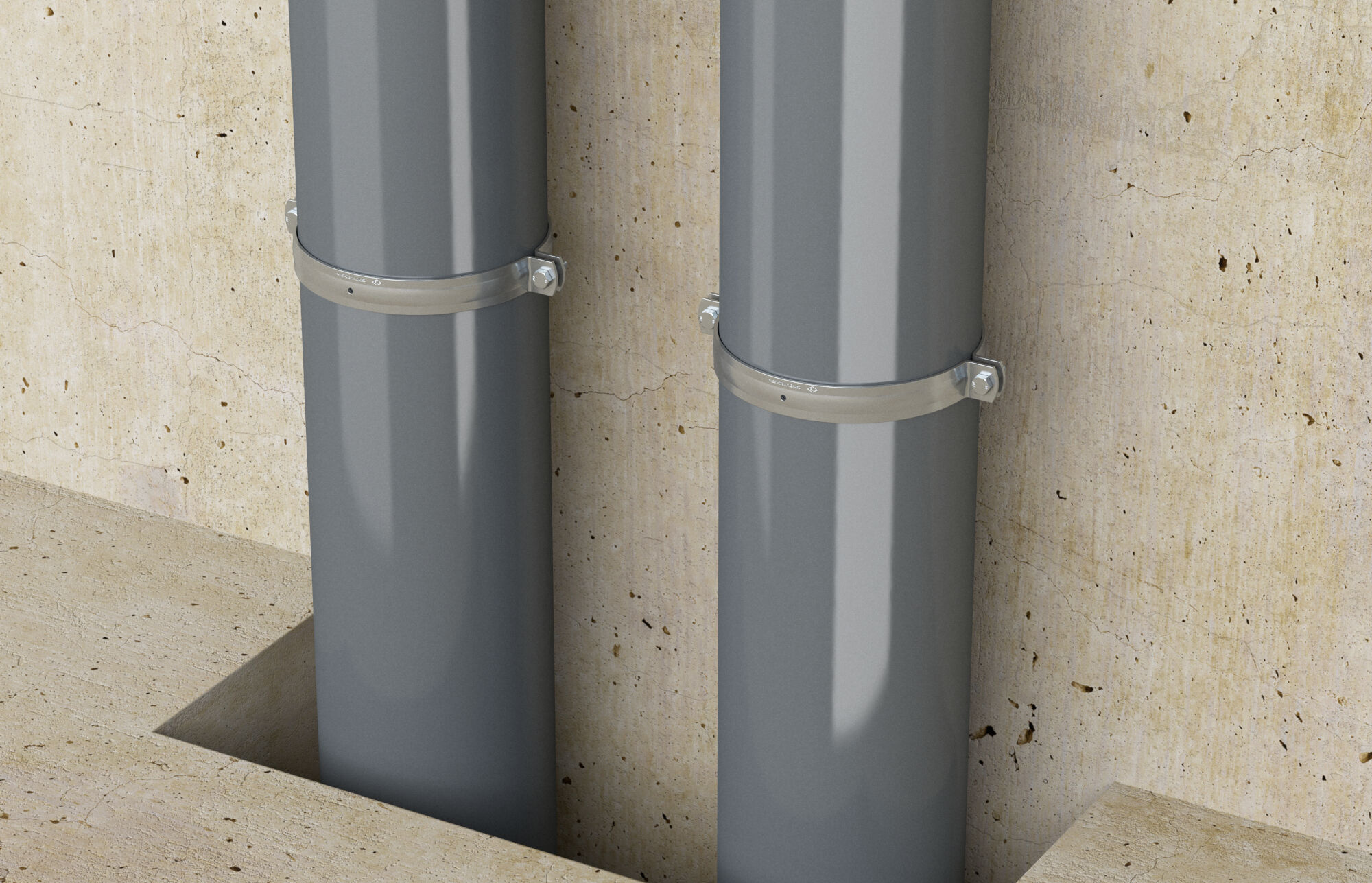

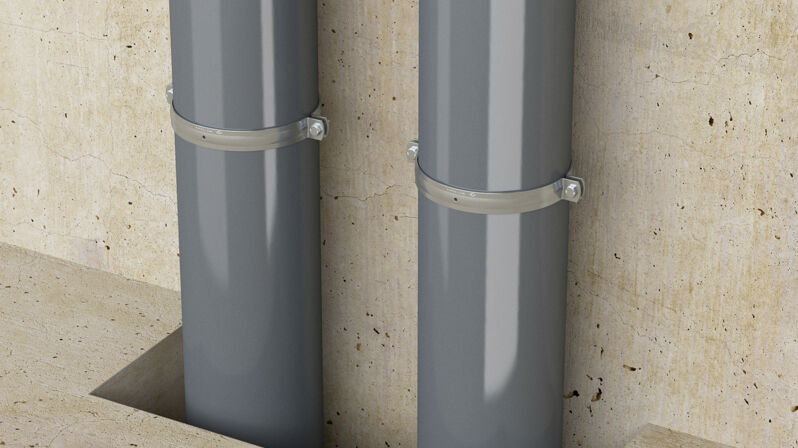

Fixing metal or plastic pipes without sound insulation requirements using threaded rods or stud screws, e.g. in industrial buildings.
Fixing sprinkler pipes in accordance with FM and VdS guidelines.
For use in dry interior areas.

Approval

PR466911
G 423026

Installation FRSMN

1 / 5

FM approval	Yes
VdS approval	Yes
Thread ( A )	M8 / M10
Size	3/8 in
Clamping range ( D )	15 - 19 mm
Width ( B )	62 mm
Height ( H )	45,5 mm
Width x thickness clamp band ( b x s )	30 x 2.5 mm
Height ( Z )	33,5 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	2,5 kN
Installation torque ( T_inst )	2 Nm
Amount	50 pcs
GTIN (EAN-Code)	4048962503852

FM approval	Yes
VdS approval	Yes
Thread ( A )	M8 / M10
Size	1/2 in
Clamping range ( D )	20 - 24 mm
Width ( B )	71 mm
Height ( H )	50,5 mm
Width x thickness clamp band ( b x s )	30 x 2.5 mm
Height ( Z )	36 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	2,5 kN
Installation torque ( T_inst )	2 Nm
Amount	50 pcs
GTIN (EAN-Code)	4048962503869

FM approval	Yes
VdS approval	Yes
Thread ( A )	M8 / M10
Size	3/4 in
Clamping range ( D )	25 - 30 mm
Width ( B )	78 mm
Height ( H )	56,5 mm
Width x thickness clamp band ( b x s )	30 x 2.5 mm
Height ( Z )	39 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	2,5 kN
Installation torque ( T_inst )	2 Nm
Amount	50 pcs
GTIN (EAN-Code)	4048962503876

FM approval	Yes
VdS approval	Yes
Thread ( A )	M8 / M10
Size	1 in
Clamping range ( D )	31 - 35 mm
Width ( B )	84 mm
Height ( H )	59 mm
Width x thickness clamp band ( b x s )	30 x 2.5 mm
Height ( Z )	37,5 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	4 kN
Installation torque ( T_inst )	2 Nm
Amount	50 pcs
GTIN (EAN-Code)	4048962503883

FM approval	Yes
VdS approval	Yes
Thread ( A )	M8 / M10
Size	—
Clamping range ( D )	36 - 41 mm
Width ( B )	89 mm
Height ( H )	65 mm
Width x thickness clamp band ( b x s )	30 x 2.5 mm
Height ( Z )	40,5 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	4 kN
Installation torque ( T_inst )	2 Nm
Amount	50 pcs
GTIN (EAN-Code)	4048962503890
