The variable refrigeration pipe clamp with flexible clamping range and rapid-locking-mechanism.

Refrigeration pipe clamp FRSK

The fischer refrigeration pipe clamp FRSK with integrated clamping range adjustment is a two screw pipe clamp with rapid-locking-mechanism and combination M8/M10 or M12/M16 threads. The version with two screws allows for optimised adjustment to the exterior pipe diameter. The two screw design and combination thread increase flexibility in assembly. This allows pipelines to be installed for refrigeration and air conditioning applications with an exterior diameter of 10 - 219 mm and an insulation thickness of up to 19 mm.

Product Variant

Download of image data

Product Variant

25 product variants

Size

Thread

Insulation thickness

Width

Height

More results

Viewed 18 of 25 variant (s)

Advantages

The variable clamping range compensation and two screw design allow for simple adjustment to the exterior pipe diameter, reducing the number of items required.
The self-adhesive fastening latch ensures the ideal functioning of the refrigeration pipe clamp.
Materials resistant to ageing ensure the FRSK offers consistent performance.
The double-threaded connecting nut offers flexibility on the construction site.
The loss protection on the screws allows for easy installation.
The integrated load distribution plate ensures load transfer and allows for higher loads.

Properties

Material: rigid polyurethane foam, silicone-free
Density: 80 or 120 kg/m³
Diffusion resistance: 7000 µ
Compressive strength: 0.67-0.75 mPa
Thermal conductivity (at 0 °C): 0.024-0.026 W/mK
Temperature range: -45 °C to +105 °C
Fire behaviour: DIN 4102: Class B2
Steel clamp: material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Screw plug: oval-head screw with slot / Phillip's head combination

Applications

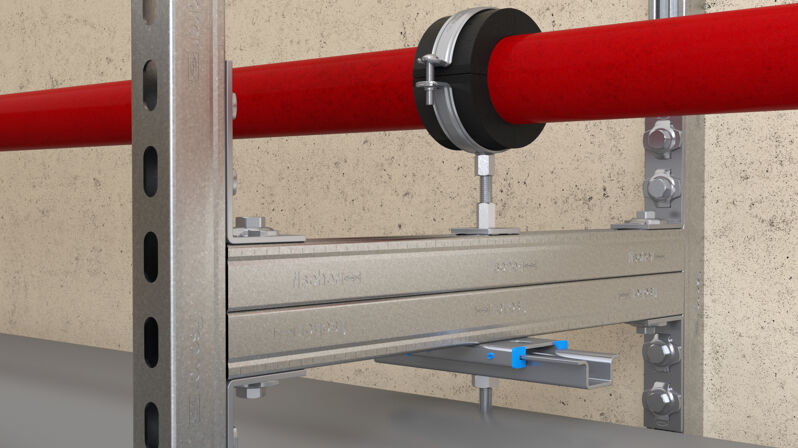

Installation of pipes in refrigeration and air-conditioning applications.
For use in dry interior areas.

Installation FRSK

1 / 8

1
2
3
4
5
6
7
8

Size	1/4 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	83 mm
Height ( H )	69 mm
Height ( Z )	42 mm
Locking screw	M5
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,05 kN
Amount	25 pcs.
GTIN (EAN-Code)	4048962430974

Size	3/8 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	90 mm
Height ( H )	76 mm
Height ( Z )	45 mm
Locking screw	M5
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,05 kN
Amount	25 pcs.
GTIN (EAN-Code)	4048962430981

Size	1/2 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	90 mm
Height ( H )	76 mm
Height ( Z )	45 mm
Locking screw	M5
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,05 kN
Amount	25 pcs.
GTIN (EAN-Code)	4048962430998

Size	3/4 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	97 mm
Height ( H )	83 mm
Height ( Z )	49 mm
Locking screw	M5
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,08 kN
Amount	25 pcs.
GTIN (EAN-Code)	4048962431001

Size	1 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	120 mm
Height ( H )	100 mm
Height ( Z )	57 mm
Locking screw	M6
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,1 kN
Amount	20 pcs.
GTIN (EAN-Code)	4048962431018

Refrigeration pipe clamp FRSK

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Size	1 1/4 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	120 mm
Height ( H )	100 mm
Height ( Z )	57 mm
Locking screw	M6
Length of insulation material ( b₂ )	72 mm
Max. recom. static load (centr. tension) ( N_rec )	0,2 kN
Amount	20 pcs.
GTIN (EAN-Code)	4048962431032

Size	1 1/2 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	130 mm
Height ( H )	109 mm
Height ( Z )	62 mm
Locking screw	M6
Length of insulation material ( b₂ )	42 mm
Max. recom. static load (centr. tension) ( N_rec )	0,24 kN
Amount	20 pcs.
GTIN (EAN-Code)	4048962431049

Size	2 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	139 mm
Height ( H )	118 mm
Height ( Z )	66 mm
Locking screw	M6
Length of insulation material ( b₂ )	52 mm
Max. recom. static load (centr. tension) ( N_rec )	0,37 kN
Amount	20 pcs.
GTIN (EAN-Code)	4048962431063

Size	2 1/2 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	156 mm
Height ( H )	135 mm
Height ( Z )	75 mm
Locking screw	M6
Length of insulation material ( b₂ )	52 mm
Max. recom. static load (centr. tension) ( N_rec )	0,61 kN
Amount	10 pcs.
GTIN (EAN-Code)	4048962431087

Size	3 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	176 mm
Height ( H )	156 mm
Height ( Z )	86 mm
Locking screw	M6
Length of insulation material ( b₂ )	52 mm
Max. recom. static load (centr. tension) ( N_rec )	0,79 kN
Amount	10 pcs.
GTIN (EAN-Code)	4048962431094

Size	4 in
Thread ( A )	M8 / M10
Insulation thickness ( S _AF )	19 mm
Width ( B )	192 mm
Height ( H )	172 mm
Height ( Z )	94 mm
Locking screw	M6
Length of insulation material ( b₂ )	62 mm
Max. recom. static load (centr. tension) ( N_rec )	1,17 kN
Amount	10 pcs.
GTIN (EAN-Code)	4048962431124
