The two-screw pipe clamp with a sound insulation insert with resistance to high temperatures.

Silicone pipe clamp FRSH

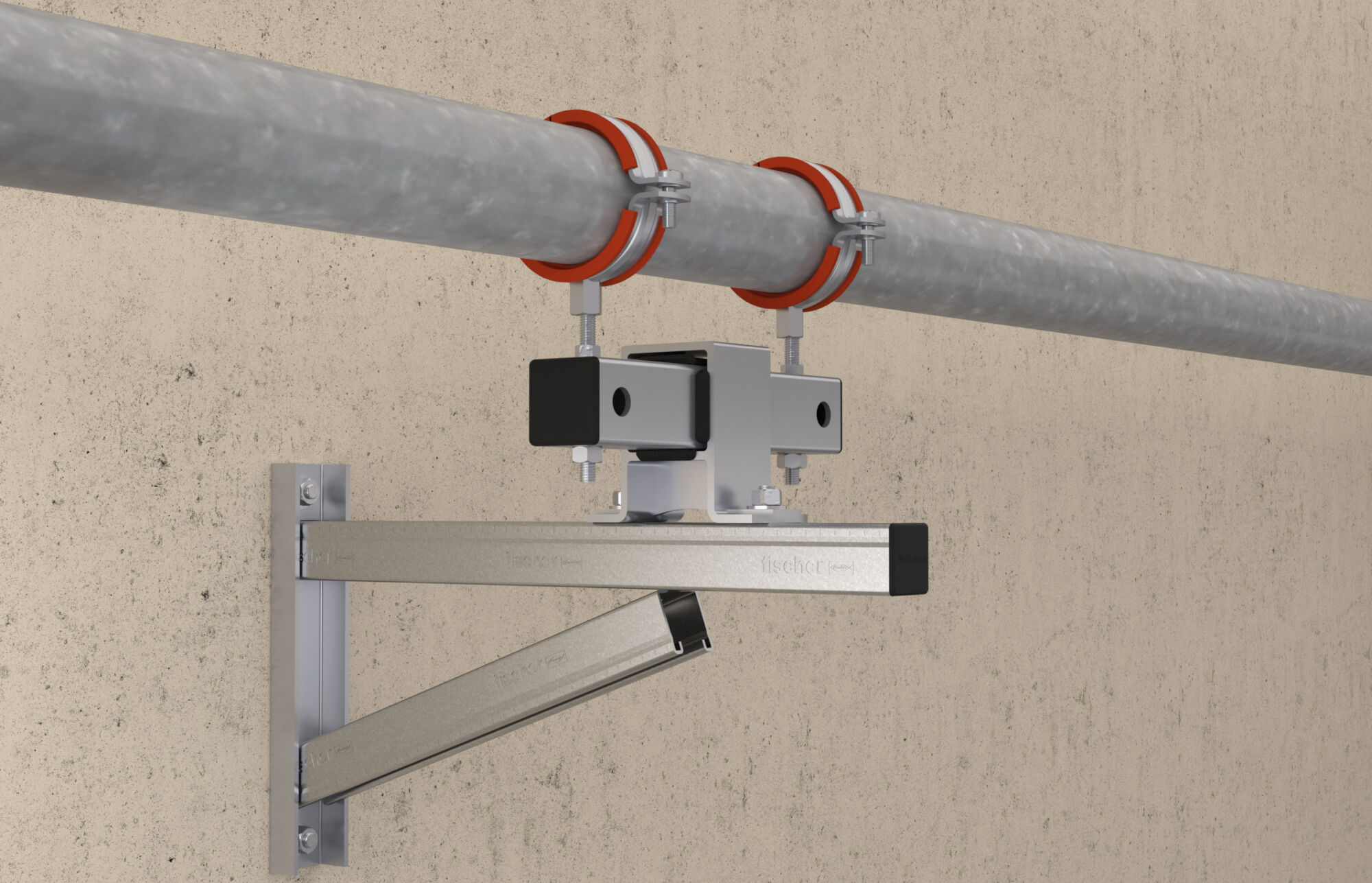

The fischer pipe clamp FRSH is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a highly temperature-resistant silicone sound insulation insert. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. This enables hot water and steam pipelines with media up to +220°C and an outer diameter of 15 to 168 mm to be securely fixed indoors with a threaded rod or stud screw. With a chlorine-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

Product Variant

Download of image data

Product Variant

16 product variants

Thread

Size

Clamping range

Width

Height

Width x thickness clamp band

Viewed 16 of 16 variant (s)

Thread ( A )	M8
Size	3/8 in
Clamping range ( D )	15 - 19 mm
Width ( B )	62 mm
Height ( H )	41 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	24 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4006209634905

Thread ( A )	M8
Size	1/2 in
Clamping range ( D )	20 - 24 mm
Width ( B )	68 mm
Height ( H )	46 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	26 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4006209634929

Thread ( A )	M8
Size	3/4 in
Clamping range ( D )	25 - 30 mm
Width ( B )	75 mm
Height ( H )	52 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	29 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4006209634943

Thread ( A )	M8
Size	1 in
Clamping range ( D )	32 - 37 mm
Width ( B )	80 mm
Height ( H )	59 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	33 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	100 pcs.
GTIN (EAN-Code)	4006209634950

Thread ( A )	M8
Size	1 1/4 in
Clamping range ( D )	40 - 45 mm
Width ( B )	90 mm
Height ( H )	67 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	37 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	50 pcs.
GTIN (EAN-Code)	4006209634981

Silicone pipe clamp FRSH

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Thread ( A )	M8
Size	1 1/2 in
Clamping range ( D )	48 - 53 mm
Width ( B )	97 mm
Height ( H )	75 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	41 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	50 pcs.
GTIN (EAN-Code)	4006209634998

Thread ( A )	M8
Size	2 in
Clamping range ( D )	60 - 64 mm
Width ( B )	110 mm
Height ( H )	86 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	46 mm
Locking screw	M5
Max. recom. static load (centr. tension) ( N_rec )	1 kN
Amount	50 pcs.
GTIN (EAN-Code)	4006209635025

Thread ( A )	M10
Size	2 1/2 in
Clamping range ( D )	74 - 78 mm
Width ( B )	130 mm
Height ( H )	100 mm
Width x thickness clamp band ( b x s )	25 x 1.5 mm
Height ( Z )	55 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,3 kN
Amount	25 pcs.
GTIN (EAN-Code)	4006209635056

Thread ( A )	M10
Size	3 in
Clamping range ( D )	87 - 92 mm
Width ( B )	141 mm
Height ( H )	114 mm
Width x thickness clamp band ( b x s )	25 x 1.5 mm
Height ( Z )	61 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,3 kN
Amount	25 pcs.
GTIN (EAN-Code)	4006209635131

Thread ( A )	M10
Size	4 in
Clamping range ( D )	102 - 116 mm
Width ( B )	172 mm
Height ( H )	140 mm
Width x thickness clamp band ( b x s )	25 x 2.0 mm
Height ( Z )	74 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	2 kN
Amount	20 pcs.
GTIN (EAN-Code)	4006209635209

Thread ( A )	M8 / M10
Size	5 in
Clamping range ( D )	133 - 141 mm
Width ( B )	198 mm
Height ( H )	174 mm
Width x thickness clamp band ( b x s )	25 x 2.5 mm
Height ( Z )	95 mm
Locking screw	M8
Max. recom. static load (centr. tension) ( N_rec )	2 kN
Amount	10 pcs.
GTIN (EAN-Code)	4006209635377
