Seismic wire cable system FWI-S

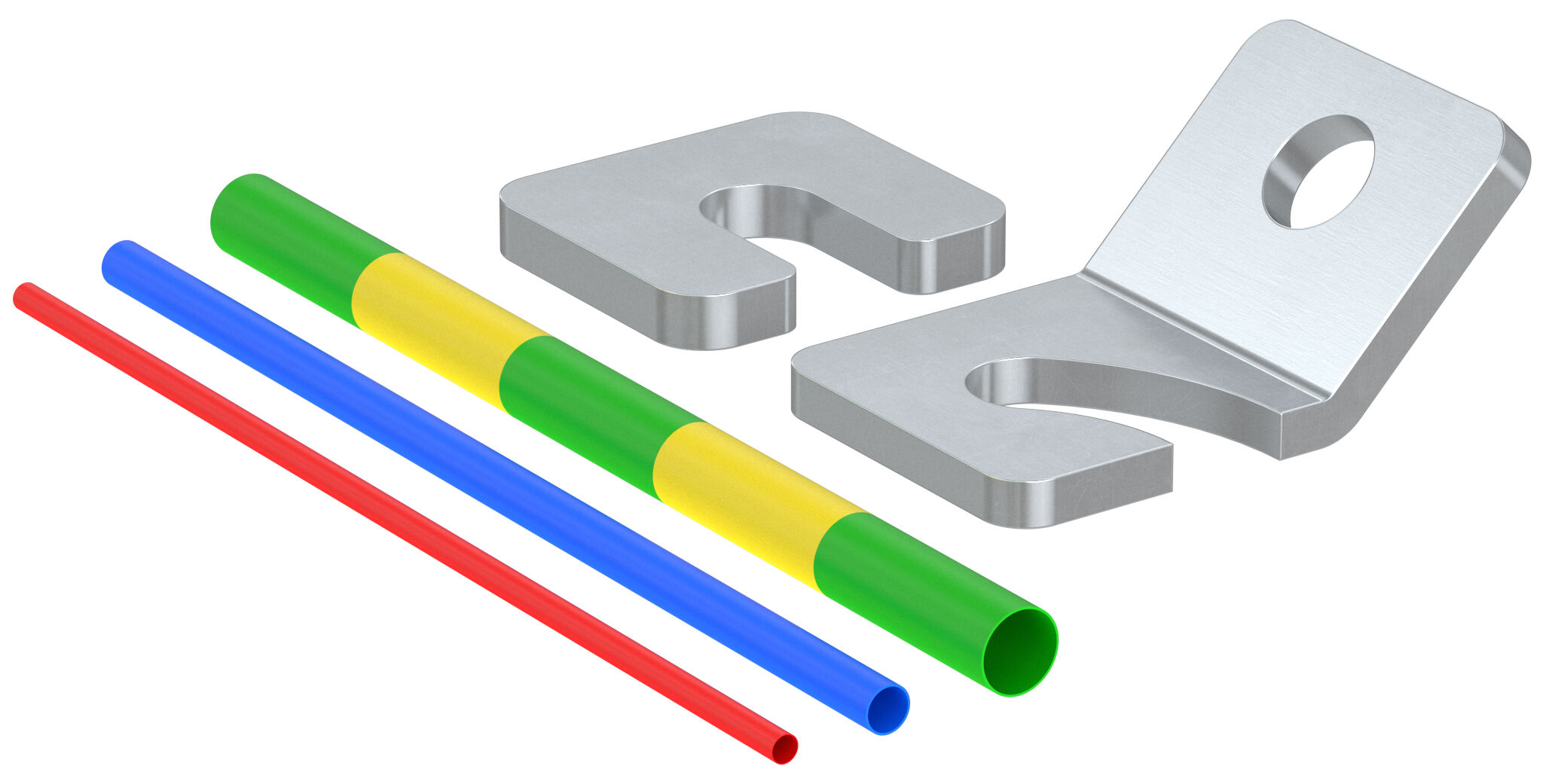

  • Product Picture: "fischer wire cable system FWI-S spare kit"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 569513

      fischer wire cable system FWI-S spare kit

      Product variants
      Download of image data
      Top Features
      • 1 x red PVC sleeve
      • 1 x blue PVC sleeve
      • 1 x green/yellow PVC sleeve
      • 1 x retrofit bracket
      • 1 x restraint washer

      The advantages / Product description

      Spare parts kit with 3 colored PCV hoses, retrofit and retaining plate
      Advantages
      Cost-effective replacement for lost or damaged components on FWI-S wire cable kits
      The FWI-S spare part kit includes 3 coloured PVC sleeves in red, blue and yellow/green as well as a retrofit bracket and restraint washer to replace lost or damaged components on existing FWI-S wire cable kits.
      Properties
      • Material stamped and bent parts: steel (material no. 1.0038)
      • Material protective sleeve: PVC
      • Corrosion protection: zinc lamella coating

      Application and approval

      Applications
      • As a replacement for lost components from the FWI-S wire rope kits with 3 colored PVC tubes, retrofit plate and retaining plate.
      • For use in dry interior areas.

      Assembly instruction

      Installation FWI-SR / FWI-SB
      1 / 7
      • 1
        Installation FWI-SR / FWI-SB
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      Installation FWI-SGY
      1 / 8
      • 1
        Installation FWI-SGY
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8

      Technical data

      Diameter retrofit bracket (
      B
      )      		13 mm
      Contents 1 x PVC hose red
      1 x PVC hose blue
      1 x PVC hose green/yellow
      1 x Restraint washer
      1 x Retrofit bracket
      Amount 2 pcs.
      GTIN (EAN-Code) 4048962496734
