Axial slider medium FASM
  • Product Picture: "fischer Axial Slider medium FASM1 M10/12 hot-dip galvanised hdg"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-Nr. 573330

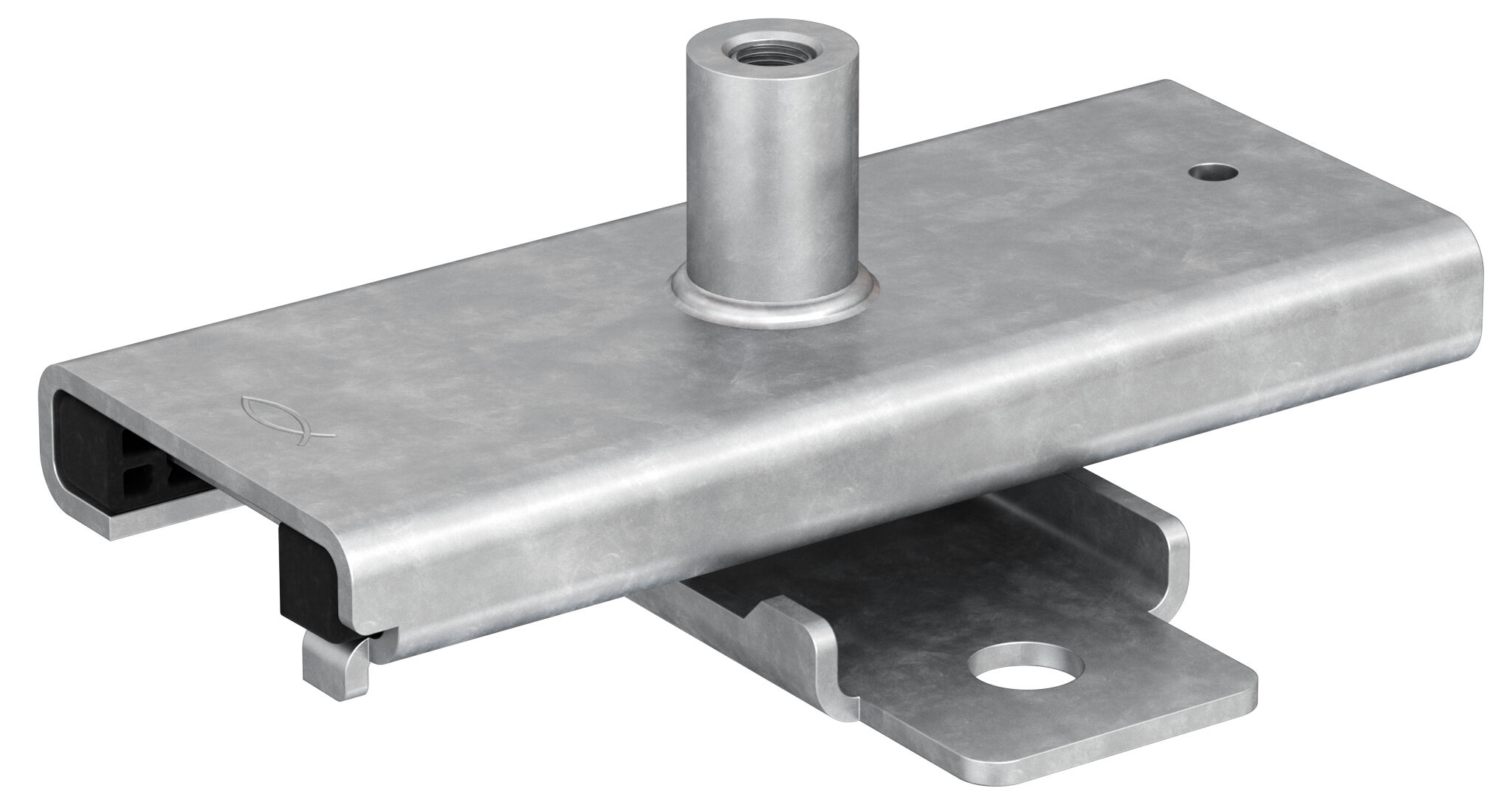

      fischer Axial Slider medium FASM1 M10/12 hot-dip galvanised hdg

      Produktvarianten
      Download of image data
      Top Features
      • Fire test report according to MLAR R30 up to a maximum of R120.
      • Application as upright or hanging slider.
      • Sliding path of 100 or 150 mm possible.
      • Compatible with the FUS and FMS channel systems.

      Die Vorteile / Produktbeschreibung

      The medium axial slider with single or double mount and combination connection thread
      Advantages
      • The FASM can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
      • The low sliding friction of the plastic sliding rails enables optimum force application at the fixed point.
      • The large sliding path and the long slide rails allow large expansions to be accommodated without any problems.
      • The base plate of the FASM is compatible with the FUS and FMS channel systems and allows fixing with one or two screws.
      • A cross-slide function of the FASM is possible with the FCSM cross slider as well as with the FASL2 M10.
      The FASM Axial Slider is used for absorbing pipe expansions and is recommended for medium pipes up to DN150. The FASM has a maximum sliding range of 100 mm / 150 mm and a maximum load capacity of 3,0 kN. fischer offers the FASM with a metric combination thread M10/M12. The FASL can be used for upright or suspended mounting. The galvanized version is suitable for installations in buildings. The Axial Slider FASM2 guarantees an additional plus in safety thanks to the fire protection certificate.
      Properties
      • Material: steel
      • Zinc plating: hot-dip galvanised
      • Sliding strip material: glass fiber reinforced polyamide
      • Thermal capacity: -30 °C to +130 °C

      Anwendung und Zulassung

      Applications
      • Heating pipes
      • Cooling lines
      • Steam pipes
      • Hot water and circulation pipes
      • Media lines with thermal expansion

      Montageanleitung

      Installation FASM on FUS channel
      1 / 6
      • 1
        Installation FASM on FUS channel
      • 2
      • 3
      • 4
      • 5
      • 6
      Cross-slide function through double mounting with FASL2 M10
      1 / 3
      • 1
        Cross-slide function through double mounting with FASL2 M10
      • 2
      • 3
      Cross-slide function with FCSM
      1 / 2
      • 1
        Cross-slide function with FCSM
      • 2
      Installation FASM with central fixing on FUS channel
      1 / 6
      • 1
        Installation FASM with central fixing on FUS channel
      • 2
      • 3
      • 4
      • 5
      • 6

      Technische Daten

      Thread (
      A
      )      		M10 / M12
      Length (
      L
      )      		160 mm
      Width (
      B
      )      		140 mm
      Height (
      H
      )      		63 mm
      Thickness (
      S
      )      		3 mm
      Max. recommended static load (suspended) (
      Nrec
      )      		2,5 kN
      Max. recommended static load (upright) (
      Nrec
      )      		2,5 kN
      Static friction factor (
      µh
      )      		0.13
      Sliding friction factor (
      µg
      )      		0.10
      Max. sliding distance 100 mm
      Amount 10 pcs.
      GTIN (EAN-Code) 4048962527223
