Cross slider FCSM
  • Product Picture: "fischer Cross Slider medium FCSM M12"

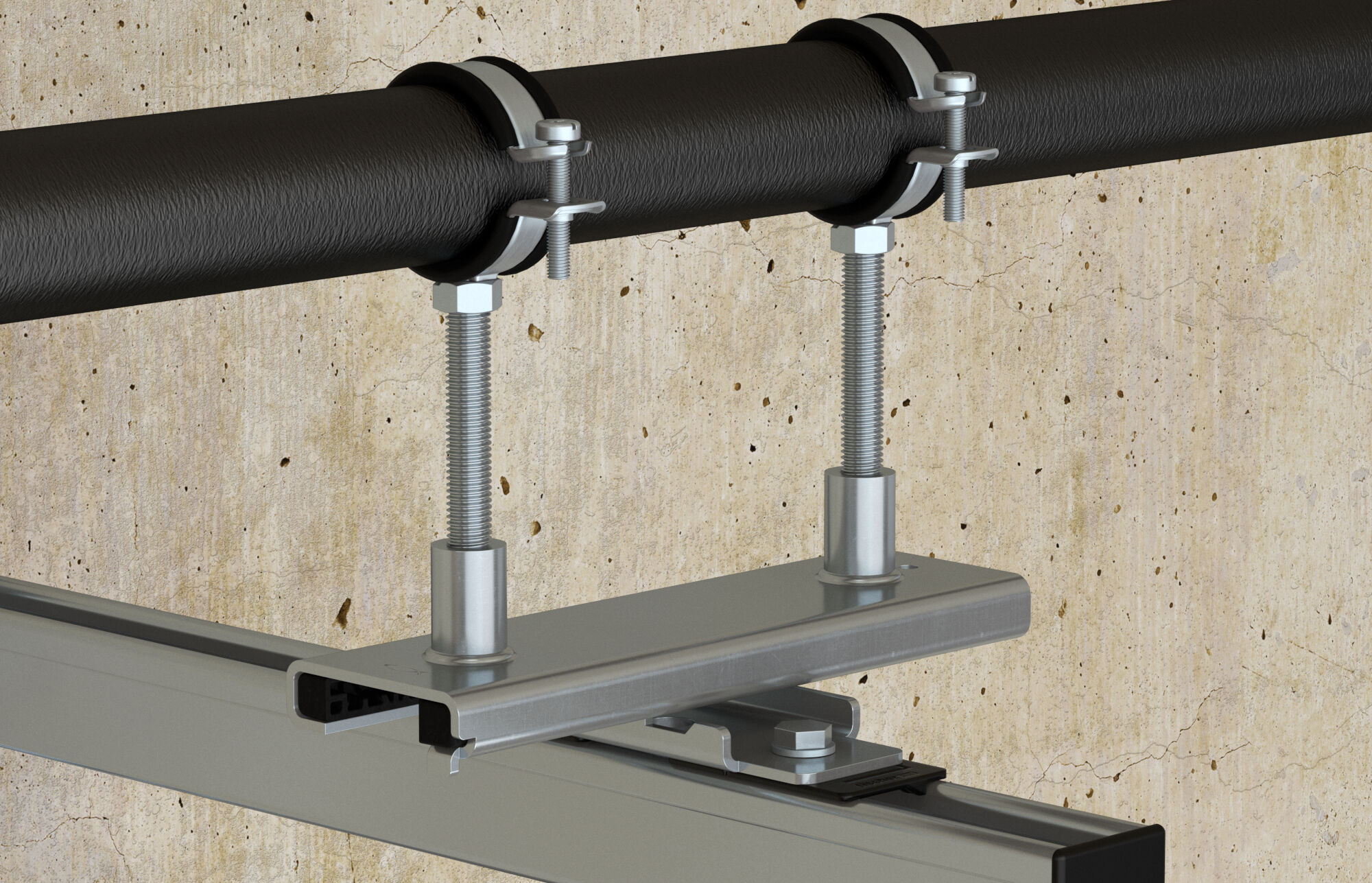

  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 567955

      fischer Cross Slider medium FCSM M12

      Product Variant
      Download of image data
      Top Features
      • Cross slider as rail slider for the FUS mounting channels.
      • Simple installation by inserting and rotating by 45°.
      • Compatible with all axial and roller sliders.

      Your advantages / Product description

      The channel slider for all load levels
      Advantages
      • The simple connection of the FCSM Cross Slider with the FUS mounting channels by simply inserting and rotating by 45° also allows subsequent installation at any position.
      • Due to the application as a upright slider in the FUS mounting channels, the FCSM is the universal cross slider substructure for all axial and roller sliders.
      • The unique design and the use as a single glider or double glider enable a high load capacity.
      • The low sliding friction of the plastic sliding surface minimizes resistance during lateral expansion.
      The FCSM Cross Slider is used for absorbing pipe expansions and is recommended for light to heavy pipes up to DN350. The channel slider can be inserted at any position in the FUS mounting channels. The maximum load capacity per slider is 5.0 kN, always using two FCSM in the application as a lateral slider. fischer offers the FCSM with a metric M12 thread to match the axial sliders. The FCSM is intended for upright installations. The hot-dip galvanized steel version is suitable for installations in- and outdoors.
      Properties
      • Material: Steel
      • Zinc plating: hot-dip galvanised
      • Material plastic components: glass fiber reinforced polyamide
      • Thermal capacity: -30 °C to +130 °C

      Application and approval

      Applications
      • Heating pipes
      • Cooling lines
      • Steam pipes
      • Hot water and circulation pipes
      • Media lines with thermal expansion

      Technical Data

      Thread (
      A
      )      		M12
      Length (
      L
      )      		65 mm
      Width (
      B
      )      		40 mm
      Height (
      H
      )      		21 mm
      Thickness (
      S
      )      		2 mm
      Max. recommended static load (upright) (
      Nrec
      )      		5 kN
      Amount 50 pcs.
      GTIN (EAN-Code) 4048962482812
