Grouting mortar
  • Product Picture: "fischer CreNovate FCRM-G R4 AR 25 kg"

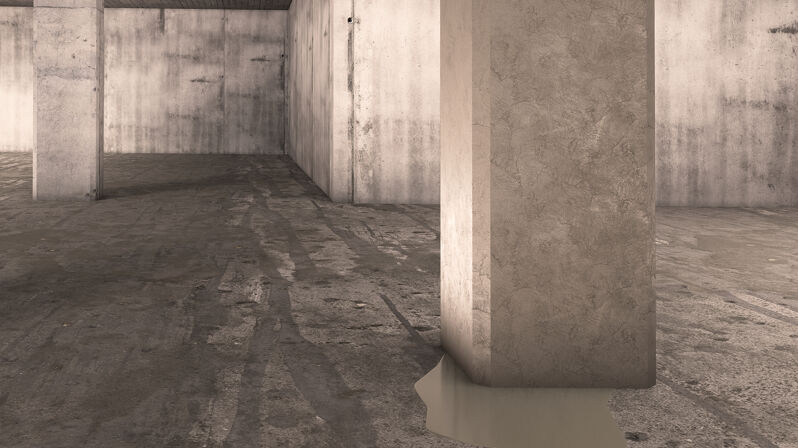

  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 574223

      fischer CreNovate FCRM-G R4 AR 25 kg

      Product Variant
      Download of image data
      Top Features
      • Self-levelling grout for concrete repair works
      • Highest requirement class R4 according to harmonized norm EN 1504-3 with early strength development (Class A)
      • Additionally approved for anchoring according to EN 1504-6
      • Usable for load-bearing connections between concrete parts or machines and other metal components

      Your advantages / Product description

      Self-levelling grout for concrete repair and load-bearing connections
      Advantages
      • Highest requirement class R4 according to EN 1504-3
      • Pourable grout
      • Approved for anchoring according to EN 1504-6
      FCRM-G R4 AR is a pourable grout with excellent strength development and additional certifications for load-bearing anchoring. As part of the CreNovate FCRM (fischer Concrete Repair Mortar) assortment, it is a cement-based repair mortarof the highest requirement class R4 according to EN 1504-3.
      Properties
      • Self-levelling, chloride-free and water-tight
      • Compression strenght of 90 N/mm²
      • Seamless bond without cracks or voids, resulting in smoother machine operation
      • Resistant to frost and de-icing salt
      • Class R4 cementitious grout for statically relevant applications (EN 1504-3)
      • Very high flowability (f3 consistency class acc.to DAfStb RL)
      • Early strength development (Class A)

      Application and approval

      Applications
      • Class R4 cementitious grout for statically relevant applications (EN 1504-3) with very high flowability (f3 consistency class acc.to DAfStb RL)
      • Self-levelling, chloride-free and water-tight
      • Early strength development (Class A)
      • Indoor and outdoor
      • Load-bearing connection between concrete substrate and machines as well as other metal components
      • Load-carrying connection of pre-fabricated concrete structures in sleeve foundations
      • Void-free bonding between mounting parts and concrete
      Building materials
      concrete
      You can find detailed information on building materials in the approval document.
      Approval
      • DoP No. BS-017
      • DoP No. BS-018

      Assembly instruction

      Functionality
      Application by pouring or pumping
      1 / 2
      • 1
      • 2

      Technical Data

      Contents 25 kg
      Processing time 90 min
      Single layer thickness 5 - 100 mm (single layer)
      Shelf life 12 months
      Fresh mortar density 2,3 g/cm³
      Requirement class R4
      Max. grain size 1 mm
      Capillary water absorption (
      kg / (m²h0,5)
      )      		0.5
      Flexural tensile strength 10 N/mm²
      Adhesive tensile strength 2 N/mm²
      Packaging Sack
      Amount 1 pcs.
      GTIN (EAN-Code) 4048962534269

      Documents for Downloading

      • ETAs and DoPs
      • Safety data sheets
      • Technical documents
      • Sales materials
      DOP - Declaration of Performance
      pdf, DoP No. BS-017
      Declaration of Performance for fischer CreNovate FCRM-G R4 AR
      Created on 09/16/2024
      DOP - Declaration of Performance
      pdf, DoP No. BS-018
      Declaration of Performance for fischer CreNovate FCRM-G R4 AR
      Created on 09/16/2024
