Repair mortar (Class R2, R3 & R4 acc. to EN 1504-3)

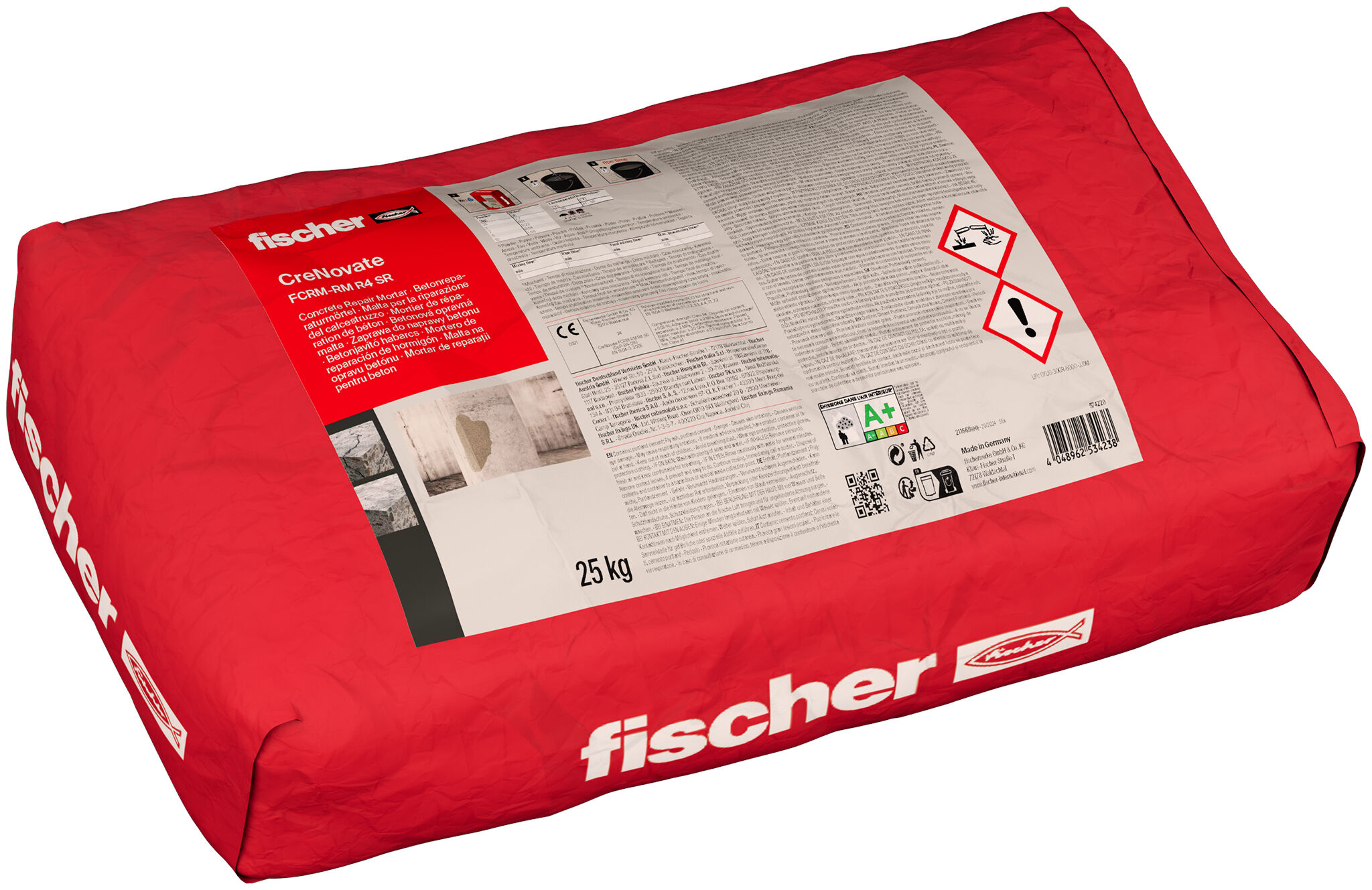

  • Product Picture: "fischer CreNovate FCRM-RM R4 SR 25 kg"
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Art.-No. 574220

      fischer CreNovate FCRM-RM R4 SR 25 kg

      Product Variant
      Download of image data
      Top Features
      • Highest requirement class R4 according to harmonized norm EN 1504-3
      • High E-Modulus (Young's modulus) of 25.000 N/mm²
      • Resistant to diverse environmental exposure classes as well as highly sulphate resistant

      Your advantages / Product description

      Highly sulphate resistant repair mortar for structurally relevant repair of concrete structures
      Advantages
      • Highest requirement class R4 according to EN 1504-3
      • Highly sulphate resistant
      • Manual application or wet-spray application
      • Suitable for drinking water contact, repair of drinking water structures
      The FCRM-RM R4 SR is a highly suplhate resistant cement-based mortar for concrete repair. With fulfilling the highest requirements R4 according to EN 1504-3, it is suited for a variety of repair demands, additonally also including drinking water applications. As part of the CreNovate FCRM (fischer Concrete Repair Mortar) assortment, it can be ideally combined with accompanying products for a perfect finish and longlasting concrete repair.
      Properties
      • High sulphate resistance
      • Well suited for overhead application
      • Reduced effective alkali content
      • Low shrinkage
      • Freeze-thaw resistant
      • High dynamic E-modulus of 25.000 N/mm²
      • High resistance to chloride penetration

      Application and approval

      Applications
      • Class R4 universal concrete repair mortar for concrete reprofiling
      • Suitable for wet-spray application
      • Suitable for drinking water contact
      • Indoor and outdoor
      • Hand application and wet spraying
      • Repair of drinking water structures
      Building materials
      Concrete
      You can find detailed information on building materials in the approval document.
      Approval
      • DoP No. BS-015

      Assembly instruction

      Functionality
      Hand application with spatula / trowel; wet-spray application
      1 / 3
      • 1
      • 2
      • 3

      Technical Data

      Contents 25 kg
      Processing time 60 min
      Single layer thickness 5 - 50 mm (double layer)
      Shelf life 12 months
      Fresh mortar density 2 g/cm³
      Requirement class R4
      Max. grain size 2 mm
      Capillary water absorption (
      kg / (m²h0,5)
      )      		0.5
      Compressive strength 50 N/mm²
      Flexural tensile strength 8 N/mm²
      Adhesive tensile strength 2 N/mm²
      Packaging Sack
      Amount 1 pcs.
      GTIN (EAN-Code) 4048962534238

      Documents for Downloading

      • ETAs and DoPs
      • Safety data sheets
      • Technical documents
      • Sales materials
      DOP - Declaration of Performance
      pdf, DoP No. BS-015
      Declaration of Performance for fischer CreNovate FCRM-RM R4 SR
      Created on 09/16/2024
