      For the safe one-man installation of washbasins.

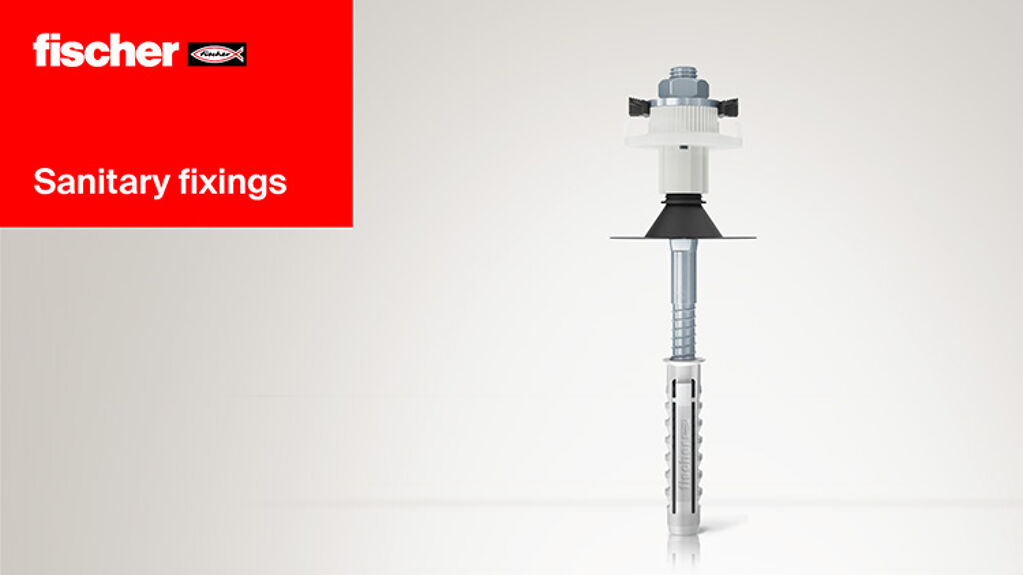

      Washbasin fixing WST Klik Plus

      For the first time, the fischer WST Klik fixing set enables safe and simple one-man installation of washbasins on tiles. The set consists of two high-quality fischer nylon expansion plugs SX Plus, two hanger bolts made of galvanised steel, as well as a fixing sleeve made of consistent plastic. The click system prevents the washbasin from tilting back, allowing it to be optimally aligned without much effort. With the fischer SX Plus expansion plug, the set can be used for a wide range of building materials, such as concrete, aerated concrete, solid and perforated bricks.
      Variantes
      Download of image data

      Variantes

      2 Variantes
      Drill diameter
      Min. drill hole depth
      Anchor length
      Screw dimension
      Max. fixture thickness
      Amount
      Vu 2 de 2 variante (s)

      Les avantages / Description du produit

      Advantages
      • The complete mounting set including the fixing sleeve enables safe and quick mounting. The "click" sound confirms correct mounting.
      • By engaging the two sleeves, the washbasin can no longer tilt forward, enabling easy one-man assembly.
      • By turning the black sleeve, the washbasin can be optimally aligned and adjusted afterwards.
      • The aging- and chemical-resistant fixing sleeve made of consistent plastic guarantees permanently secure fastening.
      • The enclosed fischer SX Plus plug enables installation in many building materials, such as concrete, aerated concrete and masonry made of solid or perforated construction material.
      • Due to the plug-in system of the fixing, the washbasin can be easily disassembled.

      Application et autorisation

      Applications
      • Washbasins
      Building materials
      • Concrete
      • Vertically perforated brick
      • Concrete hollow block
      • Perforated sand-lime brick
      • Solid sand-lime brick
      • Natural stone with dense structure
      • Aerated concrete
      • Solid plaster boards
      • Light concrete solid block
      • Solid brick
      * Vous trouverez des informations détaillées sur les matériaux de construction dans le document d'inscription.

      Instructions de montage

      Functionality
      • The SX Plus is suitable for push-in and push-through installation. When screwing in the screw, the SX Plus expands in four directions and thus securely fixes into the building material.
      • The single parts of the fixing sleeve are mounted in advance in the opening of the ceramic back panel and plugged into each other.
      • The washbasin is then slipped over the pre-assembled screws and pushed onto the wall by pressing the black clips together.
      • After the fixing sleeve has engaged, the washbasin no longer rocks forward. This allows the washbasin to be optimally aligned and then fixed with the nut.
      • The maximum load capacity is only achieved when the minimum screw-in depth is reached. Tiles and plaster are considered as non-load-bearing substrates.
      1 / 7
      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7

      Documents à télécharger

      • Technical documents
      Load Table
      pdf,
      Washbasin fixing WST Klik Plus in combination with expansion plug SX Plus
