      Pre-assembled central and end clamps for PV panels with aluminium frame.

      Pre-assembled clamps PM C and PM F

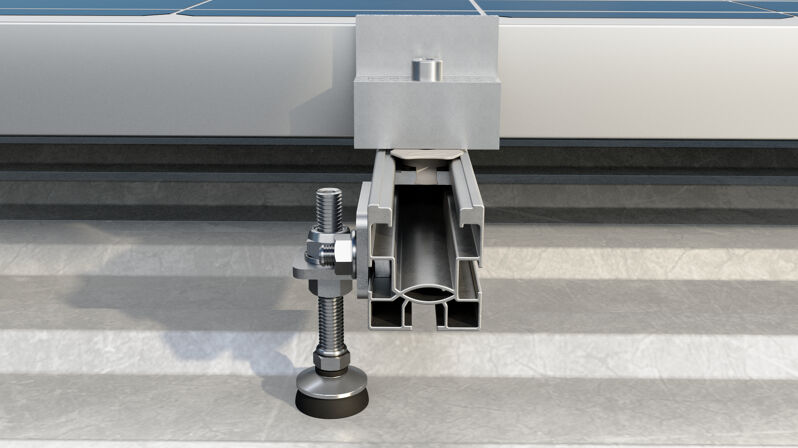

      PM is the pre-assembled clamp for PV panels with aluminium frame. Available in the PM F end clamp or PM C central clamp variants. The PM clamp is available in different variants depending on the thickness of the PV panel. PM features a hammer nut with a special plastic cage to facilitate positioning of the nut inside the central groove of the rail. The spring keeps the clamp raised until it is tightened to facilitate positioning of the PV panel.
      Produktvarianten
      Download of image data

      Produktvarianten

      25 Produktvarianten
      Module thickness
      Weight
      Width across nut (hexagon socket)
      Screw length
      Installation torque
      Amount
      Mehr Ergebnisse
      Gesehen 18 von 25 Variante(n)

      Die Vorteile / Produktbeschreibung

      Advantages
      • PM C is used as central clamp, PM F is used as final clamp.
      • Thanks to the spring, the PM pre-assembled clamps stay raised before the fastening, making the PV panels positioning phase easier.
      • Thanks to the plastic element, the clamp clamp stays in position without slipping.
      • Ready to install.
      • Available also in black anodized version.
      Properties
      • PM C and PM F clamps in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013.
      • A2.70 stainless steel Allen screw in accordance with EN ISO 3506-1 /2:2009.
      • FCN AL hammer head nut in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013 and grey nylon PA6.
      • Please note: any oxidation stains are considered characteristic of aluminium. This in no way impairs the functionality of the product and is not covered by the warranty.
      • Black anodized products may shows little scratches due to packaging and transport.

      Anwendung und Zulassung

      Applications

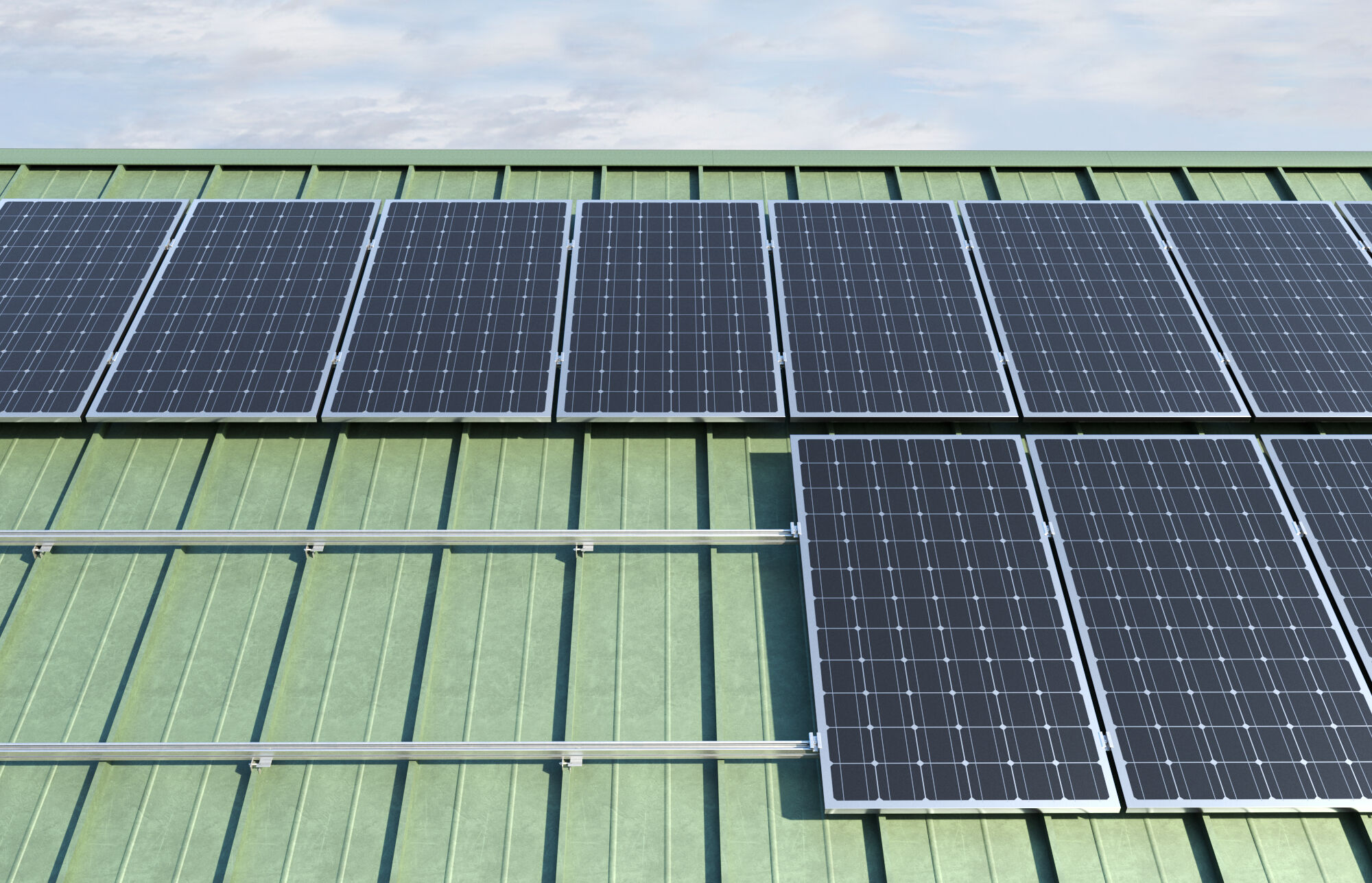

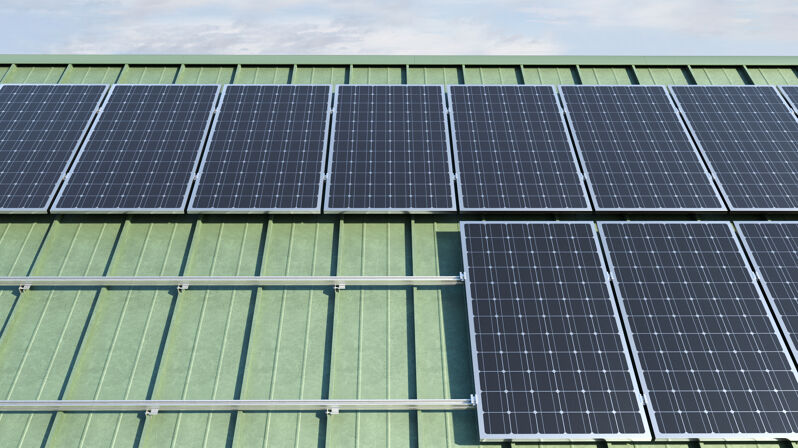

      • Framed PV panels fastening on Solar rails, compatible with SolarFish H33, SolarFish H44, SolarMetal P and SolarMetal L.
      Zulassungen
      • TUV - R 60154136

      Montageanleitung

      Functionality
      • Identify the PV panel thickness and choose the suitable clamp.
      • Insert the hammer head nut of the PM pre-assembled clamp into the rail and turn it 90° clockwise.
      • Place the PV panels in position.
      • Tighten the screw applying a 12 Nm torque.
      Installation end clamp PM F
      1 / 5
      • 1
        Installation end clamp PM F
      • 2
      • 3
      • 4
      • 5
      Installation central clamp PM C
      1 / 5
      • 1
        Installation central clamp PM C
      • 2
      • 3
      • 4
      • 5
