Pre-assembled clamps PM U and PMC U
  • Product Picture: "fischer universal end clamp PM U 30 - 50 AL, Aluminium"
  • Product Picture: "fischer universal end clamp PM U 30 - 50 AL, Aluminium"
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Obj. č. 519784

      fischer universal end clamp PM U 30 - 50 AL, Aluminium

      Varianty výrobku
      Download of image data
      Top Features
      • Universal use for panels from 30 to 50 mm thickness
      • Quick insertion into the profile
      • Flat and with recessed screw to avoid creating shadows
      • Made of aluminium EN AB 46100

      Výhody / popis

      Universal end clamp for PV panels with aluminium frame from 30 to 50 mm thick
      Advantages
      • Full range: the PM U pre-assembled universal clamp can fix all photovoltaic modules with a thickness of 30 mm to 50 mm.
      • Versatile: the PM U pre-assembled universal clamp can be used both as an end clamp and as a central clamp.
      • Fixing: thanks to the smart nut, the PM U pre-assembled universal clamp can be quickly hooked and locked at any point on the support rail.
      • Compact: the recessed screw in the element avoids shadowing on adjacent modules.
      • Convenient: thanks to the spring, the PM U pre-assembled universal clamp remains raised during the tightening phases.
      • Complete: the PM U pre-assembled universal clamp does not require additional elements (for example: screws, gaskets, nuts).
      PM U is the universal clamp for PV panels from 30 to 50 mm thickness, which can be used both as central clamp or end clamp. PM U fits quickly inside the profiles by simply rotating it. Compatible with SolarFish H33, SolarFish H44, SolarFish H83, and SolarMetal rails.
      Properties
      • Clamp in EN AB 46100 aluminium alloy in accordance with EN 755-2:2013.
      • A2-70 stainless steel Allen screw in accordance with EN ISO 3506-1/2:2009.

      Použití a certifikáty

      Applications
      Suitable for:

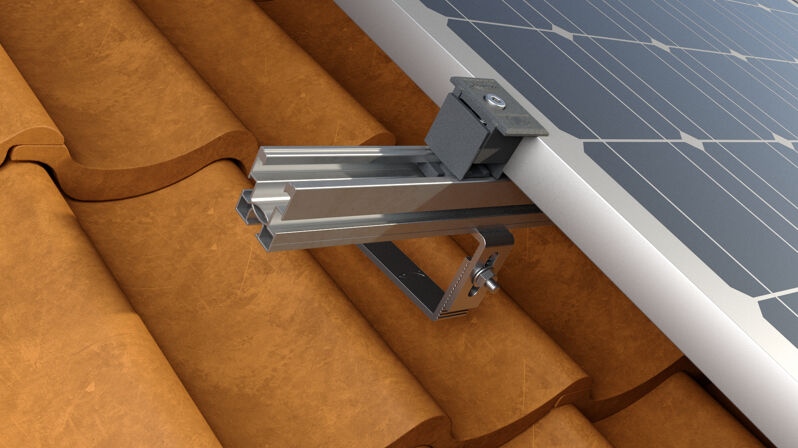

      • Pitched roof systems with hooks

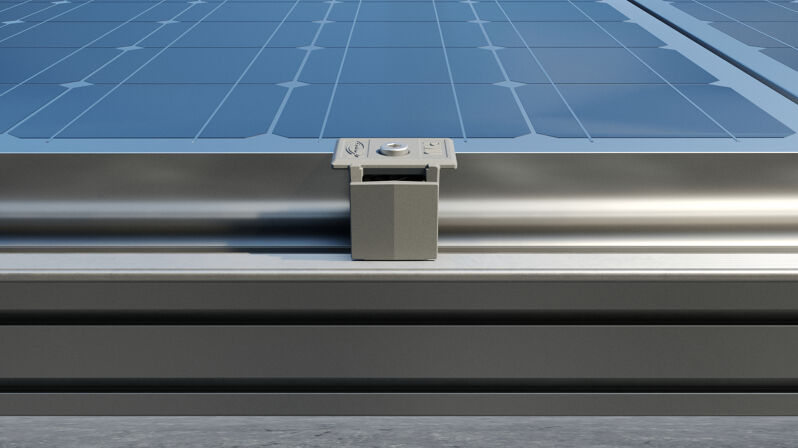

      • Flat roof systems with triangular frames

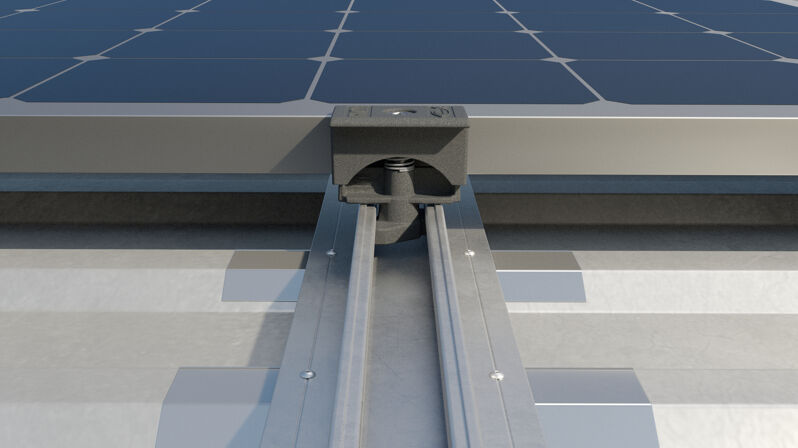

      • Trapezoidal metal sheet roof systems
      • Corrugated sheet roof systems
      • Special structures systems
      To fix PV modules on rails:
      • SolarFish H33
      • SolarFish H44
      • SolarFish H83
      • SolarMetal
      Certifikáty
      • TUV - R 60154136

      Návod k montáži

      Functionality
      • Insert the lower part of the PM U pre-assembled universal clamp into the upper groove of the rail.
      • Turn the PM U pre-assembled universal clamp clockwise to use it as an end clamp and anticlockwise to use it as a central clamp.
      • Lock the PV module by applying a tightening torque of 10 Nm to the Allen screw (TCEI).
      Installation universal clamp PM U usage as end clamp
      1 / 5
      • 1
        Installation universal clamp PM U usage as end clamp
      • 2
      • 3
      • 4
      • 5
      Installation universal clamp PM C U for central use only
      1 / 6
      • 1
        Installation universal clamp PM C U for central use only
      • 2
      • 3
      • 4
      • 5
      • 6
      Installation universal clamp PM U usage as central clamp
      1 / 6
      • 1
        Installation universal clamp PM U usage as central clamp
      • 2
      • 3
      • 4
      • 5
      • 6

      Technické údaje

      Module thickness (
      dp
      )      		30 - 50 mm
      Weight 120 g
      Width across nut (hexagon socket) (
      SW
      )      		6 mm
      Screw length (
      ls
      )      		40 mm
      Installation torque (
      Tinst
      )      		10 Nm
      Amount 10 pcs.
      GTIN (EAN-Code) 8001132028766

      Dokumenty ke stažení

      • Approvals and Certificates
      • Sales materials
      Certificate
      pdf, TUV - R 60154136
      TUV Certificate
      Platí od 01/11/2021
      do 01/11/2026
