Stainless steel hook with thin base GTP A2
  • Product Picture: "fischer roof hook GTP A2 stainless steel A2"
  • Product Picture: "fischer roof hook GTP A2 stainless steel A2"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Application Picture
      Art.-No. 71199

      fischer roof hook GTP A2 stainless steel A2

      Product Variant
      Download of image data
      Top Features
      • Total height: 120 mm
      • Upper fold height: 73 mm
      • Height under the lower fold: 30 mm
      • Suitable for tiles with accentuated overlap
      • Suitable for load-bearing supports that can be used along their entire surface
      • Made of AISI 304 stainless steel.

      Your advantages / Product description

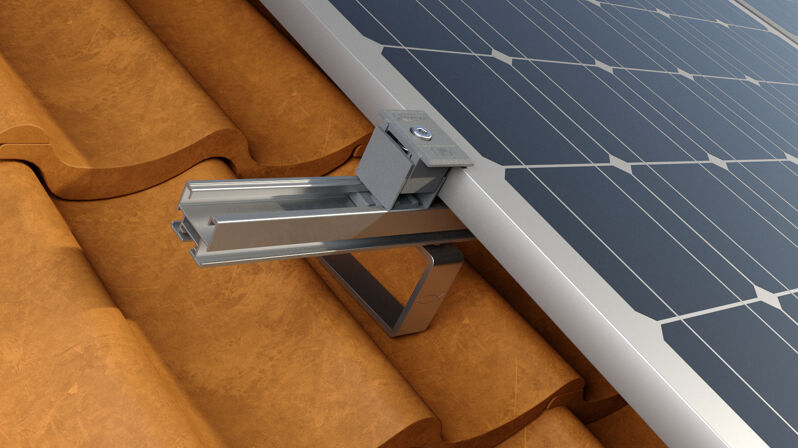

      Stainless steel hook with fixed height for the installation of photovoltaic systems on tiled roofs with a maximum thickness of 30 mm without ventilation strip.
      Advantages
      • The accessories for connecting to the Solar rails are already included in the package.
      • Suitable for tiles without a ventilation layer with a total thickness of up to 30 mm.
      • It also enables installation with heavily overlapping tiles.
      GTP is the AISI 304 stainless steel hook with fixed height for building structures of photovoltaic systems on roof tiles with a total thickness of up to 30 mm without ventilation strip. The system already contains screws for connection to the rail.
      Properties
      • X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.
      • Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.

      Application and approval

      Applications

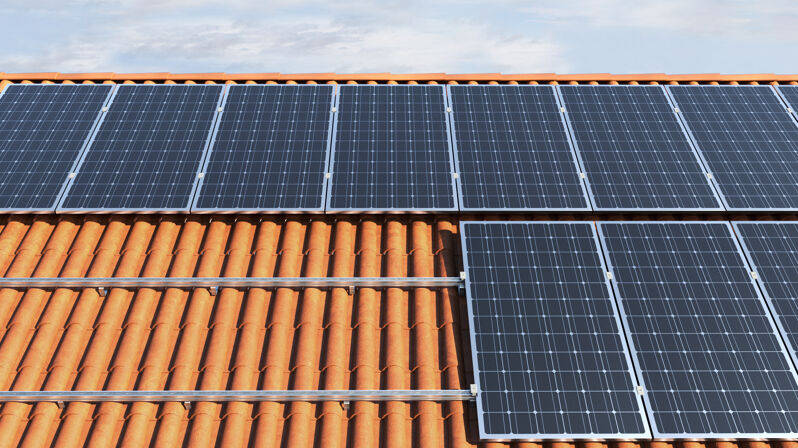

      Suitable for pitched roof systems with:
      • SolarFish H33
      • SolarFish H44
      Approval
      • TUV - R 60154136

      Assembly instruction

      Functionality
      • Determine the centre distance of the hooks according to the snow and wind loads in the installation area.
      • Determine the position of the hooks according to the load-bearing structure and system layout.
      • Lift the tile and secure the hook using the appropriate anchor determined according to the type and layers of the support.
      • Connect the hook to the rail used by inserting the supplied screws inside the lower groove of the rail.
      Installation stainless steel hook with thin base GTP A2
      1 / 6
      • 1
        Installation stainless steel hook with thin base GTP A2
      • 2
      • 3
      • 4
      • 5
      • 6

      Technical Data

      Total height 120 mm
      Installation torque (
      Tinst
      )      		10 Nm
      Width across nut 13 mm
      Weight 0,52 kg
      Contents 10 x Hook GTP A2
      10 x Hexagon head screw SKS M8 x 20 A2
      10 x Hexagon nut MU F M8 A2
      Amount 10 pcs.
      GTIN (EAN-Code) 8001132711996

      Documents for Downloading

      • Approvals and Certificates
      • Sales materials
      Certificate
      pdf, TUV - R 60154136
      TUV Certificate
      Valid from 01/11/2021
      to 01/11/2026
