Rail SolarMetal P AL

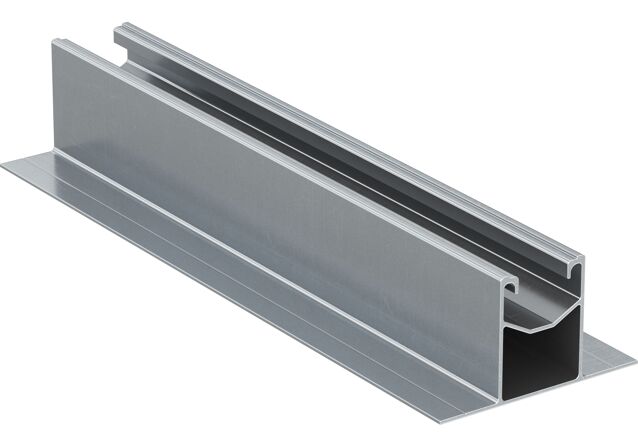

  • Product Picture: "fischer rail SolarMetal P H50 300 mm AL Aluminium"
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
    • Application Picture
      Art.-No. 574514

      fischer rail SolarMetal P H50 300 mm AL Aluminium

      Product Variant
      Download of image data
      Top Features
      • Rail for fastening PV panels with portrait orientation on trapezoidal metal sheets.
      • The height of 50 mm improves ventilation.
      • Compatible with the installation of photovoltaic optimisers.
      • Compatible with ALG rivets or self-drilling Solar Screw 6x25 EPDM.

      Your advantages / Product description

      Rail for photovoltaic systems on trapezoidal metal sheet roofs. Suitable for panels running along the long side parallel to the trapezoidal rails.
      Advantages
      • Short rails for cost optimisation and no problems with thermal expansion.
      • Flat and wide base allows two fixing points on each rib.
      • Suitable for the entire fischer clamp range.

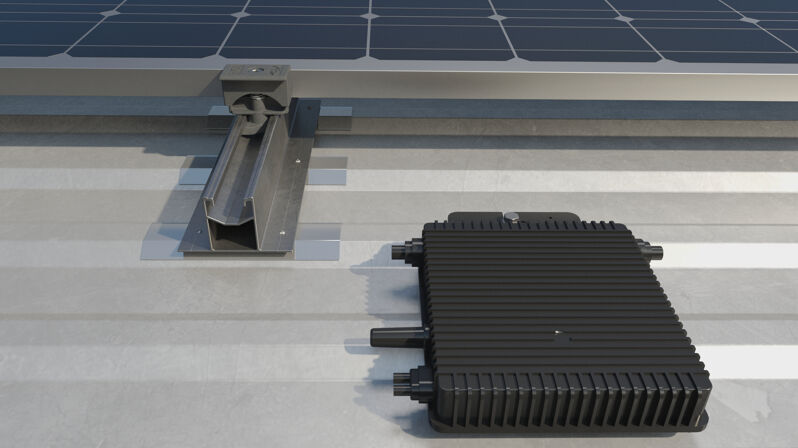

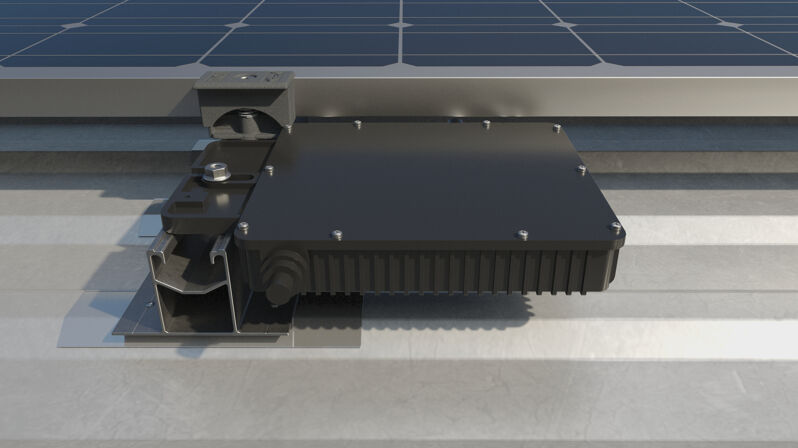

      • SolarMetal P H50 is compatible with the installation of photovoltaic optimizers: the 50 mm height supports improving the ventilation of the modules.
      SolarMetal P AL is an aluminium rail for PV panels mounting systems on trapezoidal metal sheets, suitable for portrait oriented modules. It is quick to install, thanks to the ALG rivets, and easy to use: the PV modules can be easily installed with clamps. Easy cross joints can be realized through the top groove of the rail using the FNC AL hammer head nut, the MW bracket and the SKS M 8 hexagonal head screw.
      Properties
      • Aluminium alloy AW 6060 T6 in accordance with EN 755-2:2013.
      • Please note: any oxidation stains are considered characteristic of aluminium. This in no way impairs the functionality of the product and is not covered by the warranty.

      Application and approval

      Applications

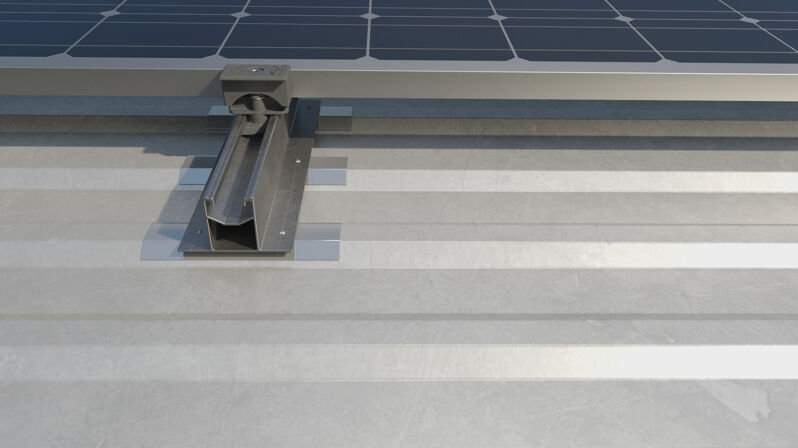

      • Installation of portrait oriented photovoltaic panels on trapezoidal sheet roofs.

      Assembly instruction

      Functionality
      • Choose between long and short rails depending on the installation layout and taking into account thermal expansion.
      • Determine the centre distance of the fastenings according to the trapezoidal metal sheet geometry, snow and wind loads (use SOLARPANEL-FIX software to design the system).
      • Stick a layer of CG INT butyl adhesive tape (minimun lenght 80 mm) on the trapezoidal metal sheet rib before applying and fixing the rail.
      • Position the rail on the trapezoidal metal sheet.
      • If fixing with ALG rivets, drill the rail and the sheet together with a 5.5mm diameter drill bit.
      • For fixing with EPDM self-drilling Solar screw, pre-drill the rail, then place it on the sheet and screw the self-drilling screw through the pre-drilled hole.
      • Seal the rivets or screws with fischer SB - Bitumen Sealant.
      Installation rail SolarMetal P H25 AL with rivets
      1 / 5
      • 1
        Installation rail SolarMetal P H25 AL with rivets
      • 2
      • 3
      • 4
      • 5
      Installation rail SolarMetal P H25 AL with screws
      1 / 5
      • 1
        Installation rail SolarMetal P H25 AL with screws
      • 2
      • 3
      • 4
      • 5

      Technical Data

      Weight 1,05 kg/m
      Amount 30 pcs.
      GTIN (EAN-Code) 8001132121894
