Dot and Dab Fixing DDF
  • Product Picture: "fischer Dot and Dab fixing DDF 10 x 100 FUS"
  • Product Picture: "fischer Dot and Dab fixing DDF 10 x 100 FUS"
  • Packaging: "fischer Dot and Dab fixing DDF 10 x 100 FUS"
  • Packaging: "fischer Dot and Dab fixing DDF 10 x 100 FUS"

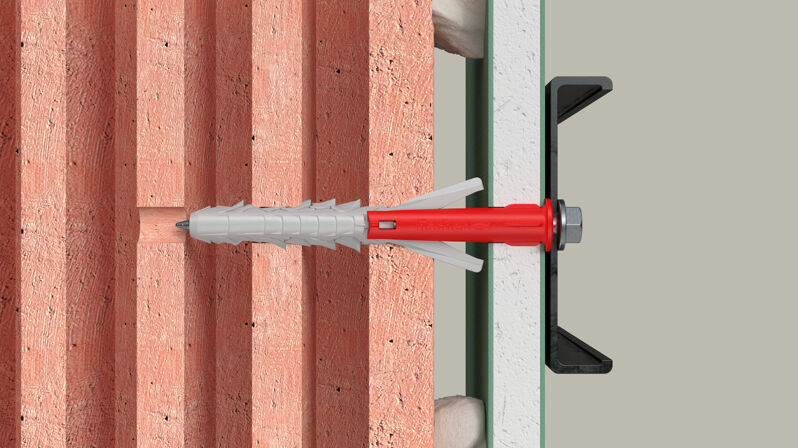

  • Application Picture

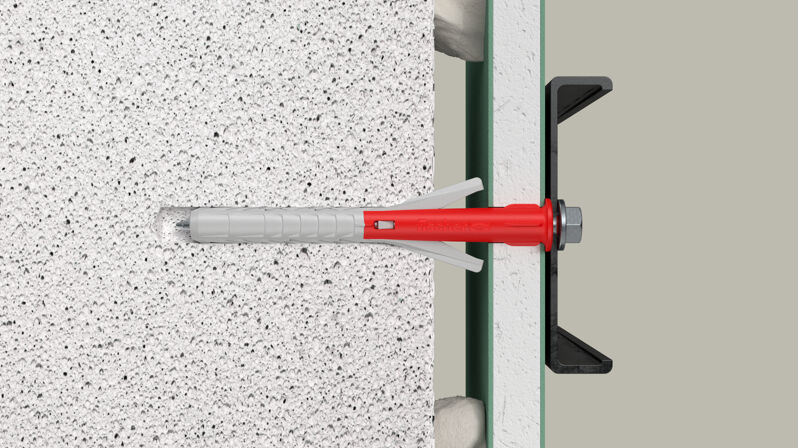

  • Application Picture
  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Packaging
    • Packaging
    • Application Picture
    • Application Picture
    • Application Picture
    • Application Picture
      Art.-No. 575286

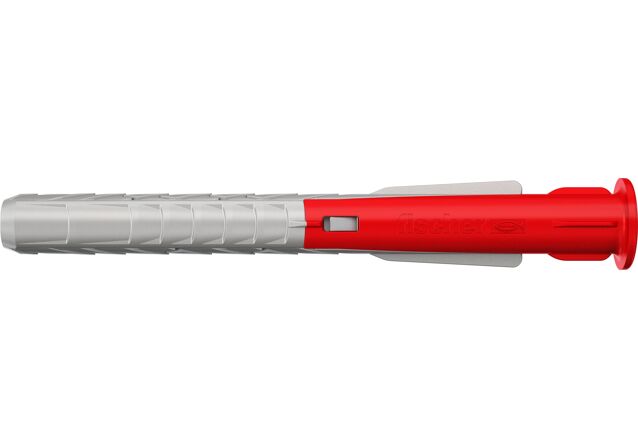

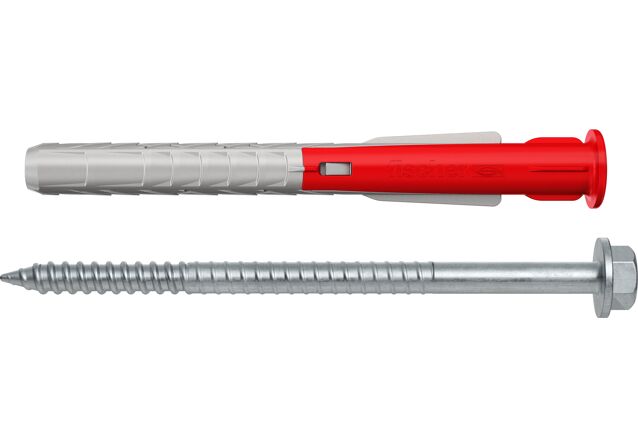

      fischer Dot and Dab fixing DDF 10 x 100 FUS

      Product Variant
      Download of image data
      Top Features
      • The gap behind the plasterboard is powerfully bridged and thus the plasterboard is not pulled in or destroyed.
      • Loads are evenly distributed into the substrate due to the plug geometry.
      • 2-component technology for high loads.
      • The matching fischer safety screw is included in the scope of delivery.

      Your advantages / Product description

      The powerful solution for Dot and Dab walls
      Advantages
      • The long expansion element, comparable to SXRL, distributes the load evenly into the solid and hollow masonry and guarantees outstanding load values.
      • The lateral long wings splay in the substrate and ensure a secure hold.
      • The red fiberglass-reinforced plastic shaft powerfully bridges the gap behind the plasterboard. The plasterboard is not dented.
      • The ribs on the shaft prevent the plug from turning for a convenient installation.
      • The safety screw included in the scope of delivery is optimally matched to the plug and ensures easy installation.
      The plug DDF is the powerful solution for Dot and Dab walls where plasterboards are attached to the masonry using plaster or wooden battens. The red fiberglass-reinforced plastic shaft powerfully bridges the gap between the plasterboard and the load-bearing wall. The long expansion element made of grey high-quality nylon ensures strong and secure hold in the substrate. The plug DDF is ideally suited to fix heavy attachments such as swivelling TV brackets, radiators, heavy shelves or wall cabinets. The fischer safety screw with integrated washer and additional TX drive is included in the scope of delivery for an easy installation.

      Application and approval

      Applications
      For Dot and Dab walls and fastening of:
      • TV brackets
      • Radiators
      • Heavy shelves
      • Kitchen cabinets
      Building materials
      • Concrete
      • Solid brick
      • Solid sand-lime brick
      • Solid block made from lightweight concrete
      • Vertically perforated brick
      • Perforated sand-lime brick
      • Hollow blocks made from lightweight concrete
      • Aerated concrete
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • The DDF is suitable for pre-positioned installation.
      • The red shaft bridges the cavity behind the plasterboard.
      • The maximum distance from the top edge of the plaster board to the top edge of the base material is 45 mm.
      • The long expansion element distributes the loads evenly into the solid and hollow masonry.
      • The lateral long wings also splay in the substrate.
      • Attachments up to 10 mm thick can be mounted using the included safety screw.
      Installation DDF in concrete
      1 / 5
      • 1
        Installation DDF in concrete
      • 2
      • 3
      • 4
      • 5
      Installation DDF in hollow building materials
      1 / 4
      • 1
        Installation DDF in hollow building materials
      • 2
      • 3
      • 4

      Technical Data

      Drill diameter (
      d0
      )      		10 mm
      Min. drill hole depth (
      h1
      )      		110 mm
      Anchor length (
      l
      )      		100 mm
      Min. effect. anchorage depth (
      hef
      )      		55 mm
      Max. distance (
      a
      )      		45 mm
      Max. fixture thickness (
      t fix
      )      		10 mm
      Screw dimension (
      ds x ls
      )      		6,0 x 107 mm
      Drive TX30 / SW 10
      Contents 50 x plug DDF 10 x 100
      50 x hexagon head screw 6.0 x 107 mm with integrated washer
      Amount 50 pcs.
      Packaging Folding box
      GTIN (EAN-Code) 4048962549904

      Documents for Downloading

      • Technical documents
      Load table DDF
      pdf,
      Load table for Dot and Dab Fixing DDF
