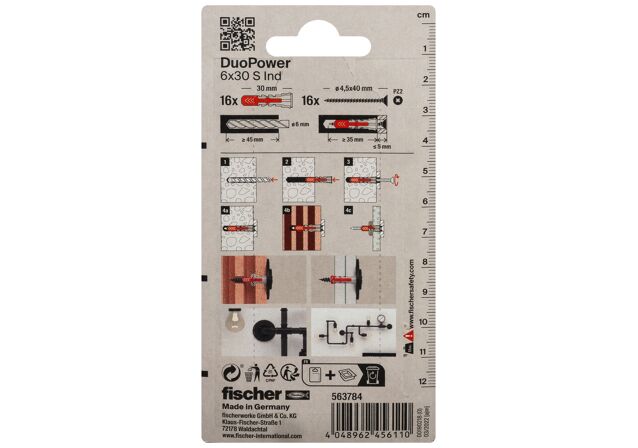

  • Packaging: "fischer DuoPower 6 x 30 with black coated screws (Industry Design)"
  • Packaging: "fischer DuoPower 6 x 30 with black coated screws (Industry Design)"
  • Application Picture
  • Application Picture
  • Application Picture
  • Youtube VideoYoutube VideoYoutube Video
    • Youtube VideoYoutube VideoYoutube Video
    • Product Picture
    • Packaging
    • Packaging
    • Application Picture
    • Application Picture
    • Application Picture
      Art.-No. 563784

      fischer DuoPower 6 x 30 with black coated screws (Industry Design)

      Product Variant
      Download of image data
      Top Features
      • Combination of two material components for more performance.
      • Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting).
      • Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole.
      • Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly.
      • With the appropriate black coated screw for special applications in industry design.

      Your advantages / Product description

      The Duo of power and intelligence
      Advantages
      • Two component materials for top load values and intelligent functioning depending on the substrate.
      • Great feedback (feel-good factor) of the plug. You can feel exactly when the plug is installed perfectly.
      • The narrow plug rim prevents slipping into the drill hole.
      • The serrated anti-rotation feature prevents rotation in the drill hole during installation.
      The fischer DuoPower is an intelligent 2-component plug with three product functions. The intelligent universal plug is suitable for fixing in all building materials. This allows a variety of applications with just one plug. The fischer DuoPower adjusts itself automatically to the building material and transfers the highest loads through the three product functions of folding, expanding and knotting. The very good feedback from the plug when screwing the screw in generates extra security. The fischer DuoPower 6 x 50, 8 x 65 and 10 x 80, because of the larger anchorage depth, are particularly suitable for fixings in hollow building materials, aerated concrete and for bridge plaster.
      Youtube VideoYoutube VideoYoutube Video

      Application and approval

      Applications
      • Light shelves
      • Light mirror cabinets
      • Curtain rails
      • Hanging baskets
      • Electrical installations
      • Wall clocks
      Building materials
      • Concrete
      • Solid brick
      • Solid sand-lime brick
      • Aerated concrete
      • Vertically perforated brick
      • Perforated sand-lime brick
      • Plasterboard
      • Hollow blocks made from lightweight concrete
      • Cavity floor slabs made from bricks and concrete or similar
      • Natural stone
      • Solid brick made from lightweight concrete
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • The DuoPower is suitable for pre-positioned and push-through installation.
      • The red expansion wings support the safe expansion and offer additional safety for the grey component.
      • The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads.
      • The required screw length is given by the plug length + fixture thickness + 1x the screw diameter.
      • Suitable for wood and chipboard screws, as well as stud screws.
      • In the case of fixing boards, the threadless part of the screw must not be longer than the fixture.

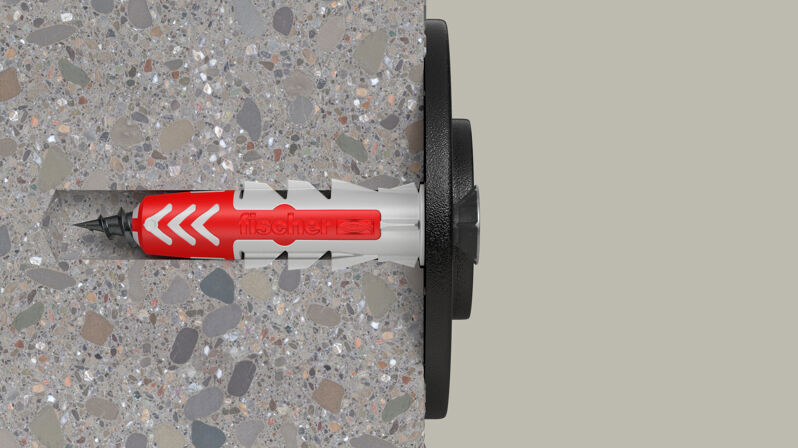

      Installation in solid building materials
      1 / 4
      • 1
        Installation in solid building materials
      • 2
      • 3
      • 4

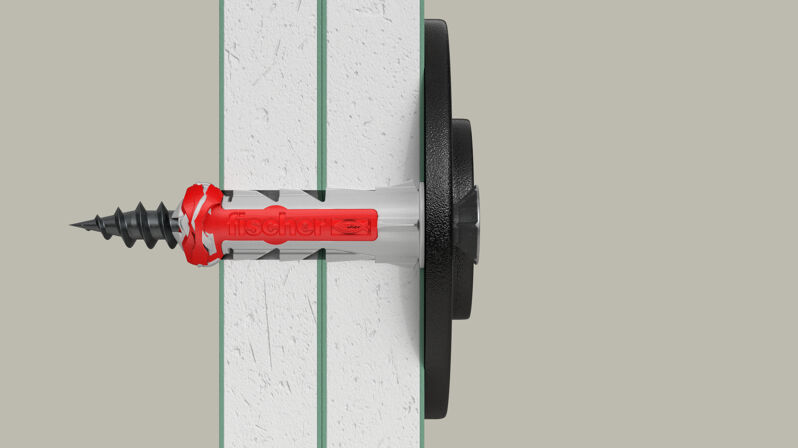

      Installation in panel building materials
      1 / 5
      • 1
        Installation in panel building materials
      • 2
      • 3
      • 4
      • 5
      Installation in hollow building materials
      1 / 4
      • 1
        Installation in hollow building materials
      • 2
      • 3
      • 4

      Technical Data

      Drill diameter (
      d0
      )      		6 mm
      Min. drill hole depth (
      h1
      )      		45 mm
      Min. panel thickness (
      dp
      )      		12,5 mm
      Anchor length (
      l
      )      		30 mm
      Min. bolt penetration (
      lE,min
      )      		35 mm
      Wood and chipboard screws (
      ds
      )      		4.5 x 40 mm
      Contents 16 x DuoPower 6 x 30
      16 x Chipboard screw 4.5 x 40 black coated
      Amount 16 pcs.
      Packaging Blister card
      GTIN (EAN-Code) 4048962456110

      Documents for Downloading

      • Technical documents
      • Sales materials
      Load Table
      pdf,
      DuoPower - Recommended loads for a single anchor.
