Art.-No. 567898

fischer Profi-Box SX Plus Green + Screws A2

Name: fischer Profi-Box SX Plus Green + Screws A2
Brand: fischer

Product Variant

Download of image data

Top Features

Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
With the appropriate screw for maximum hold.
Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.

Long-lasting plug and screw assortment.

Advantages

The SX Plus Green is produced with at least 50% renewable raw materials and therefore particularly environmentally friendly.
The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows.
The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation.

The Master-Box is made from high-quality, impact-resistant plastic and is ideal for workshops and construction sites. The transparent lid gives an overview of the contents at a glance. The fischer Master-Box can be securely closed and can also be refilled with plugs.The fischer SX Plus expansion plug is the specialist for solid building materials such as concrete, sand-lime brick and masonry thanks to its 4-way expansion. The special fixing wings ensure that the screw is pre-fixed so that it does not have to be additionally held in place for overhead applications. This screw fixing allows the user a flexible and convenient setting process.

Applications

Lamps
Wardrobes
Motion detectors
Skirting boards
Light wall shelves
Mirror cabinets
Mailboxes
TV consoles
Trellis
Folding shutters
Fire detector

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Solid stone of leightweight concrete
Hollow block of leightweight concrete
Natural stone
Hollow brick & concrete ceilings
Solid gypsum boards

You can find detailed information on building materials in the approval document.

Functionality

The SX Plus Green is suitable for pre-positioned and push-through installation.
When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
When the screw is tightened, the SX Plus Green expands in four directions and thus anchors itself securely in the building material.
The anti-rotation lock prevents the plug from twisting and allows for easy installation.
Suitable for wood and chipboard screws, as well as stud screws.
The required screw length is given by the plug length + fixture thickness + the screw diameter.

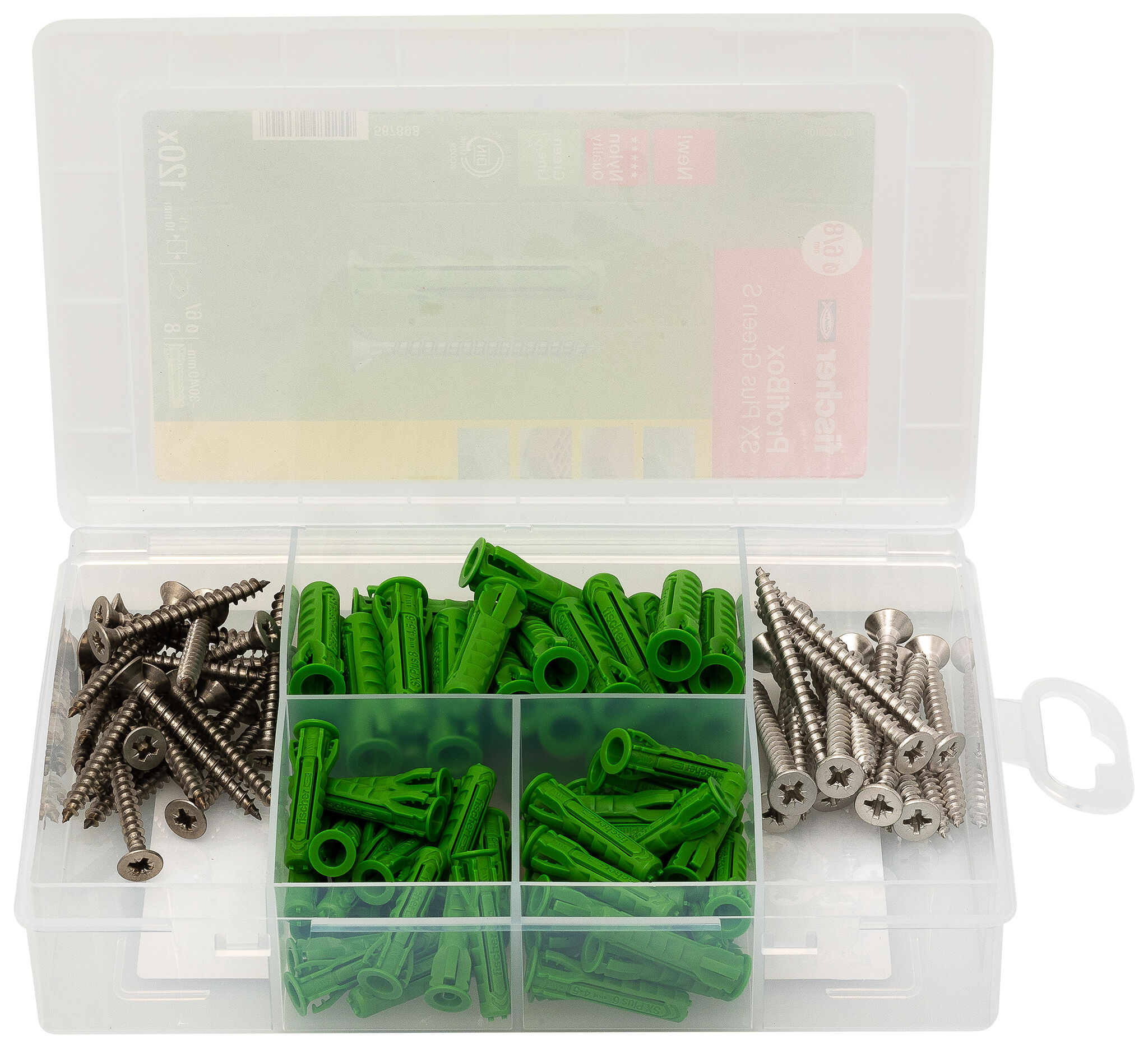

Contents	50 x Expansion plug SX Plus Green 6 x 30 30 x Expansion plug SX Plus Green 8 x 40 25 x Countersunk head screw 4.5 x 40 PZ 15 x Countersunk head screw 5.0 x 55 PZ
Packaging	Assortment box
Amount	80 pcs.
GTIN (EAN-Code)	4048962482249
