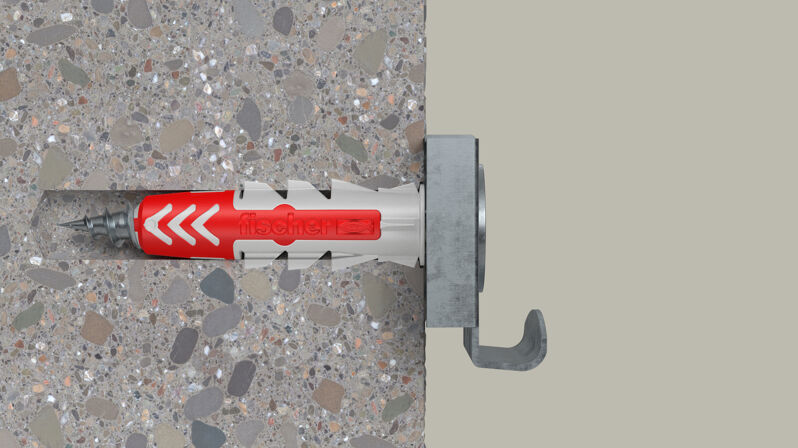

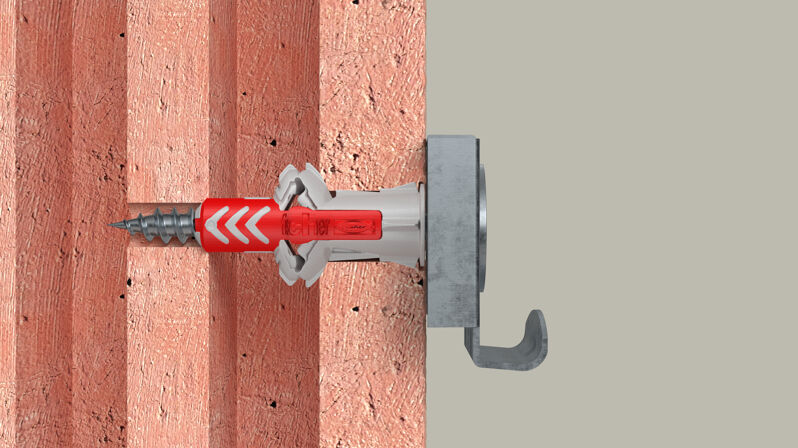

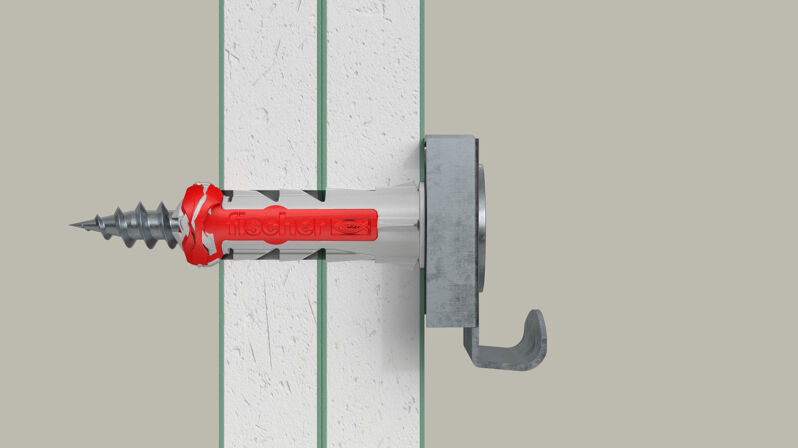

  • Application Picture
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Product Picture
    • Packaging
    • Packaging
    • Application Picture
    • Application Picture
      Art.-No. 45490

      fischer mirror fixing SKL M K SB-card

      Product Variant
      Download of image data
      Top Features
      • Installation-friendly nylon plug with 2-way expansion.
      • Simple insertion due to the ease of pushing in the plug.
      • The anti-rotation lock prevents rotation in the drill hole. This guarantees a high degree of safety during installation.

      Your advantages / Product description

      Complete set for mirror fixing.
      Advantages
      • Installation-friendly nylon plug with 2-way expansion.
      • No over-rotation in the drill hole. This way the plug is securely set.
      • Complete with uptake for mirror.
      The fischer mirror fixing SKL is a kit consisting of 4 x DuoPower 6 x 30, 4 screws Ø 4,5 x 40, 2 x mirror holders with spring and 2 x mirror holders without spring. The plastic fixing is solely made of high-quality nylon. This means that the plug is particularly robust during installation and ensures permanent safety. The pre-sorted kit is therefore ideally suited to fitting mirrors.

      Application and approval

      Applications
      • Fixing mirrors
      Building materials
      • Concrete
      • Solid brick
      • Perforated sand-lime brick
      • Solid sand-lime brick
      • Aerated concrete
      • Vertically perforated brick
      • Plasterboard
      • Gypsum plasterboard and gypsum fibreboards
      • Hollow blocks made from lightweight concrete
      • Cavity floor slabs made from bricks and concrete or similar
      • Natural stone
      • Chipboard
      • Solid panel made from gypsum
      • Solid brick made from lightweight concrete
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • The Duo, made from two materials and with multiple product functions (folding, expansion, knotting) allows the range of applications to be increased in additional building materials with maximum loads.
      1 / 8
      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8

      Technical Data

      Drill diameter (
      d0
      )      		6 mm
      Anchor length (
      l
      )      		30 mm
      Min. drill hole depth (
      h1
      )      		45 mm
      Min. effect. anchorage depth (
      hef
      )      		30 mm
      Screw diameter (
      ds
      )      		4.5 mm
      Screw length (
      ls
      )      		40 mm
      Contents 4 x DuoPower 6 x 30
      4 x Cross drive PZ screw 4.5 x 40
      2 x Mirror holder with spring
      2 x Mirror holder without spring
      Packaging Blister card
      Amount 4 pcs.
      GTIN (EAN-Code) 8590369454900
