Bolt anchor FAZ II Plus
  • Product Picture: "fischer bolt anchor FAZ II Plus 10/20 bucket"
  • Product Picture: "fischer bolt anchor FAZ II Plus 10/20 bucket"
  • Product Picture: "fischer bolt anchor FAZ II Plus 10/20 bucket"

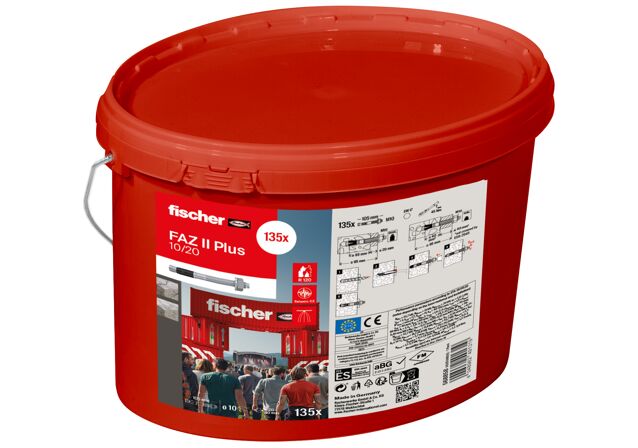

  • Packaging: "fischer bolt anchor FAZ II Plus 10/20 bucket"
  • Application Picture
  • Application Picture
  • Application Picture
  • Youtube VideoYoutube VideoYoutube Video
    • Youtube VideoYoutube VideoYoutube Video
    • Product Picture
    • Product Picture
    • Product Picture
    • Packaging
    • Application Picture
    • Application Picture
    • Application Picture
      Art.-No. 568858

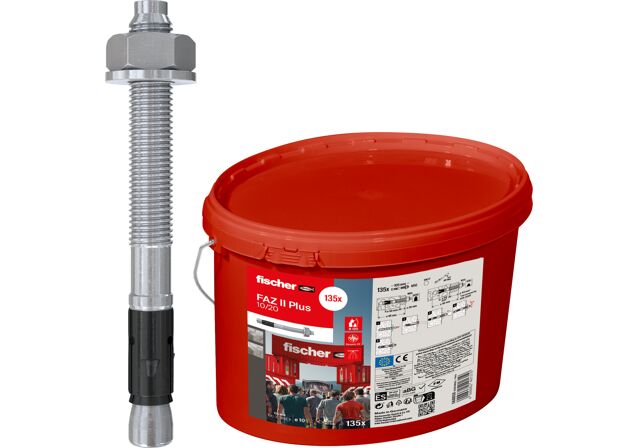

      fischer bolt anchor FAZ II Plus 10/20 bucket

      Product Variant
      CAD Data
      Download of image data
      Top Features
      • Quick and easy assembly without the need for drill hole cleaning (M8-M24).
      • Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs.
      • Highest durability over a service life of 120 years is confirmed by the external test certificate of the FAZ II Plus (M10-M16).
      • Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.
      • Millimeter accurate adjustment to the loads due to the variable anchoring depths.

      Your advantages / Product description

      For highest demands. Powerful and flexible.
      Advantages
      • Quick and easier assembly without the need for drill hole cleaning (M8-M24).
      • Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
      • With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
      • The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
      • An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16).
      • The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.
      • The variable anchorage depths allow a millimetre-accurate adjustment to the loads.
      The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
      Youtube VideoYoutube VideoYoutube Video

      Application and approval

      Applications
      • Steel constructions
      • Guard rails
      • Consoles
      • Ladders
      • Cable trays
      • Machines
      • Staircases
      • Façades
      • Timber constructions
      Building materials
      Approved for:
      • Concrete C20/25 to C50/60, cracked and non-cracked
      Also suitable for:
      • Concrete C12/15 (classification available)
      • Concrete C80/95 (classification available)
      • Steel fiber concrete (classification available)
      • Solid sand-lime brick (classification available)
      You can find detailed information on building materials in the approval document.
      Approval
      • ETA-19/0520
      • DoP No. 0334
      • 3023222
      • ESR-2948
      • BZS D 23-607

      Assembly instruction

      Functionality
      • The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.
      • When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
      • The anchor is set in line with the approval once the preset installation torque is achieved.
      • In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
      • In case of seismic demands, the annular gap can be filled using the filling disc FFD.
      Push-through installation with hexagon nut
      1 / 5
      • 1
        Push-through installation with hexagon nut
      • 2
      • 3
      • 4
      • 5
      Without borehole cleaning
      1 / 6
      • 1
        Without borehole cleaning
      • 2
      • 3
      • 4
      • 5
      • 6
      Push-through installation of the cup nut version with setting gauge
      1 / 8
      • 1
        Push-through installation of the cup nut version with setting gauge
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8

      Technical Data

      ETA-approval
      ICC-approval
      Seismic-Approval C1 / C2
      Drill diameter (
      d0
      )      		10 mm
      Min. drill hole depth for through fixings (
      h2
      )      		95 mm
      Max. usable length hef,stand./hef,min. (
      tfix
      )      		20 / 40 mm
      Anchor length (
      l
      )      		105 mm
      Thread (
      ø x length
      )      		M10 x 63 mm
      Width across nut 17 mm
      Installation torque (
      Tinst
      )      		45 Nm

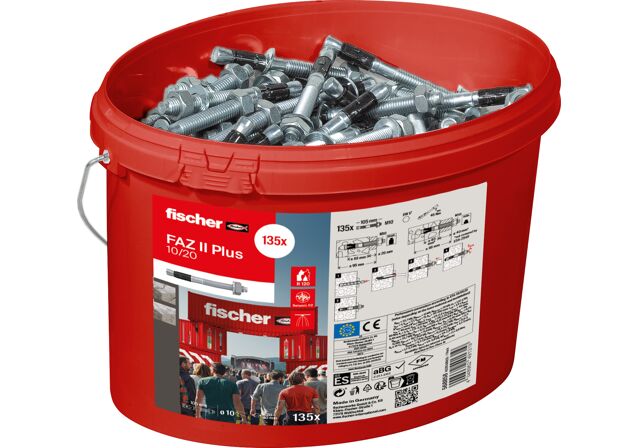

      Contents 135 x FAZ II Plus 10/20
      Packaging Bucket
      Amount 135 pcs.
      GTIN (EAN-Code) 4048962491319

      Documents for Downloading

      • ETAs and DoPs
      • Approvals and Certificates
      • Technical documents
      • Sales materials
      ETA Certification Document
      pdf, ETA-19/0520
      European Technical Assessment for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR - Mechanical fasteners for use in concrete
      Created on 05/24/2023
      DOP - Declaration of Performance
      pdf, DoP No. 0334
      Declaration of Performance for for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR (Mechanical anchor for use in concrete)
      Created on 05/31/2023
