The economic fixing solution with ETA approval for non-cracked concrete.

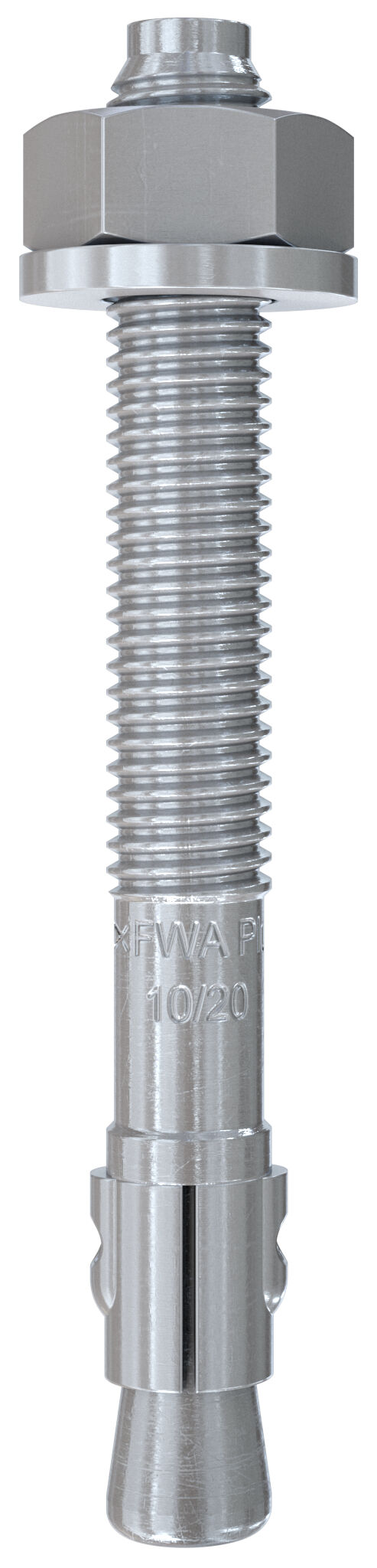

Bolt anchor FWA Plus

The fischer FWA Plus bolt anchor is the economic fixing solution for medium and low loads in non-cracked concrete. The bolt anchor is available in sizes M8 - M16, in galvanised steel and has an ETA approval.
ProduktvarianterDownload of image data

Produktvarianter

Fordelene / Produktbeskrivelse

Advantages
  • The ETA Option 7 for non-cracked concrete ensures a high quality standard.
  • With the standard anchoring depth, the FWA Plus achieves the highest load-bearing capacity. This means fewer fixing points and smaller anchoring plates.
  • The impact pin protects the thread from damage and thus ensures time-saving installation and removal of the attachment.
  • The comprehensive M8 - M16 range in galvanised steel enables a wide range of indoor fastenings.
  • Quick and easy installation is made possible with the help of the FA-ST II setting tool.

Søknad og godkjenning

Applications
  • Steel structures
  • Railings
  • Consoles
  • Ladders
  • Cable trays
  • Staircases
  • Gates
Building materials
Approved for:
  • Concrete C20/25 to C50/60, non-cracked
Du finner detaljert informasjon om byggematerialer i registreringsdokumentet.

Monteringsanvisning

Functionality
  • The FWA Plus is suitable for pre-positioned and push-through installation.
  • When the nut is tightened, the conical bolt is pulled into the expansion clip and braces it against the wall of the drill hole.
  • When the specified torque is reached, the anchor is set in accordance with the approval.
  • For series installation, we recommend using the FABS or FA-ST II bolt anchor setting tools.
Installation FWA Plus push-through installation
