Spacer FNA II

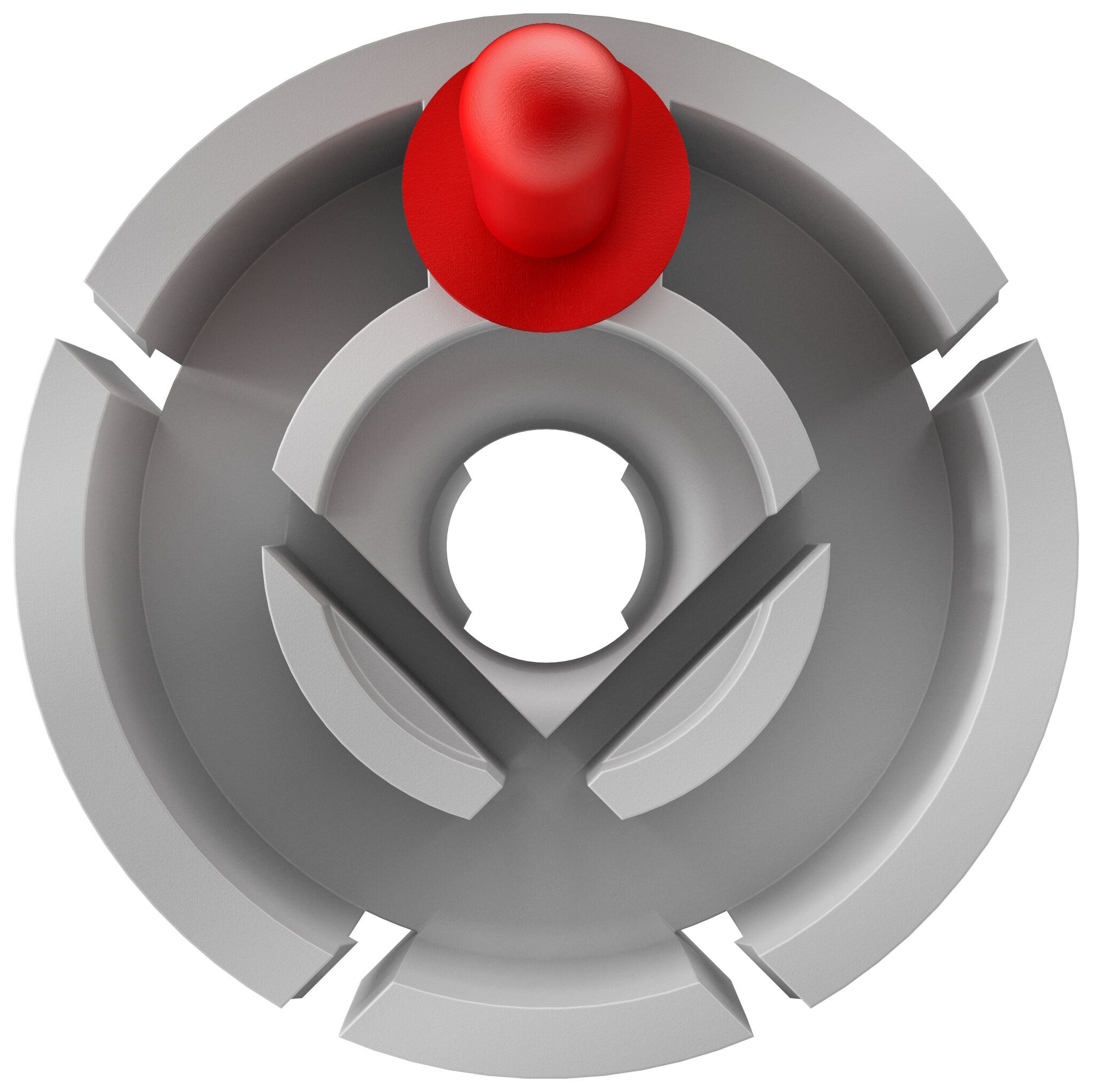

  • Product Picture: "fischer Spacer FNA II 30x22/18"
  • Product Picture: "fischer Spacer FNA II 30x22/18"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Application Picture
      Art.-No. 502724

      fischer Spacer FNA II 30x22/18

      Product Variant
      Download of image data
      Top Features
      • Economical solution for passive fire protection.
      • Low anchoring depth reduces drilling time.
      • Available for different wire and layer dimensions.
      • Optical possibility to control the mortar thickness.

      Your advantages / Product description

      Spacer FNA II for passive fire protection of concrete buildings
      Advantages
      • Economical solution for passive fire protection.
      • Barbs for the pre- mounting of the spacer at the reinforcement mats.
      • Head of the nail anchor fixes the reinforcement mats.
      • Marking pin shows the minimal thickness of the sprayed concrete.
      • Usable for all sprayed solutions (mortar, foam, concrete).
      The fischer spacer FNA II for an economic solution of passive fire protection for concrete buildings. The fixing solution enables the fixing of reinforcement mats for sprayed mortar on concrete walls in tunnels. The guaranteed same distance through the spacer between the reinforcement mat and the wall ensures maximum safety in the passive fire protection. The marking-pin enables the optical control of the sprayed mortar thickness.
      Properties
      • Fiberglass reinforced polyamid-spacer

      Application and approval

      Applications
      • Spacer for the fixing of reinforcement mats for the usage of passive fire protection mortar on concrete walls in tunnels
      • For all sprayed solutions of fire protection (mortar, foam, concrete
      Building materials
      • Concrete
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • Spacer guarantees the distance between the reinforcement mats and the concrete surface and fixes the reinforcement mats.

      Technical Data

      Wire-ø 1.5 mm
      Height A 22 mm
      Height B 20 mm
      Height C 18 mm
      Adapted for FNA II 6/20
      Amount 1.000 pcs.
      GTIN (EAN-Code) 4048962015478
