Heavy-duty anchor TA M

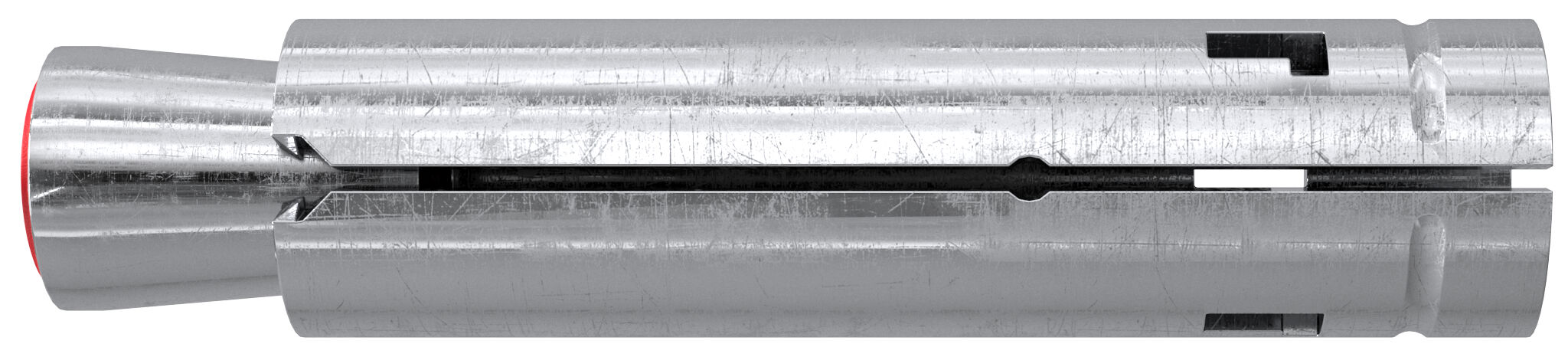

  • Product Picture: "fischer Heavy-duty anchor TA M12 E item pricing"
  • Product Picture: "fischer Heavy-duty anchor TA M12 E item pricing"

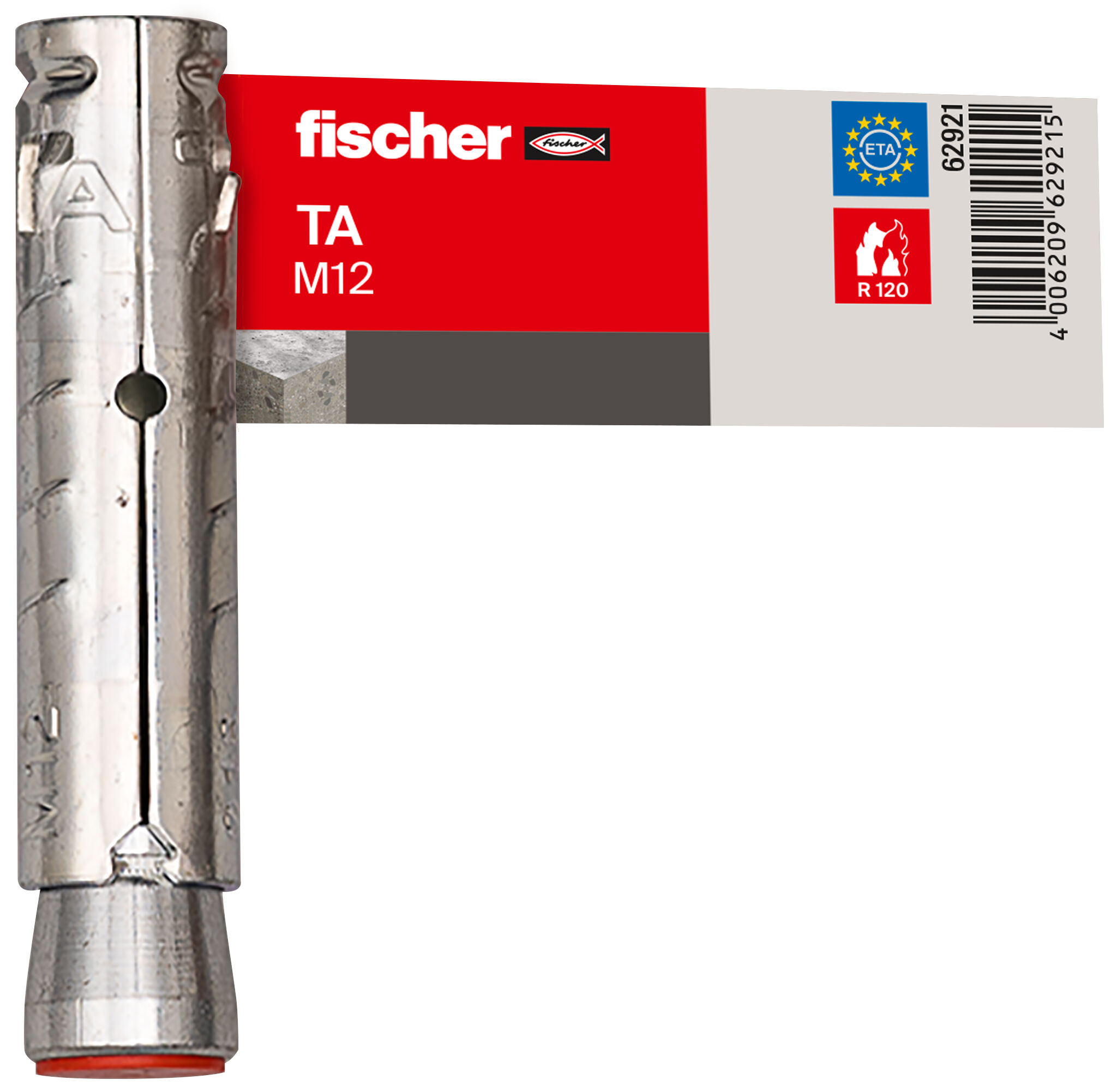

  • Packaging: "fischer Heavy-duty anchor TA M12 E item pricing"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Packaging
    • Application Picture
      Art.-No. 62921

      fischer Heavy-duty anchor TA M12 E item pricing

      Product Variant
      Download of image data
      Top Features
      • Simple assembly due to low setting energy.
      • Low axial and edge distances due to uniform load introduction.
      • Surface flush installation due to detachable screw connections.
      • High flexibility due to using conventional screws and threaded rods.
      • ETA approval for non-cracked concrete.

      Your advantages / Product description

      The installation-friendly internal thread anchor with low axial spacing and small edge distances for fixings in non-cracked concrete.
      Advantages
      • The optimised geometry minimises setting energy and allows for use in extremely narrow spaces. This allows for user-friendly installation.
      • The three-part expansion sleeve creates even load distribution, thus allowing small edge and axial spacing. Thus the TA M is extremely flexible.
      • The metric internal thread allows to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
      • The red plastic cap protects against soiling and thus ensures free-running of the thread.
      The fischer heavy-duty anchor TA M is an internal threaded anchor for pre-positioned installation made of zinc-plated steel. During installation the cone is pulled into the expansion sleeve and expands it against the hole wall. The plastic cover protects the thread from dirt. This ensures that it remains functional. The heavy-duty anchor is ideal for fixing fall protection devices, systems, and machines in non-cracked concrete.

      Application and approval

      Applications
      • Steel constructions
      • Handrails
      • Consoles
      • Ladders
      • Cable trays
      • Machines
      • Staircases
      • Gates
      • Façades
      • Stand-off installations
      Building materials
      Approved for:
      • Concrete C20/25 to C50/60, non-cracked
      Also suitable for:
      • Concrete C12/15
      • Natural stone with dense structure
      You can find detailed information on building materials in the approval document.

      Assembly instruction

      Functionality
      • The TAM is suitable for pre-positioned installation.
      • When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
      • For correct installation, it must be ensured that the pre-positioned anchor TA M can be supported on the attachment, or that the threaded rod is countered.
      Installation TA M
      1 / 6
      • 1
        Installation TA M
      • 2
      • 3
      • 4
      • 5
      • 6

      Technical Data

      Drill diameter (
      d0
      )      		18 mm
      Packaging without
      Amount 1 pcs.
      GTIN (EAN-Code) 4006209629215

      Documents for Downloading

      • Technical documents
      Load Table
      pdf,
      Heavy-duty anchor TA M - Permissible loads of a single anchor in normal concrete of strength class C20/25.
