      The anchoring system for extreme safety and load requirements.

      Strong Undercut Anchor FSU-P

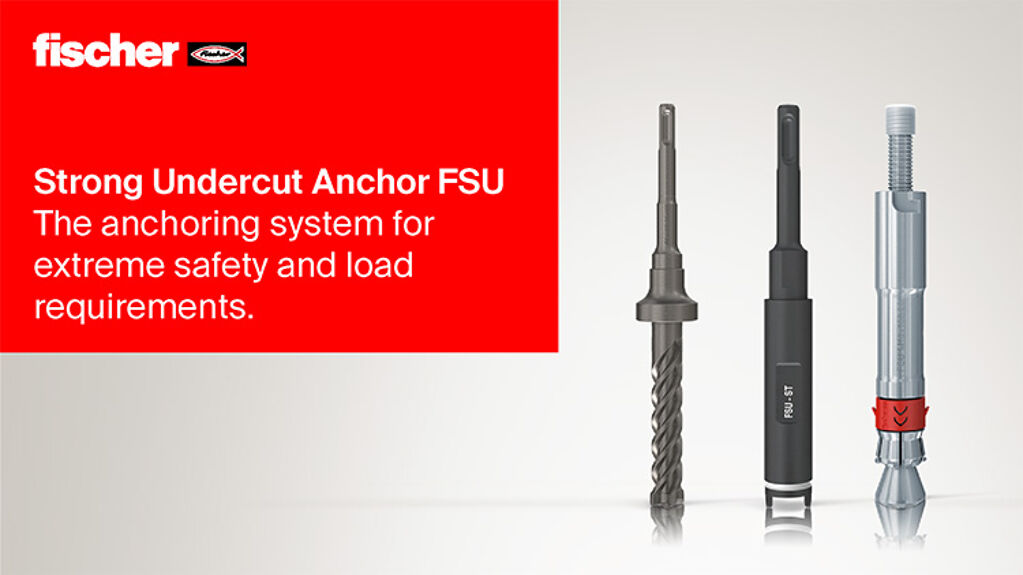

      The fischer strong undercut anchor FSU-P is a self-cutting undercut anchor made of galvanised and stainless steel for applications where highest loads and safety are required (e.g. heavy steel plant construction, nuclear power plants, oil & gas industry). The undercut anchor is ideal for heavy duty fixings to anchor steel structures, heavy piping and industrial machinery indoors and outdoors in cracked and non-cracked concrete. The FSU-P is set in push-through installation with the FSU-ST setting tool in a drilled hole created with the stop drill FSU-SD. The anchor cuts itself the undercut, creating a positive connection. This ensures maximum safety even with large crack widths in seismic areas. With the disassembly tool FSU-DT, the anchor can be removed quickly and completely.
      Download of image data

      Required drill bit FSU-SD
      Required setting tool
      Drill diameter
      Drill hole diameter in fixture
      Anchor length
      Max. fixture thickness
      = — =

      Advantages
      • The perfect form fit in the undercut guarantees the absorption of high loads (head bolt theory) for applications with the highest level of safety.
      • Six robust cutting teeth and the principle of self-undercutting enable precise and powerful setting in the concrete and thus simple and fast installation.
      • The plastic element of the FSU prevents the anchor from falling out of the drill hole and allows easy and safe overhead installation.
      • The low spreading forces of the FSU allow small edge and axial distances and offer maximum flexibility in all applications.
      • The setting depth markings on the anchor and setting tool (FSU-ST) ensure a quick visual installation check and provide additional safety and installation convenience.
      • The DMC (DataMatrix-Code) for unique identification and readout of product data on the anchor offers the possibility for flexible and exact data transparency and storage before and after installation. The code can be scanned using the fischer PRO app.
      • The ETA rating confirms a service life of 100 years. The FSU will last a whole century and is therefore perfect for large, long-lasting construction projects.
      Youtube VideoYoutube VideoYoutube Video

      Applications
      • Heavy duty fixings
      • Steel constructions
      • Pipelines
      • Ventilation ducts
      • Cable trays
      • Industrial machinery
      • Elevator channels
      Building materials
      Approved for:
      • Concrete C20/25 to C50/60, cracked and non.cracked
      • ETA-22/0674
      • DoP No. 0321
      • PR467647
      • BZS D 24-601

      Functionality
      • The FSU-P is suitable for push-trough installation.
      • The anchor is placed with the FSU-ST setting tool in a drilled hole created with the FSU-SD collar drill.
      • The anchor cuts itself the undercut, creating a positive connection.
      • With the disassembly tool FSU-DT, the anchor can be removed quickly and completely.
      Push-through installation FSU-P
      1 / 8
      • 1
        Push-through installation FSU-P
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8

      • ETAs and DoPs
      • Approvals and Certificates
      • Technical documents
      • Sales materials
      ETA Certification Document
      pdf, ETA-22/0674
      European Technical Assessment for fischer Strong Undercut Anchor FSU - Mechanical fastener for use in concrete
      DOP - Declaration of Performance
      pdf, DoP No. 0321
      Declaration of Performance for fischer Strong Undercut Anchor FSU (Mechanical fastener for use in concrete)
