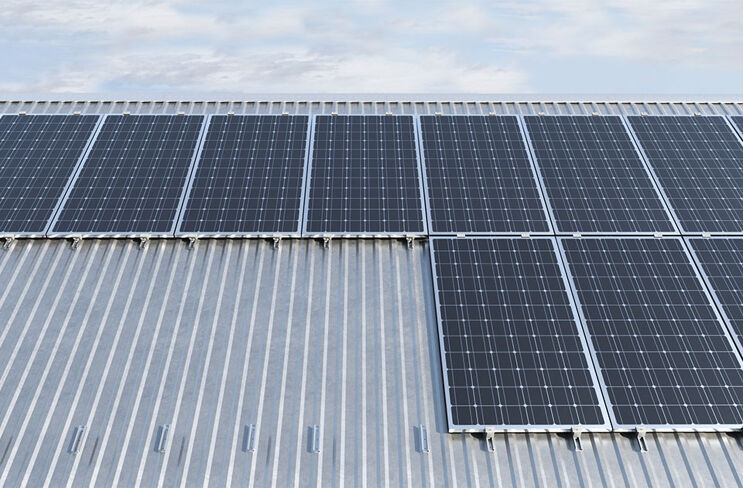

Mounting systems for solar panels on trapezoidal metal sheets pitched roofs

fischer's fastening system for solar panels on trapezoidal metal sheets provides a wide range of products designed for quick installation on residential, commercial and industrial roofs.

Thanks to the versatility offered by fischer's product range, solar panels on this type of roof can be installed with flexibility, whether in parallel or perpendicular alignment to the corrugations of the metal sheets. The application of butyl adhesive tape on the underside of the profile ensures protection against weather conditions and galvanic corrosion.

Explore all the solar mounting systems by fischer.

SolarFlat: mounting solar panels on trapezoidal sheets oriented with the long side parallel to the corrugations

This is an aluminum alloy rail designed for mounting solar panels on corrugated metal sheets with an orientation parallel to the corrugations. The application is quick and convenient; the photovoltaic modules can be swiftly installed using clamps and easy cross-junctions through the upper groove.

Discover the products

SolarMetal: mounting solar panels on trapezoidal sheets oriented with the long side orthogonal to the corrugations

Easy and quick to install, this aluminium rail is available in either rods or pre-perforated sections with EPDM. It allows maximum versatility for the structure regardless of the system's size.

Discover the products

Advantages

SolarFlat rails are available in different lenghts.

SolarMetal rails are already pre-drilled and provided with EPDM layer.

SolarFlat rails are suitable for portrait installations. SolarMetal rails are suitable for landscape installations.

Mounting is quick thanks to the self-drilling screws and rivets.

Discover all the products for this system

1. Rails

High-performance aluminium rails for photovoltaic installations.

2. Clamps

Universal and pre-assembled aluminum terminals for photovoltaic modules of various thicknesses.

Discover more

3. Double thread screws

Double thread screws with sealing gasket, suitable for load-bearing structures in steel, wood or concrete.

4. Accessories

Accessories for the installation of photovoltaic panels.

The new SOLARPANEL-FIX design software

SOLARPANEL-FIX is an Online module of the FiXperience Suite for the design of mounting systems for photovoltaic panels: it supports professionals in the design of the photovoltaic substructure through a clear and logical flow.

The software allows to automatically calculate the actions of snow and wind loads through the geolocation of the construction site, according to the requirements of the European Standard EN 1991 (Eurocode 1). In addition, it allows to download the bill of materials to create the substructure, the installation plan and a technical report. The latter outlines the structural checks of the system parts, according to the European Standards EN 1993 (Eurocode 3), EN 1999 (Eurocode 9) and according to fischer specifications.

Discover more
