Frame fixing DuoXpand with countersunk head screw
  • Product Picture: "fischer Frame fixing DuoXpand 10 x 100 T zinc-plated steel"
  • Packaging: "fischer Frame fixing DuoXpand 10 x 100 T zinc-plated steel"
  • Packaging: "fischer Frame fixing DuoXpand 10 x 100 T zinc-plated steel"
  • Application Picture
  • Application Picture
  • Application Picture
  • Application Picture
  • Application Picture
  • Youtube VideoYoutube VideoYoutube Video
    • Youtube VideoYoutube VideoYoutube Video

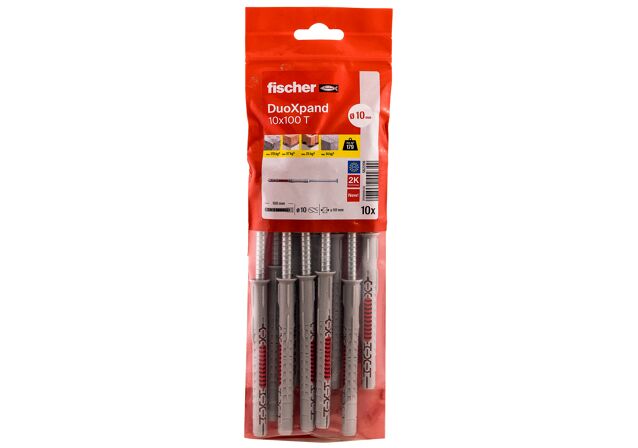

    • Product Picture
    • Packaging
    • Packaging
    • Application Picture
    • Application Picture
    • Application Picture
    • Application Picture
    • Application Picture
      Art.-No. 562206

      fischer Frame fixing DuoXpand 10 x 100 T zinc-plated steel

      Product Variant
      Download of image data
      Top Features
      • Clever combination of design and material for a secure installation in the building material.
      • Expansion element with two anchoring depths for flexible use.
      • Approved multiple fastening of non-load-bearing systems in concrete and masonry.
      • Side ribs prevent rotation in the drill hole for convenient installation.
      • Pre-assembled safety screw with countersunk head.

      Your advantages / Product description

      Anchor with a smart bite
      Advantages
      • The combination of design and material adapts to all building materials and enables universal use.
      • The special lamella geometry expands gently in the respective building material. This avoids fractures in porous building materials and enables anchoring close to the edge.
      • The grey main body made of high-quality nylon provides the strength, while the red material component ensures flexibility and optimal spreading.
      • The European Technical Assessment (ETA-21/0324) for multiple use for non-structural applications ensures secure hold in all building material classes.
      • DuoXpand 10 with lengths 80, 100, 180 and 200 mm is suitable for anchoring under seismic influence in hollow brick masonry (ETA-22/0186).
      • The pre-mounted safety screw is perfectly matched to the plug and ensures time savings during installation.
      The fischer frame fixing DuoXpand with two anchoring depths is approved with the fischer countersunk screw for multiple fixings of non-load-bearing systems in concrete, masonry and aerated concrete. Thanks to its special geometry and the material combination, the anchor expands optimally in the respective building material. The range includes diameters 8 and 10 and anchor lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing timber to concrete or masonry.
      Youtube VideoYoutube VideoYoutube Video

      Application and approval

      Applications
      • Facade, ceiling and roof substructures made of wood and metal
      • Windows
      • Gates and doors
      • Wardrobes
      • Kitchen hanging cabinets
      • Squared timbers
      • Beams
      • TV consoles
      • Wall covering
      • Metal brackets
      • Metal supports
      • Cable ducts
      • Cable trays
      Building materials
      Approved for:
      • Concrete ≥ C12/15
      • Solid brick
      • Solid sand-lime brick
      • Solid block made from lightweight and normal weigth concrete
      • Vertically perforated bricks
      • Perforated sand-lime brick
      • Hollow blocks made from lightweight concrete
      • Aerated concrete
        Also suitable for:
        • Natural stone with dense structure
        • Solid panel made from gypsum
        You can find detailed information on building materials in the approval document.
        Approval
        • ETA-21/0324
        • ETA-22/0186
        • DoP No. 0347
        • REPORT NO.: 21-010-3 (1)

        Assembly instruction

        Functionality
        • The DuoXpand is suitable for push-through installation.
        • In solid building materials, the product design guarantees equal load distribution into the substrate.
        • In perforated brickwork, the lamellas expand at the stone web and form an undercut in the cavity. The anchor geometry ensures that the force is transferred evenly to the material, so that porous stone webs are not destroyed.
        • Particularly suitable for fixing wood to concrete or masonry.
        1 / 5
        • 1
        • 2
        • 3
        • 4
        • 5

        Technical Data

        ETA-approval
        Drill diameter (
        d0
        )        		10 mm
        Min. drill hole depth for through fixings (
        h2
        )        		110 mm
        Usable length at anchorage depth 50 mm (
        tfix
        )        		50 mm
        Usable length at anchorage depth 70 mm (
        tfix
        )        		30 mm
        Anchor length (
        l
        )        		100 mm
        Drive TX40
        Contents 10 x Frame fixing DuoXpand 10 x 100 T
        Packaging Polybag
        Amount 10 pcs.
        GTIN (EAN-Code) 4048962442342
